A lot goes into every Goodman® brand air handler and blower motor Goodman® air handlers with all aluminum evaporator coils simply work the way they're supposed to, making each one a thing of beauty. Goodman® air handlers and coils have features designed to provide outstanding performance. We use advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy efficient trend you'll love for many years. Our complete line of air handlers and coils are priced reasonably and affordably from your local independent dealer and that's only the beginning. We want you to smile every time you open your utility bill, so we design into our units proven efficient technology.

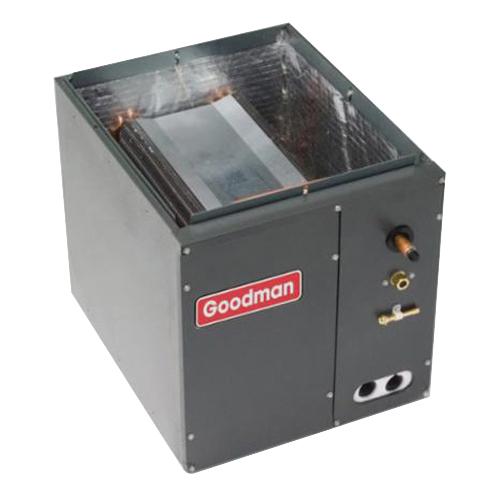

Goodman® Cased Evaporator Coil, Series: CAPF Series, 13 SEER, 2.5 to 3 ton, R-22, R-410A, 3/8 in, 3/4 in, Aluminum, 30 in H x 17-1/2 in W x 21 in D

• Aluminum tube and aluminum fin coil construction
• Grooved aluminum tubing
• Every unit is helium pressure tested during construction
• Every all aluminum coil is pressure tested and vacuum tested
• All aluminum evaporator coils
• Check flowrator for cooling and heat pump applications
• 21 in D for easier attic access
• Split seam front for easy access
• Foil faced insulation covers the internal casing to reduce cabinet condensation
• Rust-resistant, thermoplastic drain pans featuring a low water retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• UV-resistant drain pan
• Note - do not use these coils on oil furnaces or any applications where the temperature on the drain pan may exceed 300 deg F
• These coils are applied with an oil furnace or another application where high-temperatures threaten or jeopardize the durability of the drain pan, you must replace the factory installed drain pan with a high-temperature drain pan
• Painted cabinet
• Fits 17-1/2 in furnace cabinet
