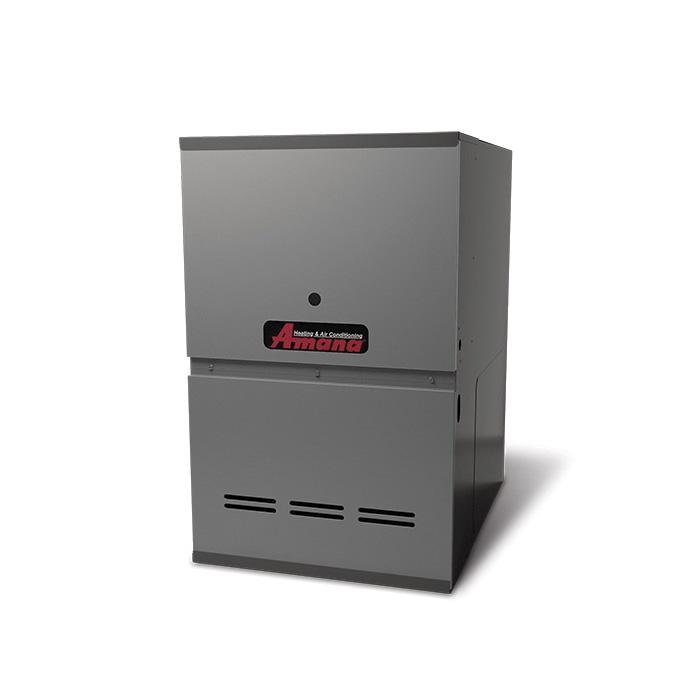

Amana® ACVC800603BX Gas Furnace, 60000 Btu/hr Input BTU, 115 VAC, 1200 cfm, 1/2 hp, 80 % AFUE, Low NOx Fuel
- Item ID: ACVC800603BX
- Min. Order Qty: 1
- Item ID: ACVC800603BX
- Brand: Amana®
-
-
Amana® Gas Furnace, Model: ACVC8, 60000 Btu/hr Input BTU Rating, 115 VAC, 7.75 to 15 A, 1200 cfm Rating, 1/2 hp, 80 % AFUE Rating, 1 ph, 60 Hz, 2 Stages, Downflow, Horizontal, FNPT Connection, 1/2 in Connection, Low NOx Fuel, 3 Burners, 8 in W x 10 in D Blower, 33-3/8 in H x 17-1/2 in W x 28 in D Cabinet Dimensions, Variable Speed ECM Motor, Vent, Ducted or Ductless, 4 in Dia Vent, 3 ton, Ignition System: Silicon Nitride, Steel, Durable Baked Enamel, 25 to 55 deg F, 40 to 70 deg F Temperature Rise
- Integrated communicating ComfortBridge™ technology
- Quiet comfort
- Energy efficiency
- The CoolCloud™ HVAC app - enables qualified technicians to connect, configure and diagnose select HVAC systems quickly and accurately
- Stainless steel tubular primary heat exchanger
- Two-stage gas valve
- Self-diagnostic control board
- Continuous air circulation
- Heavy gauge steel cabinet with powder paint finish
- Corrosion-resistant vent variable speed blower
- Thermally insulated cabinet
| AFUE Rating | : | 80 % |
| AFUE | : | 80 % |
| Amperage Rating | : | 7.75 to 15 A |
| Blower Size | : | 8 in W x 10 in D |
| CFM Rating | : | 1200 cfm |
| Cabinet Dimensions | : | 33-3/8 in H x 17-1/2 in W x 28 in D |
| Communications Type | : | ComfortBridge Technology compatible |
| Configuration | : | Downflow, Horizontal |
| Connection Size | : | 1/2 in |
| Connection Type | : | FNPT |
| Dimensions | : | 28 in D x 17-1/2 in W x 33.3 in H |
| Energy Star Compliant | : | No |
| Finish | : | Durable Baked Enamel |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Low NOx |
| HP Rating | : | 1/2 hp |
| Ignition System | : | Silicon Nitride |
| Input BTU Rating | : | 60000 Btu/hr |
| Installation Type | : | Ducted |
| Material | : | Steel |
| Model | : | ACVC8 |
| Motor Type | : | Variable Speed ECM |
| Number of Burners | : | 3 |
| Number of Speeds | : | Variable Speed ECM |
| Number of Stages | : | 2 |
| Phase | : | 1 ph |
| Temperature Rise | : | 25 to 55 deg F, 40 to 70 deg F |
| Tonnage | : | 3 ton |
| Vent Size | : | 4 in Dia |
| Vent, Ducted or Ductless | : | Vent |
| Voltage Rating | : | 115 VAC |
| Weight | : | 105 lb |
