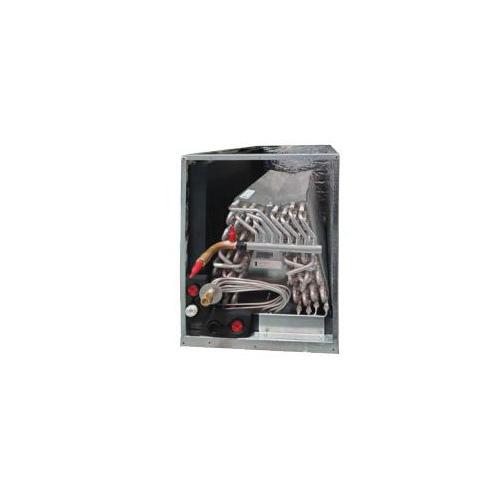

Aspen DE Series DE60B DE60B44-210R-402 Evaporator Coil, Cased Coil, 5 ton, Aluminum
- Item ID: DE60B44-210R-402
- Min. Order Qty: 1
- Item ID: DE60B44-210R-402
- Brand: Aspen
-
-
Aspen Evaporator Coil, Series: DE Series, Model: DE60B, Multi-Position, 5 ton, R-410A, Cased Coil, 0.089 in Piston Size, 500 psi, Aluminum, Embossed/Galvanized, 30 in H x 24-1/2 in W x 21-1/2 in D
- Rifled aluminum tubing, enhanced aluminum fins
- Air pressure tested at 500 psi, leak tested with helium, then sealed and nitrogen pressurized
- Left or right hand refrigerant and plumbing connections
- Externally mounted flow rater body with Schrader® valve for hiss-testing
- Heavy-duty plastic or metal drain pans
- Embossed galvanized cabinets standard, cabinet feature furnace connectors
- Upflow without field modification, downflow application require field kit, included
- Split access doors in front of cabinet for east service access
- Fully insulated foil faced insulation
- Thermostatic expansion valve
| Cabinet Configuration | : | C |
| Coil Type | : | Cased |
| Configuration | : | Multi-Position |
| Dimensions | : | 30 in H x 24-1/2 in W x 21-1/2 in D |
| Expansion Type | : | TXV |
| Finish | : | Embossed/Galvanized |
| Item Name | : | DE |
| Material | : | Aluminum |
| Model | : | DE60B |
| Piston Size | : | 0.089 in |
| Pressure Rating | : | 500 psi |
| Refrigerant Type | : | R-410A |
| Series | : | DE Series |
| Tonnage | : | 5 ton |
| Type | : | A COIL |
Aspen DE60B44-210R-402
