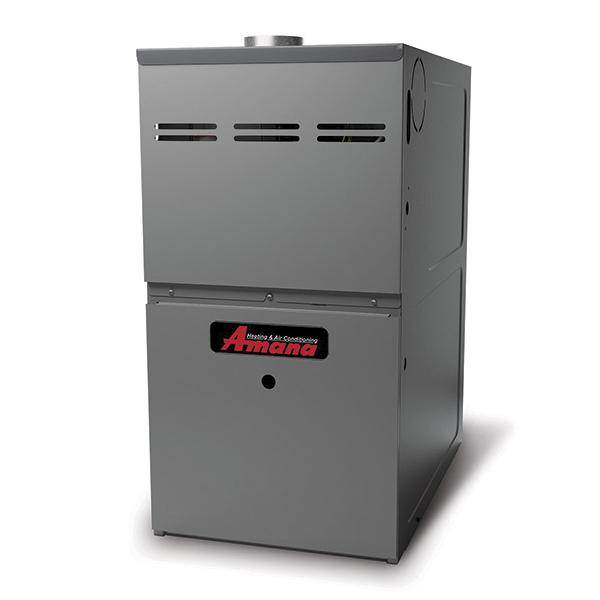

Amana® AMVC800805CN Gas Furnace, 80000 Btu/hr Input BTU, 115 VAC, 2000 cfm, 3/4 hp, 80 % AFUE, Upflow, Horizontal
- Item ID: AMVC800805CN
- Min. Order Qty: 1
- Item ID: AMVC800805CN
- Brand: Amana®
-
-
Amana® Gas Furnace, Model: ACVC80, 80000 Btu/hr Input BTU Rating, 64000 Btu/hr Output BTU Rating, 115 VAC, 10.6 A, 2000 cfm Rating, 3/4 hp, 80 % AFUE Rating, 1 ph, 60 Hz, 2 Stages, Upflow, Horizontal, FNPT Connection, 1/2 in Connection, Natural Gas, LPG Fuel, 4 Burners, 10 in Dia x 10 in W Blower, 33-3/8 in H x 21 in W x 28 in D Cabinet Dimensions, ECM Motor, Vent, Ducted or Ductless, 4 in Dia Vent, 15 A Fuse Rating, 40 VA Transformer Rating, Ignition System: SureStart®, Silicon Nitride Ignition, Steel, 20 to 50 deg F Temperature Rise
- Integrated communicating ComfortBridge™ technology
- Two stage gas valve provides quiet, economical heating
- Commissioning and diagnostics via on board Bluetooth® with the CoolCloud™ phone and tablet application
- Efficient and quiet variable speed ECM circulator motor gently ramps up or down according to heating or cooling demand
- SureStart® silicon nitride igniter designed for long igniter life
- Self-diagnostic control board with constant memory fault code history output to a triple 7-segment display
- Low constant fan speed circulates air throughout the home
- Quiet, two-speed induced draft blower
| AFUE Rating | : | 80 % |
| AFUE | : | 80 % |
| Amperage Rating | : | 10.6 A |
| Blower Size | : | 10 in Dia x 10 in W |
| CFM Rating | : | 2000 cfm |
| Cabinet Dimensions | : | 33-3/8 in H x 21 in W x 28 in D |
| Communications Type | : | ComfortBridge Technology compatible |
| Configuration | : | Upflow, Horizontal |
| Connection Size | : | 1/2 in |
| Connection Type | : | FNPT |
| Dimensions | : | 28 in D x 21 in W x 33.3 in H |
| Energy Star Compliant | : | No |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas, LPG |
| Fuse Rating | : | 15 A |
| HP Rating | : | 3/4 hp |
| Ignition System | : | SureStart® |
| Ignition Type | : | Silicon Nitride |
| Input BTU Rating | : | 80000 Btu/hr |
| Installation Type | : | Ducted |
| Material | : | Steel |
| Model | : | ACVC80 |
| Motor Type | : | ECM |
| Number of Burners | : | 4 |
| Number of Speeds | : | Variable Speed ECM |
| Number of Stages | : | 2 |
| Output BTU Rating | : | 64000 Btu/hr |
| Phase | : | 1 ph |
| Temperature Rise | : | 20 to 50 deg F |
| Transformer Rating | : | 40 VA |
| Vent Size | : | 4 in Dia |
| Vent, Ducted or Ductless | : | Vent |
| Voltage Rating | : | 115 VAC |
| Weight | : | 121 lb |
Amana® AMVC800805CN
