Mars® 10860 10859 | Standard Supply

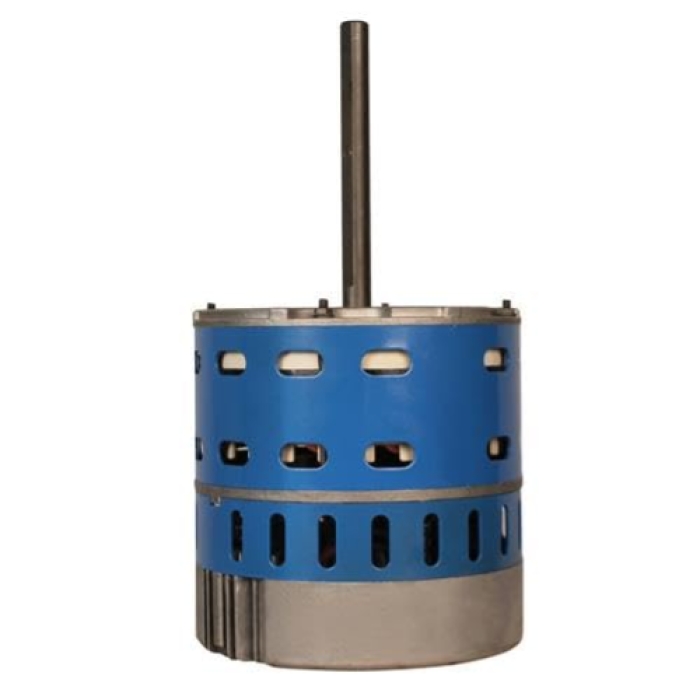

Azure 1/2-1Hp Ecm Motor

Mars® 10860 10859
  • Item ID: 10859
  • Min. Order Qty: 1
  • Item ID: 10859
  • Brand: Mars®
  • loading

Azure 1/2-1Hp Ecm Motor

  • Bluetooth Control -Free app (AZURE ECM) with Intuitive Drop down menus
  • Azure connects directly to OEM harnesses; additional module or adapter is included
  • The app allows optimization of airflow even if ductwork is not optimal
  • 4 speeds plus 625 RPM constant fan mode
  • High efficiency 85%
  • Replaces A LOT of motors and Saves time and money!
  • Any FER 2019 OEM Constant Torque Motor, Genteq®X13®, Eduardo, Ensite®, Evergreen®, US Motors®SelecTech®, EZ13®, Broad Ocean Digi-Motor
Additional Information      :      Replaces X13, Ensite, Endura
Bearing Type      :      Ball
Drive Type      :      Direct
Duty Type      :      Continuous
Efficiency      :      85%
Frame Size      :      48
Frequency Rating      :      60/50
HP Rating      :      1 hp
Insulation Class      :      B
Motor Enclosure Type      :      Open Air Over
Mounting Type      :      Belly Band
Number of Speeds      :      5
Phase      :      1 ph
Rotation Type      :      REV+FWD
Shaft Size      :      1.5 in Diameter and 4.94" Length
Temperature Rating      :      55 deg C
Voltage Rating      :      120/240 VAC

No documents

Mars® 10860
