Aprilaire® 1410TQ Air Cleaner, 6-3/4 in W, 17-3/4 in H, 30-1/16 in D, Up to 2000 cfm Air Flow, 92 % Filter Efficiency

  • Item ID: 1410TQ
  • Min. Order Qty: 1
  • Item ID: 1410TQ
  • Brand: Aprilaire®
  • loading

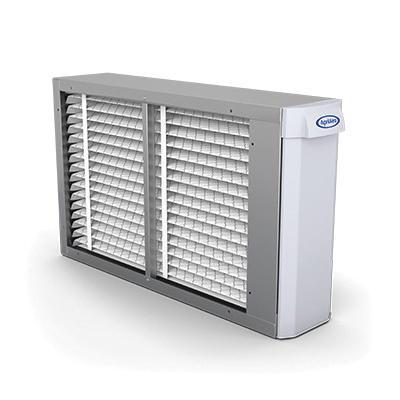

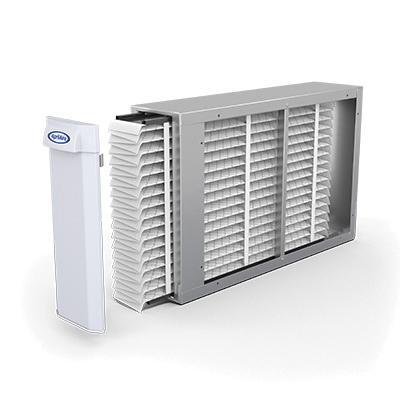

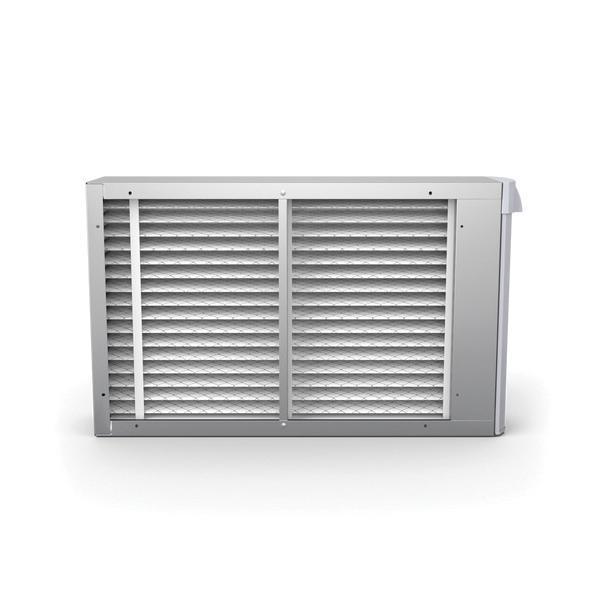

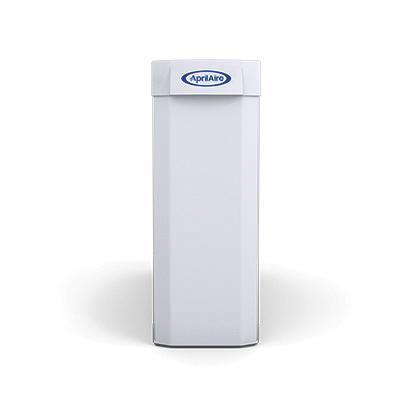

Protect your family and your HVAC system with the Aprilaire® 1410 whole home air purifier. The 1410 features an unpainted steel cabinet and comes with a 410 clean air filter, which will remove more dust and particulate from your living space. This model has a nominal size of 16 x 25 in - one of many sizes available for contractors to install into a wide variety of HVAC systems. Every genuine Aprilaire® air filter is manufactured and sold with our pure fit promise, which guarantees that our filters will fit flawlessly into your Aprilaire® whole home air purifier and deliver purer healthier air.

Aprilaire® Air Cleaner, Series: 1000 Series, 6-3/4 in Width, 17-3/4 in Height, 30-1/16 in Depth, Up to 2000 cfm Air Flow Capacity, 0.27 in-WC Resistance, 92 % Filter Efficiency, 24.5 sq-ft Media Area, 11 MERV, Unpainted Cabinet Finish, 16 x 25 in Nominal, 15-7/16 in H x 23-7/8 in W Opening, Steel Cabinet, 0 to 90 % Differential Humidity, 15-7/16 in H x 23-7/8 in W Outlet Dimensions, Steel, Galvanized, 0 to 140 deg F, Domestic/Import: Domestic

  • Protects your HVAC system and offers superior filtration performance to 1 in filters
  • Comes with 210 clean air filter, which has more than 9X the filtration area found in 1 in filters
  • Guaranteed with our pure fit promise self Seal™ technology, interlocking rails and clean coil commitment
  • Easy to maintain - simply change the air purifier's filter once up to every 12 months
  • Versatile installation - compatible with systems located in basements, attics, closets and more
  • Compatible with the 413 healthy home filter
Air Flow Capacity      :      Up to 2000 cfm
Cabinet Finish      :      Unpainted
Cabinet Material      :      Steel
Depth      :      30-1/16 in
Differential Humidity      :      0 to 90 %
Domestic/Import      :      Domestic
Filter Efficiency      :      92 %
Finish      :      Galvanized
Height      :      17-3/4 in
MERV      :      11
Material      :      Steel
Media Area      :      24.5 sq-ft
Nominal Size      :      16 x 25 in
Opening Size      :      15-7/16 in H x 23-7/8 in W
Outlet Dimensions      :      15-7/16 in H x 23-7/8 in W
Resistance      :      0.27 in-WC
Series      :      1000 Series
Temperature Rating      :      0 to 140 deg F
Width      :      6-3/4 in
