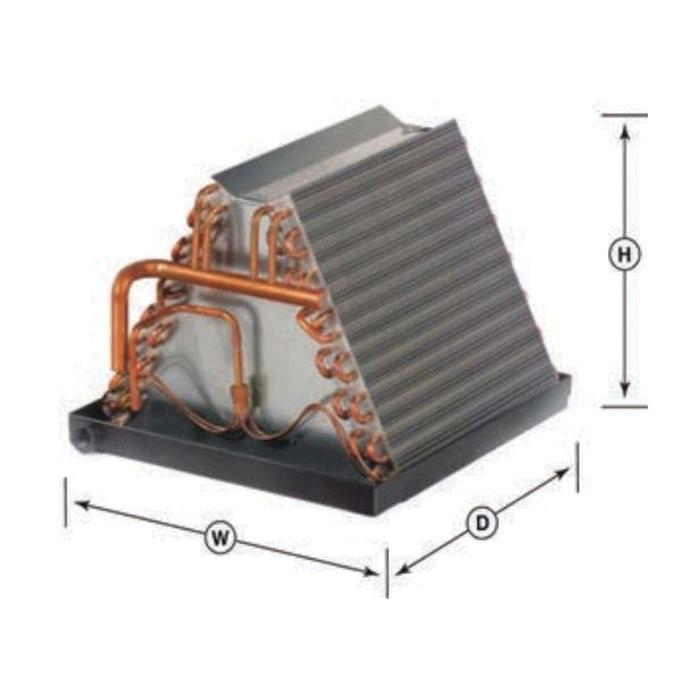

Aspen CM36B24-177L-000 Air Conditioner, Uncased Coil, 3 ton, 36 MBtu/hr, Aluminum
- Item ID: CM36B24-177L-000
- Min. Order Qty: 1
- Item ID: CM36B24-177L-000
- Brand: Aspen
-
-
Aspen Air Conditioner, CM Series, 36 MBtu/hr, Downflow, 17-3/4 in W x 19-5/8 in D Drain Pan, 19-1/2 in H Slab, Tonnage: 3 ton, R-22, R-410A Refrigerant, Uncased Coil, 500 psi, Aluminum, For Use With: Manufactured Home Furnaces
- Rifled copper tubing, enhanced aluminum fins
- Immersion tested at 500 psi, then nitrogen pressurized and sealed
- Left-hand refrigerant and plumbing connections
- Liquid line Schrader valve for hiss testing
- Heavy-duty polypropylene drain pans
- Drain connection have single LH 3/4 in FPT
- AHRI certifiable with all brands of A/C and heat pump systems
- ETL listed for use with both R-22 and R-410A when proper metering device is used
| BTU Rating | : | 36 MBtu/hr |
| Coil Type | : | Uncased |
| Configuration | : | Downflow |
| Drain Pan Size | : | 17-3/4 in W x 19-5/8 in D |
| Material | : | Aluminum |
| Pressure Rating | : | 500 psi |
| Refrigerant Type | : | R-22, R-410A |
| Series | : | CM Series |
| Slab Size | : | 19-1/2 in H |
| Suitable For Use With | : | Manufactured Home Furnaces |
| Tonnage | : | 3 ton |
Aspen CM36B24-177L-000
