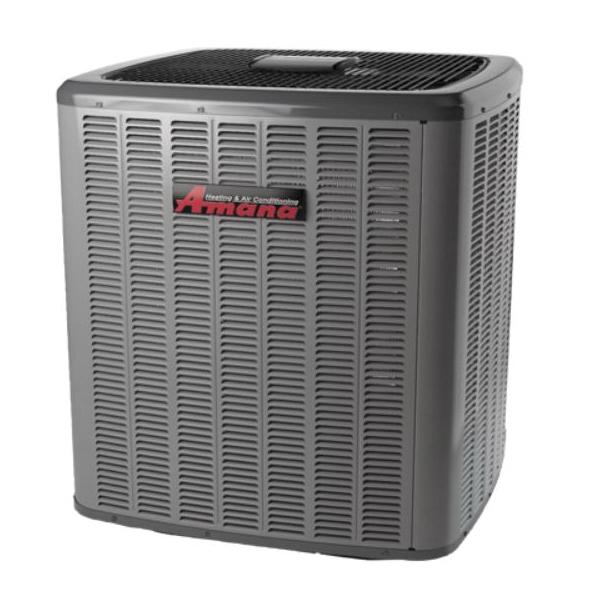

AMANA® ASZC18 Series ASZC18024-1 Split-System Heat Pump, 208-230 V, 15.3 A, 23800 Btu/hr Cooling/Heating BTU, 1/3 hp

AMANA® ASZC18024-1 ASZC180241
  • Item ID: ASZC180241
  • Min. Order Qty: 1
  • Item ID: ASZC180241
  • Brand: AMANA®
  • loading

loading

AMANA® Split-System Heat Pump, ASZC18 Series, 208-230 V, 15.3 A, 1/3 hp, 60 Hz, 1 ph Phase, 23800 Btu/hr Cooling/Heating, 18 SEER, Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 7/8 in Suction Line, 25 A Fuse Rating, Tonnage: 2 ton, 68 dBA Sound Level, 2 Stages, Steel, Finish: Baked-On Powder Painted/Galvanized, 40 in H x 35-1/2 in W x 35-1/2 in D

  • Two-stage Copeland™ UltraTech™ scroll compressor
  • High density foam compressor sound blanket
  • ComfortNet™ 4-wire communications system compatible
  • Expanded ComfortAlert™ diagnostics built-in
  • Simple low-voltage wiring to outdoor unit in communicating mode
  • Diagnostic indicator lights and storage of six-fault codes
  • Color-coded terminal strip for non-communicating set-up
  • SmartShift® technology with short cycle protection to ensure quiet, reliable defrost
  • Factory installed bi-flow liquid line filter drier
  • Factory installed suction line accumulator
  • Factory installed compressor crankcase heater
  • Factory installed high capacity muffler
  • Factory installed coil and ambient temperature sensors
  • Fully charged for 15 ft of tubing length
  • Sweat connection service valves with easy-access to gauge ports
  • AMANA® brand sound control top design
  • Wire fan discharge grille
  • Steel louver coil guard protects coil from damage and adds strength to the unit
  • Rust-resistant coated screws
  • Compact footprint
AC/HP Type      :      RESIDENTIAL
Amperage Rating      :      15.3 A
BTU Rating      :      23800 Btu/hr Cooling/Heating
Communicating AC/HP (Yes/No)      :      Yes
Compressor Type      :      Scroll
Dimensions      :      40 in H x 35-1/2 in W x 35-1/2 in D
Finish      :      Baked-On Powder Painted/Galvanized
Frequency Rating      :      60 Hz
Fuse Rating      :      25 A
HP Rating      :      1/3 hp
Item Name      :      ASZC
Liquid Line Size      :      3/8 in
Material      :      Steel
Number of Phases      :      1 PHASE
Number of Stages      :      2
Phase      :      1 ph
Refrigerant Type      :      R-410A
SEER Rating      :      18
Series      :      ASZC18 Series
Sound Level      :      68 dBA
Suction Line Size      :      7/8 in
Tonnage      :      2 ton
Voltage Rating      :      208-230 V
