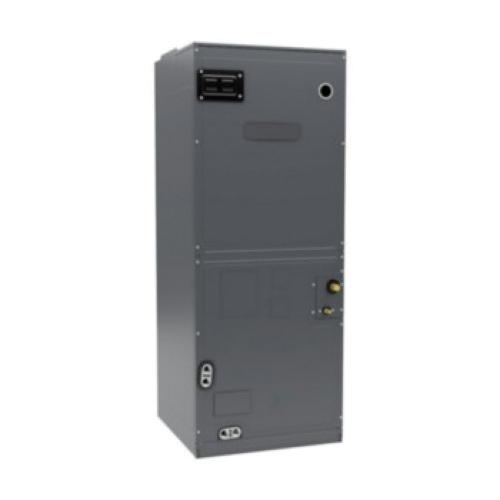

Amana® AVPTC29B14 Air Handler, 30000 Btu/hr Cooling BTU, 1085 cfm High, 610 cfm Low, 208 to 230 VAC, 3/4 hp, 60 Hz
- Item ID: AVPTC29B14
- Min. Order Qty: 1
- Item ID: AVPTC29B14
- Brand: Amana®
-
-
Amana® Air Handler, Series: AVPTC, 2 ton Nominal Capacity, 30000 Btu/hr Cooling, 208 to 230 VAC, 6.5 A Minimum Circuit, 3/4 hp, 60 Hz, 1 ph, 1085 cfm High, 610 cfm Low CFM Rating, Multi-Position, 13 SEER, FPT Connection, R-410A Refrigerant, 15 A Fuse Rating, Galvanized/Leather Grain-Embossed/Painted, 53-7/16 in H x 17-1/2 in W x 21 in D
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Variable-speed ECM blower motor
- ComfortNet communicating systems compatible
- Auto configuration of the airflow and tonnage in communicating mode
- Provides constant cu-ft/min over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Provides adjustable low cu-ft/min for efficient fan-only operation
- Improved humidity control and comfort
- Built-in compatibility with multi-stage heat pump and cooling applications
- All aluminum evaporator coils
- Rigid SmartFrame cabinet
- Cabinet air leakage less than 2% at 1 in H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 1/2 in H2O when tested in accordance with ASHRAE standard 193
- Horizontal or vertical configuration capabilities
- 21 in D for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Glue-less cabinet insulation retention
- Tool-less filter access
| Amperage Rating | : | 6.5 A Minimum Circuit |
| BTU Rating | : | 30000 Btu/hr Cooling |
| CFM Rating | : | 1085 cfm High, 610 cfm Low |
| Cabinet Configuration | : | B |
| Configuration | : | Multi-Position |
| Connection Type | : | FPT |
| Dimensions | : | 53-7/16 in H x 17-1/2 in W x 21 in D |
| Expansion Type | : | TXV |
| Finish | : | Galvanized/Leather Grain-Embossed/Painted |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HP Rating | : | 3/4 hp |
| Heating Capacity | : | NO HEAT |
| Item Name | : | AVPTC |
| Motor Type | : | ECM MOTOR |
| Nominal Capacity | : | 2 ton |
| Number of Phases | : | 1 PHASE |
| Phase | : | 1 ph |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 13 |
| Series | : | AVPTC |
| Speed | : | VARIABLE SPEED |
| Tonnage | : | 2.5 TON |
| Type | : | RESIDENTIAL |
| Voltage Rating | : | 208 to 230 VAC |
| Wireless Communication | : | Yes |
