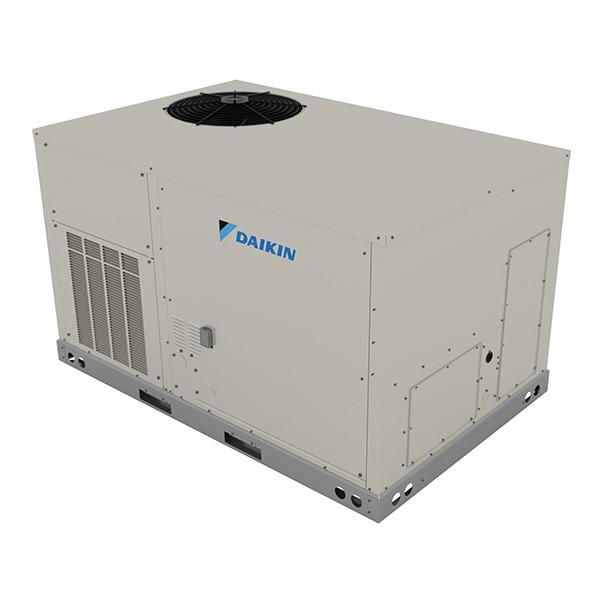

DAIKIN DFC0603D000001S Air Conditioner Packaged Unit, 5 ton Nominal, 59000 Btu/hr Cooling, 208 to 230 V, 28.9 A
- Item ID: DFC0603D000001S
- Min. Order Qty: 1
- Item ID: DFC0603D000001S
- Brand: DAIKIN
-
-
The DFC packaged air conditioner units are built to perform, with features and options that provide lower installation and operating costs, superior indoor air quality, quiet operation and longevity.
DAIKIN Air Conditioner Packaged Unit, Series: DFC Series, 5 ton Nominal Capacity, 59000 Btu/hr Cooling, 208 to 230 V, 28.9 A, 1 hp, 1200 rpm Rotational Speed, 60 Hz, 3 ph, Scroll Compressor, 1820 cfm Rating, 11.5 EER Rating, 14 SEER, 1 Stage, R-410A Refrigerant, Direct Drive, Standard Static ECM Motor, 3/4 in Connection, 20 x 25 x 2 in Filter, Galvanized Steel, Powder-Painted, 39-7/8 in H x 73-3/8 in W x 47-5/8 in D
- Daikin packaged rooftop units are made with high quality galvanized steel with a powder paint finish to provide higher corrosion resistance
- High performance, low noise scroll compressors, adjust the speed to match the required total cooling and heating load for efficient part load control
- The direct-drive with airfoil single width, single inlet (SWSI) Class II construction supply fan with aluminum fan +blades provides efficient and quiet operation at wide ranging static pressure and air flow requirements
- All units use large face area outdoor coils
- Packaged rooftop units come equipped with a well-organized, large, easy to use weather proof internal control box with easy access, for a better user experience
- Unit provides a draw-through filter section as standard for better air quality and longer lasting component maintenance
- Wide ranging of electric heat selections effectively handle most comfort heating demand from morning warm-up control to full heat
- ETL approved electric heat is factory assembled, installed and tested
- Units are completely wired and tested at the factory to provide faster commissioning and start-up
| Amperage Rating | : | 28.9 A |
| CFM Rating | : | 1820 cfm |
| Compressor Type | : | Scroll |
| Connection Size | : | 3/4 in |
| Cooling BTU Rating | : | 59000 Btu/hr |
| Dimensions | : | 39-7/8 in H x 73-3/8 in W x 47-5/8 in D |
| Drive Type | : | Direct |
| EER Rating | : | 11.5 |
| Filter Size | : | 20 x 25 x 2 in |
| Finish | : | Powder-Painted |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1 hp |
| Material | : | Galvanized Steel |
| Motor Type | : | Standard Static ECM |
| Nominal Capacity | : | 5 ton |
| Number of Stages | : | 1 |
| Phase | : | 3 ph |
| Refrigerant Type | : | R-410A |
| Rotational Speed | : | 1200 rpm |
| SEER Rating | : | 14 |
| Series | : | DFC Series |
| Voltage Rating | : | 208 to 230 V |
