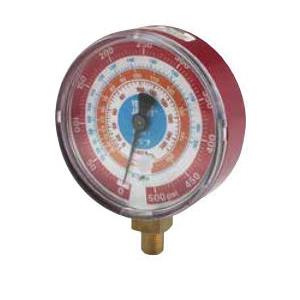

Yellow Jacket® 49151 Dry Manifold Pressure Gauge, 3-1/8 in Dial, 0 to 500 psi, 1/8 in
- Item ID: 49151
- Min. Order Qty: 1
- Item ID: 49151
- Brand: Yellow Jacket®
-
-
Yellow Jacket® Dry Manifold Pressure Gauge, 3-1/8 in Dial, 0 to 500 psi Measuring, 1 % Accuracy, 1/8 in Connection, MNPT Connection, R-134A, R-404A, R-407C Refrigerant, Stainless Steel, Red, -20 to 180 deg F
- Flutterless technology with brass surge protector to minimize needle pulsation
- Brass gauge movement
- Copper alloy bourdon tube
- Color-coded refrigerant types
- Large 3-1/8 in gauge are housed in a red or blue steel case with front recalibrator screw
- High-visibility colored temperature scales are easy to read through the full view polycarbonate crystal
| Accuracy | : | 1 % |
| Color | : | Red |
| Connection Size | : | 1/8 in |
| Connection Type | : | MNPT |
| Dial Size | : | 3-1/8 in |
| Material | : | Stainless Steel |
| Measuring Range | : | 0 to 500 psi |
| Refrigerant Type | : | R-134A, R-404A, R-407C |
| Temperature Rating | : | -20 to 180 deg F |
Yellow Jacket® 49151
