Aprilaire® 6302 6302 | Standard Supply

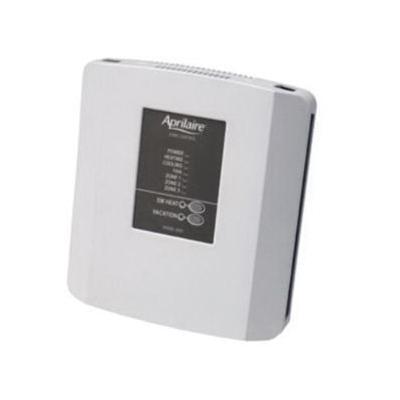

Aprilaire® Comfort Control 6302 Zone Control Panel, 18 to 30 VAC, 3 A, 1.86 in L x 8.63 in W x 9.66 in H

Aprilaire® 6302 6302
  • Item ID: 6302
  • Min. Order Qty: 1
  • Item ID: 6302
  • Brand: Aprilaire®
  • loading

Aprilaire® Comfort Control Zone Control Panel, 18 to 30 VAC, 3 A, 50/60 Hz, 2 Zones, 5 to 90% RH Non-Condensing Humidity, 2 Heat/1 Cool Stages, 32 to 158 deg F, 1.86 in L x 8.63 in W x 9.66 in H

  • Controls high and low balance point from one outdoor temperature senor
  • Time delay override to simplify check out and troubleshooting
  • Resettable fuses for each zone's dampers
  • Multiple-mounting and wire run options
  • Short cycle protection
  • Built-in fan purge
  • 18 or 20 AWG solid wiring
  • For 1-stage heat pump
Amperage Rating      :      3 A
Dimensions      :      1.86 in L x 8.63 in W x 9.66 in H
Frequency Rating      :      50/60 Hz
Humidity Rating      :      5 to 90% RH Non-Condensing
Number of Zones      :      2
Stages      :      2 Heat/1 Cool
Temperature Rating      :      32 to 158 deg F
Voltage Rating      :      18 to 30 VAC

Aprilaire® 6302
