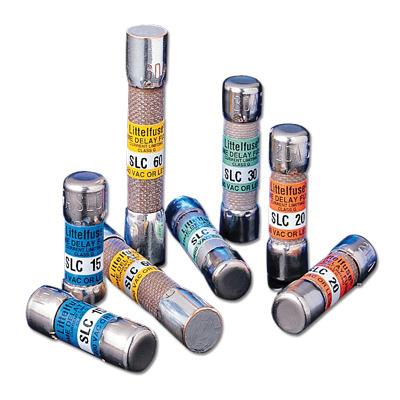

The unique design of Littelfuse's compact SLC series Class G fuses provide additional time-delay over competitive products which increases system reliability. Compact Class G fuses were the first fuse series to approach midget fuse dimensions and meet NEC requirements for branch-circuit protection. The unique dimensions of SLC series Class G fuses prevents insertion of lower voltage fuses in Class G fuse holders. The fuse's varying length prevents insertion of higher ampere rated fuses in fuse holders designed for lower ampere ratings. Class CC fuses are replacing Class G fuses in many new designs. Class CC fuses' superior time delay plus higher voltage and interrupting ratings meet the needs of modern circuits. Littelfuse's introduction of POWR-PRO® CCMR series fuses, with ratings up to 60 Amperes for providing branch circuit protection, are accelerating this trend.

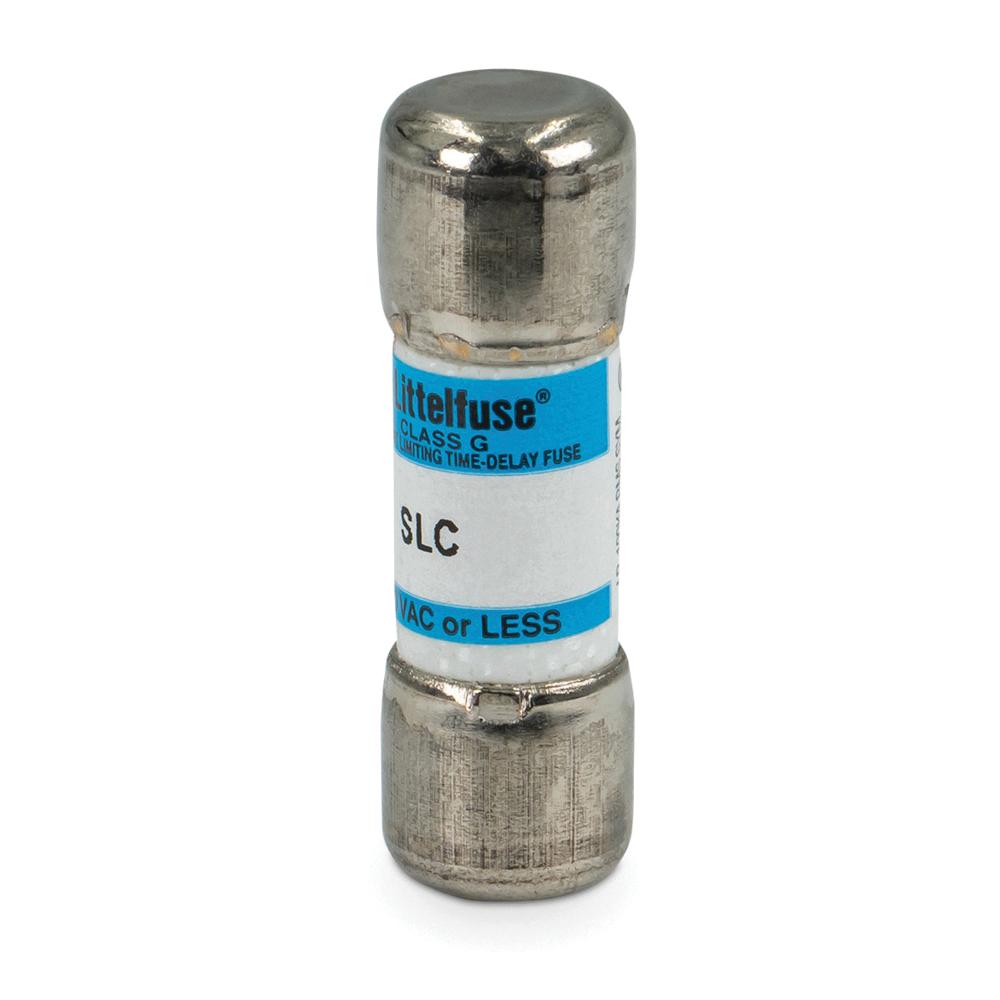

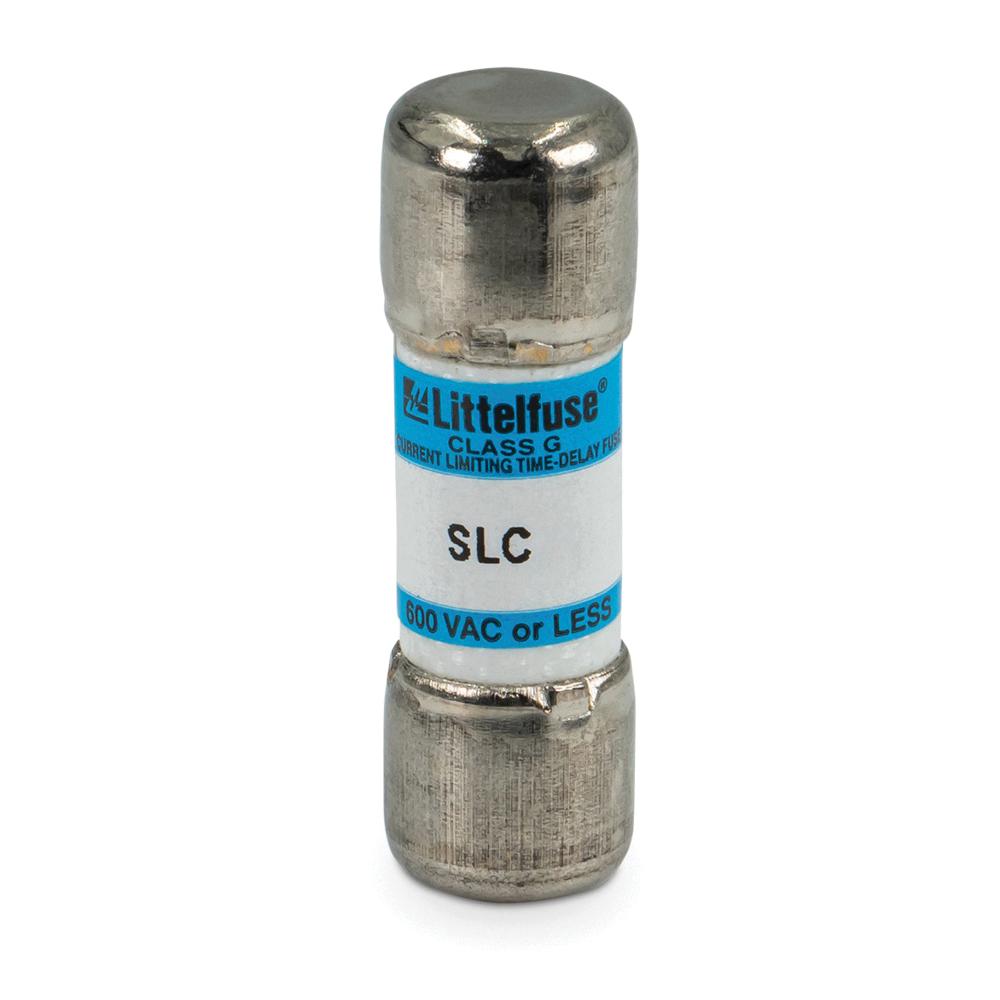

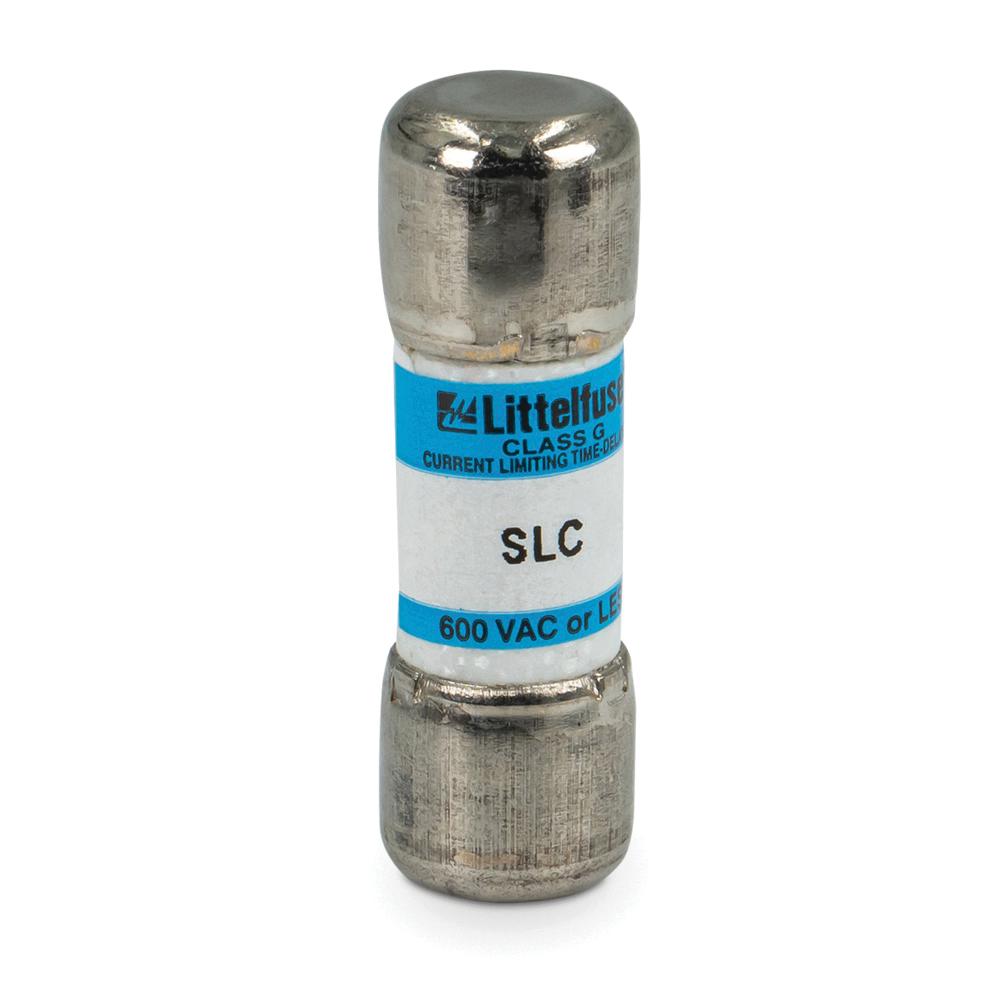

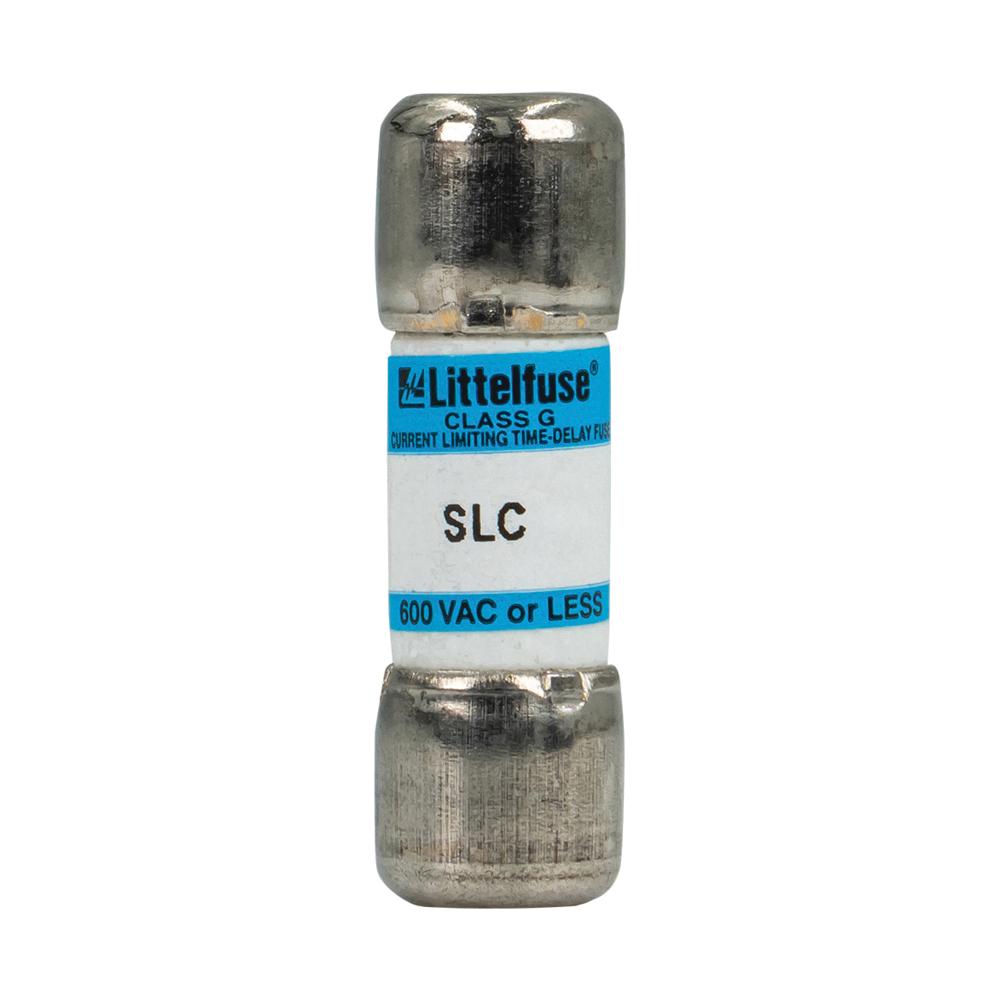

Littelfuse® Time Delay Fuse, Series: SLC Series, Indicating/Non-Indicating: Non-Indicating, 600 VAC, 170 VDC, 15 A, Class: G, 100 kA Interrupt, Cartridge Body Type, Ferrule Terminal, Clip, Fuse Block, Holder Mount, 1-5/16 in Length, 13/32 in Dia

• Branch circuit rated
• Current-limiting
• 100 kA interrupting rating
• 600 V ac rated 1/2-20 A
