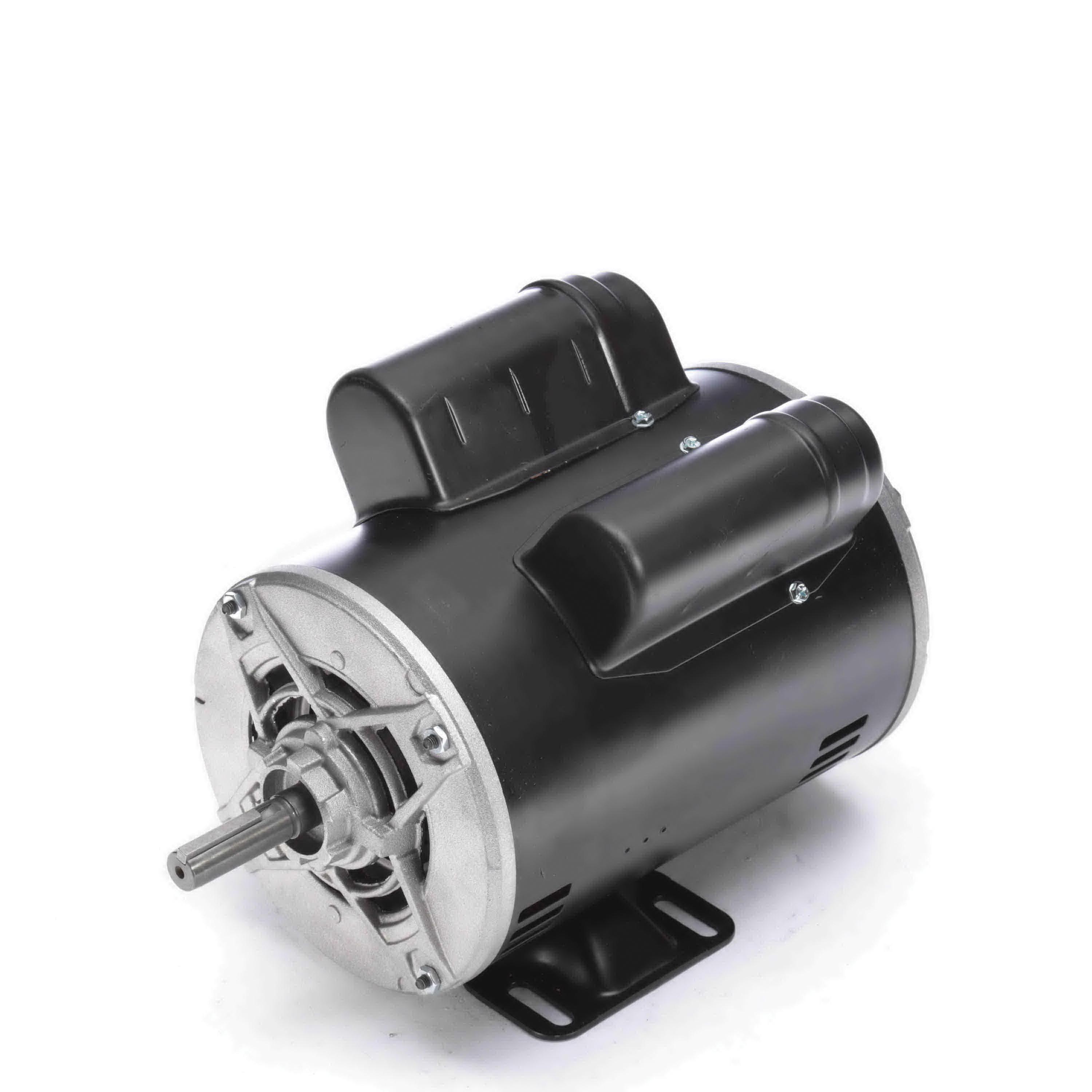

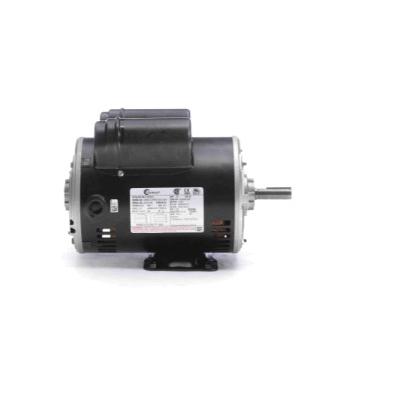

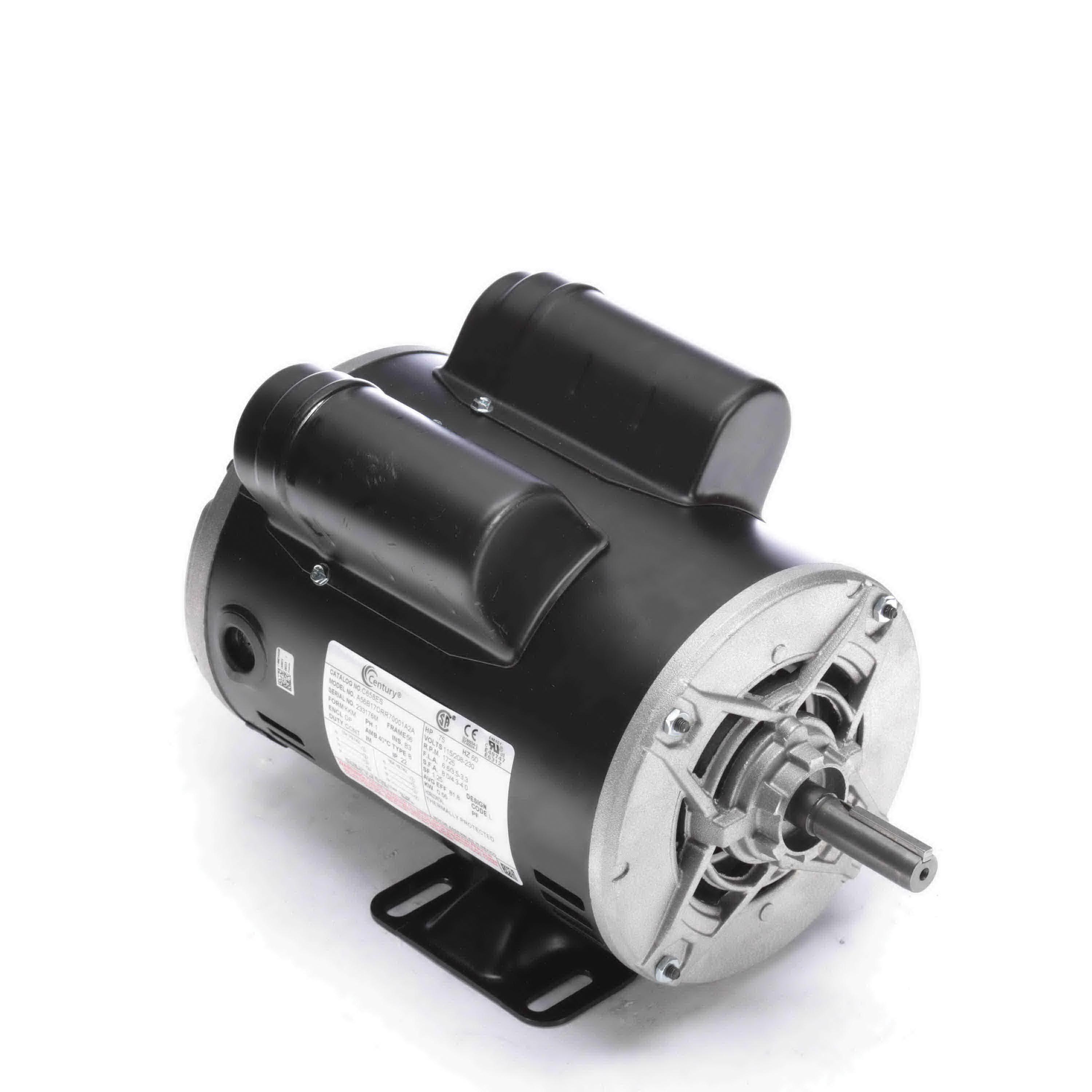

Century® C658ES Motor, 115/208 to 230 V, 6.6/3.5 to 3.3 A, 0.75 hp, 1725 rpm Speed, 0.56 kW, 1 ph -Phase, 60 Hz
- Item ID: C658ES
- Min. Order Qty: 1
- Item ID: C658ES
- Brand: Century®
-
-
Century® Motor, 115/208 to 230 V, 6.6/3.5 to 3.3 A, 0.75 hp, 1725 rpm, 0.56 kW, 1 ph Phase, 60 Hz, Drip-Proof Motor Enclosure, 56 Frame, 5/8 in Dia Shaft, CCW Rotation, 1 Speed, Ball Bearing, 4 Poles, Continuous, Across The Line Starting Method, Class B Insulation Class, 1.25 Service Factor, Rigid Base Mounting, Rolled Steel, 40 deg C, 12.49 in L
| Amperage Rating | : | 6.6/3.5 to 3.3 A |
| Bearing Type | : | Ball |
| Dimensions | : | 12.49 in L |
| Duty Type | : | Continuous |
| Frame Size | : | 56 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 0.75 hp |
| Insulation Class | : | Class B |
| Material | : | Rolled Steel |
| Motor Enclosure Type | : | Drip-Proof |
| Mounting Type | : | Rigid Base |
| Number of Poles | : | 4 |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 0.56 kW |
| Rotation Type | : | CCW |
| Service Factor | : | 1.25 |
| Shaft Size | : | 5/8 in Dia |
| Speed Rating | : | 1725 rpm |
| Starting Method | : | Across The Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115/208 to 230 V |
Century® C658ES
