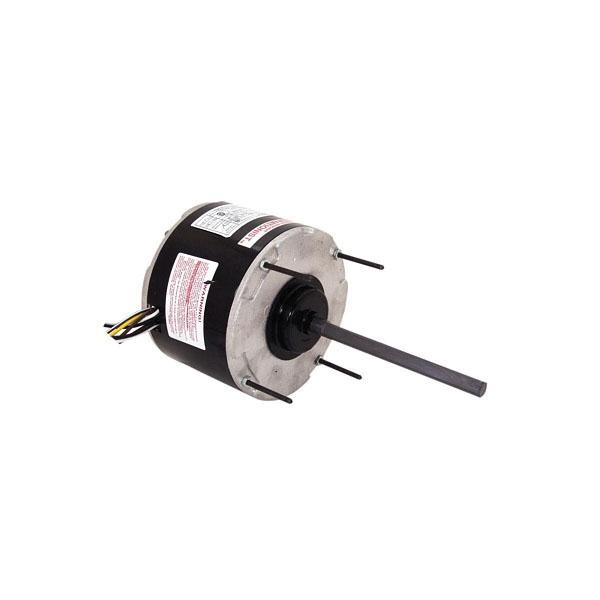

Century® FS1028 Condenser Fan Motor, 208 to 230 V, 1.9 A, 1/4 hp, 825 rpm Speed, 0.19 kW, 1 ph -Phase, 60 Hz, 48 Frame
- Item ID: FS1028
- Min. Order Qty: 1
- Item ID: FS1028
- Brand: Century®
-
-
Century® Condenser Fan Motor, 208 to 230 V, 1.9 A, 1/4 hp, 825 rpm, 0.19 kW, 1 ph Phase, 60 Hz, Open Motor Enclosure, 48 Frame, 1/2 in Dia x 6 in L Shaft, Reversible Rotation, 2 Speed, Sleeve Bearing, Belly Band, Stud Mounting, B Insulation Class, Air Over, 1 Service Factor, 8 Poles, 4.44 in Frame Length, 7.5 uF MFD Rating, Rolled Steel, 60 deg C, 5-5/8 in Dia
- Single shaft
- Automatic thermal overload protection
| Amperage Rating | : | 1.9 A |
| Bearing Type | : | Sleeve |
| Dimensions | : | 5-5/8 in Dia |
| Duty Type | : | Air Over |
| Frame Length | : | 4.44 in |
| Frame Size | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/4 hp |
| Insulation Class | : | B |
| MFD Rating | : | 7.5 uF |
| Material | : | Rolled Steel |
| Motor Enclosure Type | : | Open |
| Mounting Type | : | Belly Band, Stud |
| Number of Poles | : | 8 |
| Number of Speeds | : | 2 |
| Phase | : | 1 ph |
| Power Rating | : | 0.19 kW |
| Rotation Type | : | Reversible |
| Service Factor | : | 1 |
| Shaft Size | : | 1/2 in Dia x 6 in L |
| Speed Rating | : | 825 rpm |
| Temperature Rating | : | 60 deg C |
| Voltage Rating | : | 208 to 230 V |
No documents
Century® FS1028
