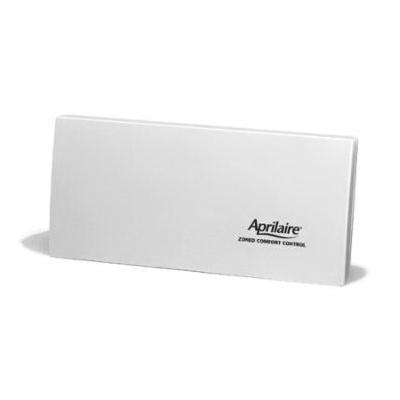

Aprilaire® Comfort Control 6303 Zone Control Panel, 18 to 30 VAC, 3 A, 1.86 in L x 8.63 in W x 9.66 in H

Aprilaire® 6303 6303
  • Item ID: 6303
  • Min. Order Qty: 1
  • Item ID: 6303
  • Brand: Aprilaire®
  • loading

loading

Aprilaire® Comfort Control Zone Control Panel, 18 to 30 VAC, 3 A, 50/60 Hz, 3 Zones, 5 to 90% RH Non-Condensing Humidity, 2 Heat/1 Cool Stages, 32 to 158 deg F, 1.86 in L x 8.63 in W x 9.66 in H

  • A one-stage heat/cool (4-wire) thermostat can be used in each zone for the most economical installation solution
  • Consumer benefits - any zone sets mode, continuous fan by zone, zone changeover based on time, fan purge, short cycle protection, maintenance-free
  • Contractor benefits - plenum temperature control (adjustable), thermostat flexibility, led status indicators, time delay override, works with two or three wire dampers, adjustable purge timing, electric/non-electric switch
  • Controls high and low balance point from one outdoor temperature senor
  • Time delay override to simplify check out and troubleshooting
  • Resettable fuses for each zone's dampers
  • Multiple-mounting and wire run options
  • Short cycle protection
  • Built-in fan purge
  • 18 or 20 AWG solid wiring
  • For 1-stage compressor and heat pump systems only
Amperage Rating      :      3 A
Dimensions      :      1.86 in L x 8.63 in W x 9.66 in H
Frequency Rating      :      50/60 Hz
Humidity Rating      :      5 to 90% RH Non-Condensing
Number of Zones      :      3
Stages      :      2 Heat/1 Cool
Temperature Rating      :      32 to 158 deg F
Voltage Rating      :      18 to 30 VAC
