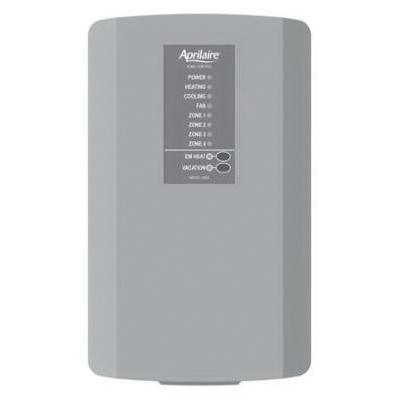

Aprilaire® 6404 6404 | Standard Supply

Aprilaire® 6404 Control Panel With LCD Display, 18 to 30 VAC, 1.86 in L x 8.85 in W x 14.72 in H

  • Item ID: 6404
  • Min. Order Qty: 1
  • Item ID: 6404
  • Brand: Aprilaire®
  • loading

loading

Aprilaire® Control Panel, 18 to 30 VAC, 18 VA at 158 deg F, 30 VA at 90 deg F Damper Output per Zone, 18 VA at 158 deg F, 30 VA at 90 deg F Panel and Thermostats VA Rating, 50/60 Hz, 4 Zones, 5 to 90% RH Non-Condensing Humidity, 32 to 158 deg F, 1.86 in L x 8.85 in W x 14.72 in H

  • The 6404 can control up to four-zone and is expandable up to 12 with the use of the model 6401 two-zone expansion panel
  • Integrated balance point control
  • Equipment protection
  • For 2 heat/2 cool conventional and 4 heat/2 cool heat pump applications
Dimensions      :      1.86 in L x 8.85 in W x 14.72 in H
Frequency Rating      :      50/60 Hz
Humidity Rating      :      5 to 90% RH Non-Condensing
Number of Zones      :      4
Temperature Rating      :      32 to 158 deg F
VA Rating      :      18 VA at 158 deg F, 30 VA at 90 deg F Damper Output per Zone, 18 VA at 158 deg F, 30 VA at 90 deg F Panel and Thermostats
Voltage Rating      :      18 to 30 VAC
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Aprilaire_6404_Specification_Sheet.pdf
  • Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Aprilaire_6404_Specification_Sheet.pdf

Aprilaire® 6404
