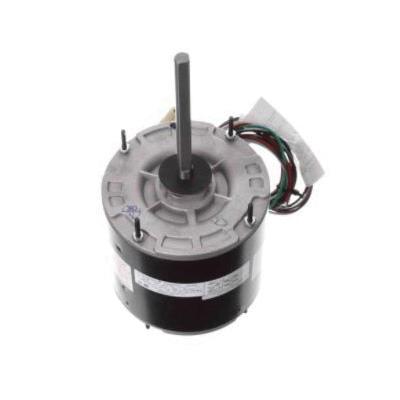

Century® EM3469 Condenser Fan Motor, 208 to 230 V, 1.9/1.2 A Full Load, 1/3 hp, 1/5 hp, 825 rpm Speed, 0.25 kW, 60 Hz

Century® EM3469 EM3469
  • Item ID: EM3469
  • Min. Order Qty: 1
  • Item ID: EM3469
  • Brand: Century®
  • loading

Century® Condenser Fan Motor, 208 to 230 V, 1.9/1.2 A Full Load, 1/3 hp, 1/5 hp, 825 rpm, 0.25 kW, 1 ph Phase, 60 Hz, Totally Enclosed Motor Enclosure, 48Y Frame, 1/2 in Dia, 6 in L Shaft, Reversible Rotation, 2 Speed, Ball Bearing, Extended Studs Mounting, B Insulation Class, Air Over, 1 Service Factor, 8 Poles, Flat Shaft Design, 4.63 in Frame Length, Rolled Steel, 60 deg C, 5.7 in Dia x 11.84 in L

  • Permanent split capacitor (PSC), capacitor required 10 or 7.5 uF, 370 V (not supplied with motor)
  • Thermal protection
  • Extended studs shaft and lead end, mounting holes in shell, belly band
Amperage Rating      :      1.9/1.2 A Full Load
Bearing Type      :      Ball
Dimensions      :      5.7 in Dia x 11.84 in L
Duty Type      :      Air Over
Frame Length      :      4.63 in
Frame Size      :      48Y
Frequency Rating      :      60 Hz
HP Rating      :      1/3 hp, 1/5 hp
Insulation Class      :      B
Lead Length      :      48 in
Material      :      Rolled Steel
Motor Enclosure Type      :      Totally Enclosed
Mounting Type      :      Extended Studs
Number of Poles      :      8
Number of Speeds      :      2
Phase      :      1 ph
Power Rating      :      0.25 kW
Rotation Type      :      Reversible
Service Factor      :      1
Shaft Design      :      Flat
Shaft Size      :      1/2 in Dia, 6 in L
Speed Rating      :      825 rpm
Temperature Rating      :      60 deg C
Thermal Protection      :      Automatic
Voltage Rating      :      208 to 230 V
