Dottie® K6HX K6HX | Standard Supply

Dottie® K6HX Conical Anchor Kit With Hex Head Combo Drive Screws, Polyethylene

Dottie® K6HX K6HX
  • Item ID: K6HX
  • Min. Order Qty: 1
  • Item ID: K6HX
  • Brand: Dottie®
  • loading

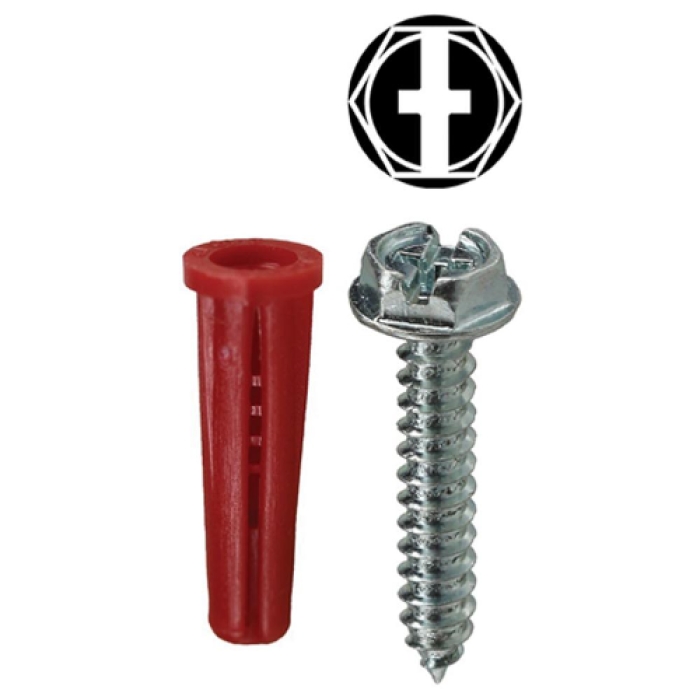

Dottie® Conical Anchor Kit, 201 Piece, Polyethylene, Red

The K6HX kit is suitable for use in solid and hollow wall, concrete, block or brick applications. When used in hollow walls, such as drywall or plywood, the wings will splay out to provide a more secure installation and higher pull-out load. The anchor has a lip to prevent falling into deep holes or hollow walls. For hard wall applications, use the size of the anchor to determine hole size for installation. For drywall or soft applications, it is recommended to use the smallest hole that will enable a tight fit of the anchor.

  • Tapered body
  • Collar to prevent falling through base material
Additional Information      :      (100) 1/4 x 1 in Conical Anchors, (100) #10 x 1 in Hex/Phillips/Slotted Hex Washer Head Sheet Metal Screws and (1) #2 x 1/4 in Carbide Tipped Masonry Drill Bit
Color      :      Red
Height      :      1.5 in
Length      :      7.5 in
Material      :      Polyethylene
Number of Pieces      :      201
Width      :      3.3 in
  • Catalog https://www.ssdhvac.com//ASSETS/DOCUMENTS/ITEMS/EN/Dottie_K6HX_Specification_Sheet.pdf
