Hef-T-Foot™ Install Kit 17.7" | Standard Supply

Hef-T-Foot™ Install Kit 17.7"

  • Item ID: FF-450-S-KIT
  • Min. Order Qty: 1
  • Item ID: FF-450-S-KIT
  • Brand: DiversiTech®
  • loading

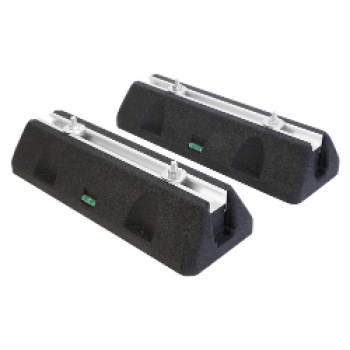

The Hef-T-Foot™ FF-450-S-KIT is a mini split installation kit that includes two 17.7 in. rubber bases with strut inserts for mounting A/C condensing units, air source heat pumps and a variety of outdoor equipment. All necessary installation hardware is included with the kit. The FF-450-S-KIT foot base dimensions are 17.7 in. L x 6.3 in. W x 3.54 in. H.

  • Complete kit comes with 2ea Hef-T-Foot™ base supports and hardware necessary to attach ductless equipment to bases
  • High-quality, heavy-duty compression-molded rubber which provides solid base and absorbs vibration and sound.
  • Environmentally friendly, manufactured from recycled rubber
  • Comes with .8 in. x 1.6 in. extruded aluminum strut adhered to the rubber with industrial adhesive
  • Maximum load 800 lbs. per pair
  • Impact Resis
Duct Type      :      Ductless
Load Capacity      :      800 lbs. per pair
Mounting Type      :      Strut
Overall Depth      :      24.21 in
Overall Height      :      7.87 in
Overall Width      :      6.69 in
Weight      :      15.87 lbs
  • Tech Data Sheet https://www.ssdhvac.com//ASSETS/DOCUMENTS/ITEMS/EN/FF-450-S-KIT_Tech Sheet.pdf
