Duro Dyne® 14179 PPC8X3/4-100 | Standard Supply

Duro Dyne, Self-Piercing Screw, Pro Point Series, 14179, #8 Thread, Steel

  • Item ID: PPC8X3/4-100
  • Min. Order Qty: 1
  • Item ID: PPC8X3/4-100
  • Brand: Duro Dyne®
  • loading

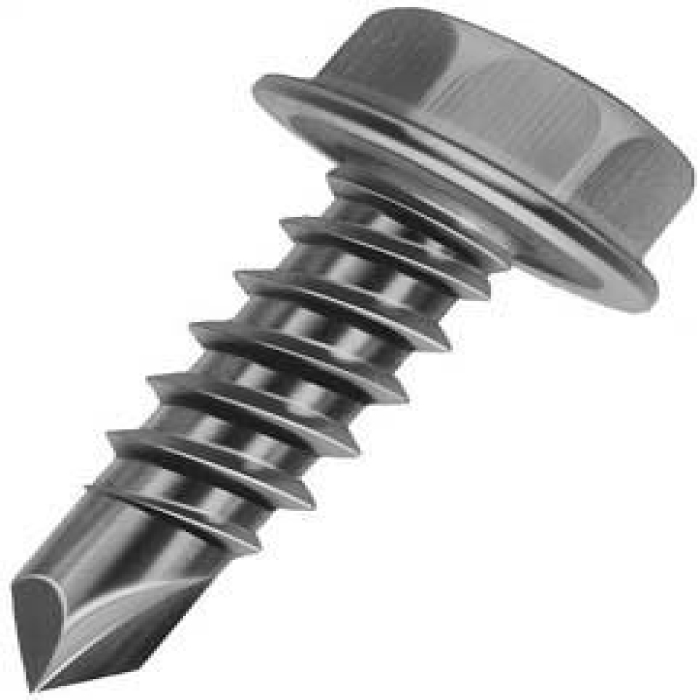

Duro Dyne® Pro Point Series 14179 Self-Piercing Screw, #8 Thread, 3/4 in OAL, Unslotted Hex Head, 1/4 in Drive, Steel

Duro Dyne® Self-Piercing Screw, Pro Point Series, #8 Thread, 3/4 in Overall Length, Unslotted Hex Head, 1/4 in Drive, #2 Drill, Self-Piercing Point, Steel, Finish: Zinc-Plated

  • These screws assure accurately sized holes for maximum holding power, eliminating the need for hole preparation and frequent alignment problems encountered in parts assembly
  • Ideal for fastening 4-bolt flange to ductwork
  • Pro point screws are quality tested through 1/8 in cold rolled steel
  • Corrosion-resistance
  • 0.1 in maximum drill capability
  • Thread is designed to pull the screw through steel with no strip-out
  • Serrated edge to prevent the backing out of the screw
  • Precision formed drill point for faster penetration with less effort
Drill Size      :      #2
Drive Size      :      1/4 in
Drive Type      :      Unslotted
Finish      :      Zinc-Plated
Head Type      :      Hexagonal
Material      :      Steel
Overall Length      :      3/4 in
Series      :      Pro Point Series
Thread Size      :      #8

No documents

Duro Dyne® 14179
