Browning® B 1 5/8 BX1-5/8 | Standard Supply

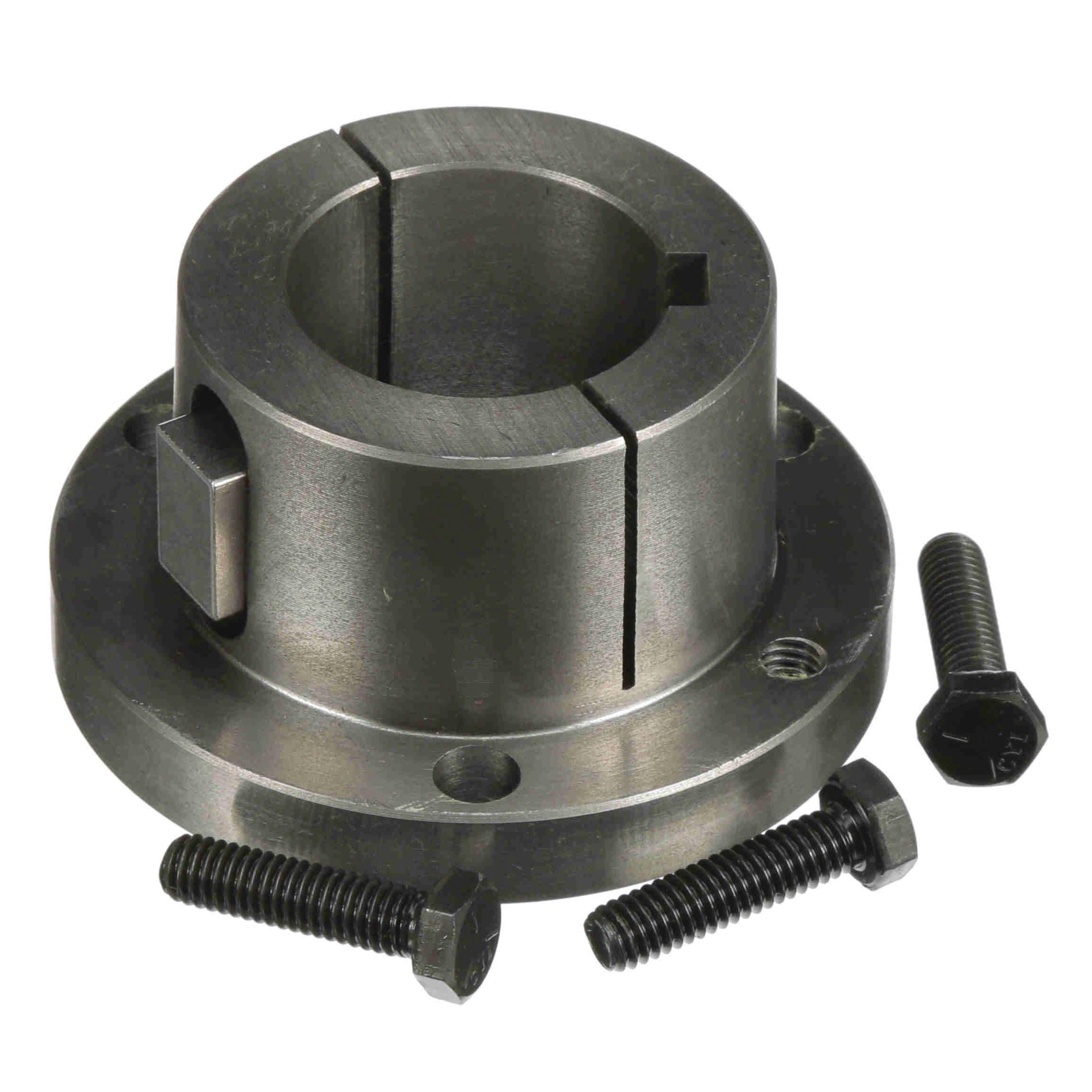

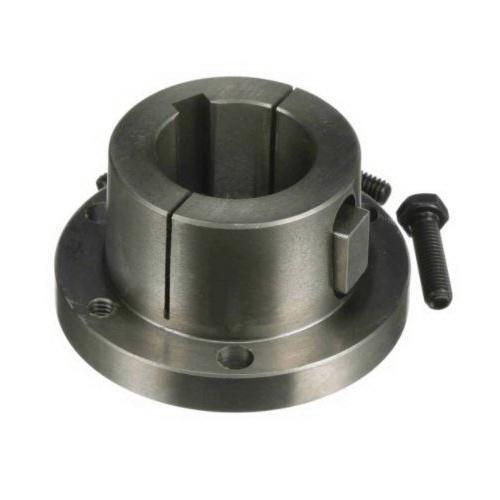

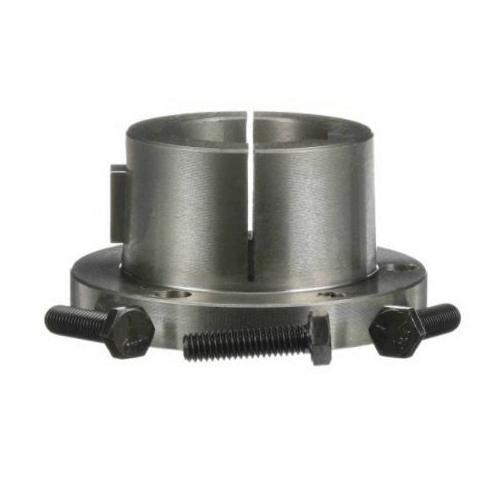

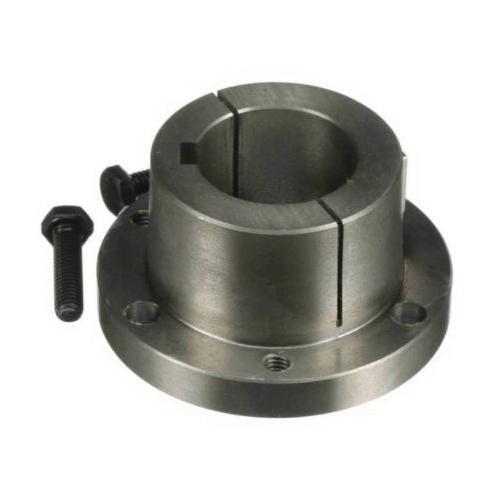

Browning® B 1 5/8 Split Tapered Bushing, 1-5/8 in Dia Bore, 2.557 in, 2-5/8 in Dia Barrel, 3-11/16 in Dia Flange

Browning® B 1 5/8 BX1-5/8
  • Item ID: BX1-5/8
  • Min. Order Qty: 1
  • : 3694833
  • Item ID: BX1-5/8
  • Brand: Browning®
  • loading

Browning® Split Tapered Bushing, Bushed Bore, 1-5/8 in Bore Diameter, 3-11/16 in Outside Diameter, 2.557 in, 2-5/8 in Barrel Diameter, 1-15/16 in Length, 3/8 x 3/16 in Keyway, Solid Flange, 3-11/16 in Flange Diameter, 1/2 in Flange Thickness, 3 Cap Screws, 5/16 x 1-1/4 in Cap Screw, 3 Bolt Holes, 192 in-lb Torque, Iron/Steel

  • Lifetime warranty-if this bushing ever fails EPT will replace it free of charge
  • Solid flange and double split barrel-assures better concentricity to the shaft
  • 3/4 in/ft taper on barrel - self-locking taper provides the highest degree of mechanical locking product to product
  • Key to key drive-with keys on both the shaft and product to provide the strongest possible drive
Barrel Diameter      :      2.557 in, 2-5/8 in
Bore Diameter      :      1-5/8 in
Bore Type      :      Bushed
Cap Screw Size      :      5/16 x 1-1/4 in
Flange Diameter      :      3-11/16 in
Flange Thickness      :      1/2 in
Flange Type      :      Solid
Keyway Size      :      3/8 x 3/16 in
Length      :      1-15/16 in
Material      :      Iron/Steel
Number of Bolt Holes      :      3
Number of Cap Screws      :      3
Outside Diameter      :      3-11/16 in
Torque Rating      :      192 in-lb

Browning® B 1 5/8
