Century® ST1152 ST1152 | Standard Supply

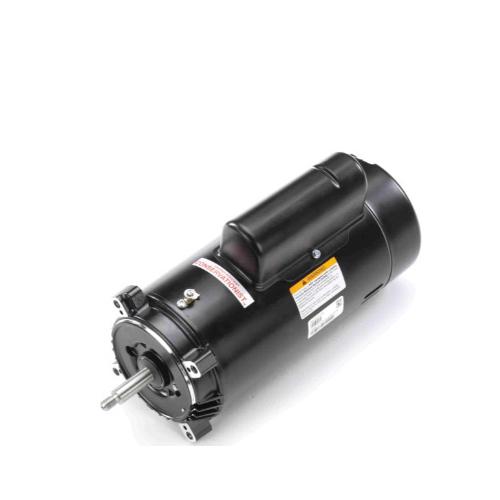

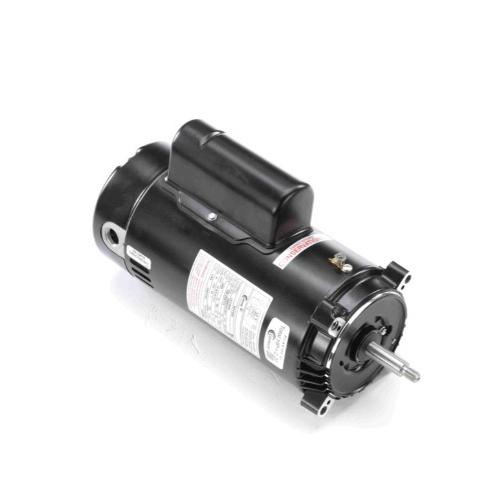

Century® ST1152 Pool Pump Motor, Continuous Duty, 115/208 - 230 V, 19.6/10.4/9.8 A, 1 ph, 1-1/2 hp

Century® ST1152 ST1152
  • Item ID: ST1152
  • Min. Order Qty: 1
  • Item ID: ST1152
  • Brand: Century®
  • loading

Century® Pool Pump Motor, Continuous, 115/208 - 230 V, 19.6/10.4/9.8 A, 60 Hz, 1 ph Phase, 1.1 kW, 1-1/2 hp, 3450 rpm, 1 Speed, CCW Rotation, 5/8 in Dia x 2-9/16 in L Shaft, Ball Bearing, Insulation Class: Class B, 1.47 Service Factor, Open Drip-Proof Motor Enclosure, 50 deg C, C-Flange Mounting, Steel Housing, 12.63 in L, Additional Information: 2-Pole, 56J Frame, Automatic Thermal Protection, Capacitor Start Capacitor Run-Type, Horizontal-Mount

  • Automatic thermal overload protection
  • Threaded shaft 7/16-20 UNF-2A RH 11/16 in from end
  • Sealed switch "1081" design
  • Energy-efficient
Additional Information      :      2-Pole, 56J Frame, Automatic Thermal Protection, Capacitor Start Capacitor Run-Type, Horizontal-Mount
Amperage Rating      :      19.6/10.4/9.8 A
Bearing Type      :      Ball
Dimensions      :      12.63 in L
Duty Type      :      Continuous
Frequency Rating      :      60 Hz
HP Rating      :      1-1/2 hp
Housing Material      :      Steel
Insulation Class      :      Class B
Motor Enclosure Type      :      Open Drip-Proof
Mounting Type      :      C-Flange
Number of Speeds      :      1
Phase      :      1 ph
Power Rating      :      1.1 kW
Rotation Type      :      CCW
Service Factor      :      1.47
Shaft Size      :      5/8 in Dia x 2-9/16 in L
Speed Rating      :      3450 rpm
Temperature Rating      :      50 deg C
Voltage Rating      :      115/208 - 230 V

Century® ST1152
