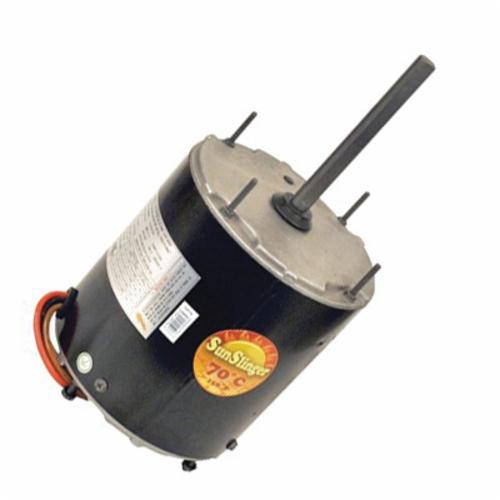

Mars® 20468 Condenser Fan Motor, 208 to 230 VAC, 3.6 A, 1/5 to 1/2 hp, 1075 rpm Speed, 1 ph -Phase, 60 Hz
- Item ID: 20468
- Min. Order Qty: 1
- Item ID: 20468
- Brand: Mars®
-
-
Mars® Condenser Fan Motor, 208 to 230 VAC, 3.6 A, 1/5 to 1/2 hp, 1075 rpm, 1 ph Phase, 60 Hz, Totally Enclosed Air Over Motor Enclosure, 1/2 in Dia x 5 in L Shaft, Reversible Rotation, Ball Bearing, Band, Through-Bolt Mounting, B Insulation Class, 70 deg C, 5.5 in Dia x 6.10 in L
- They are designed to provide reliable operation in a wide range of ambient temperatures
- All angle ball bearings
- Rheem® mounting holes with screws installed
- Trane 4.33 bolt circle mounting holes and self-tapping screws
- Water slinger on shaft
- Extra set of nuts on mounting studs
- Thermal overload protection
- Fan-duty, continuous, air-over
- Capacitor 10/12.5 at 370 VAC
| Amperage Rating | : | 3.6 A |
| Bearing Type | : | Ball |
| Dimensions | : | 5.5 in Dia x 6.10 in L |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/5 to 1/2 hp |
| Insulation Class | : | B |
| Motor Enclosure Type | : | Totally Enclosed Air Over |
| Mounting Type | : | Band, Through-Bolt |
| Phase | : | 1 ph |
| Rotation Type | : | Reversible |
| Shaft Size | : | 1/2 in Dia x 5 in L |
| Speed Rating | : | 1075 rpm |
| Temperature Rating | : | 70 deg C |
| Voltage Rating | : | 208 to 230 VAC |
Mars® 20468
