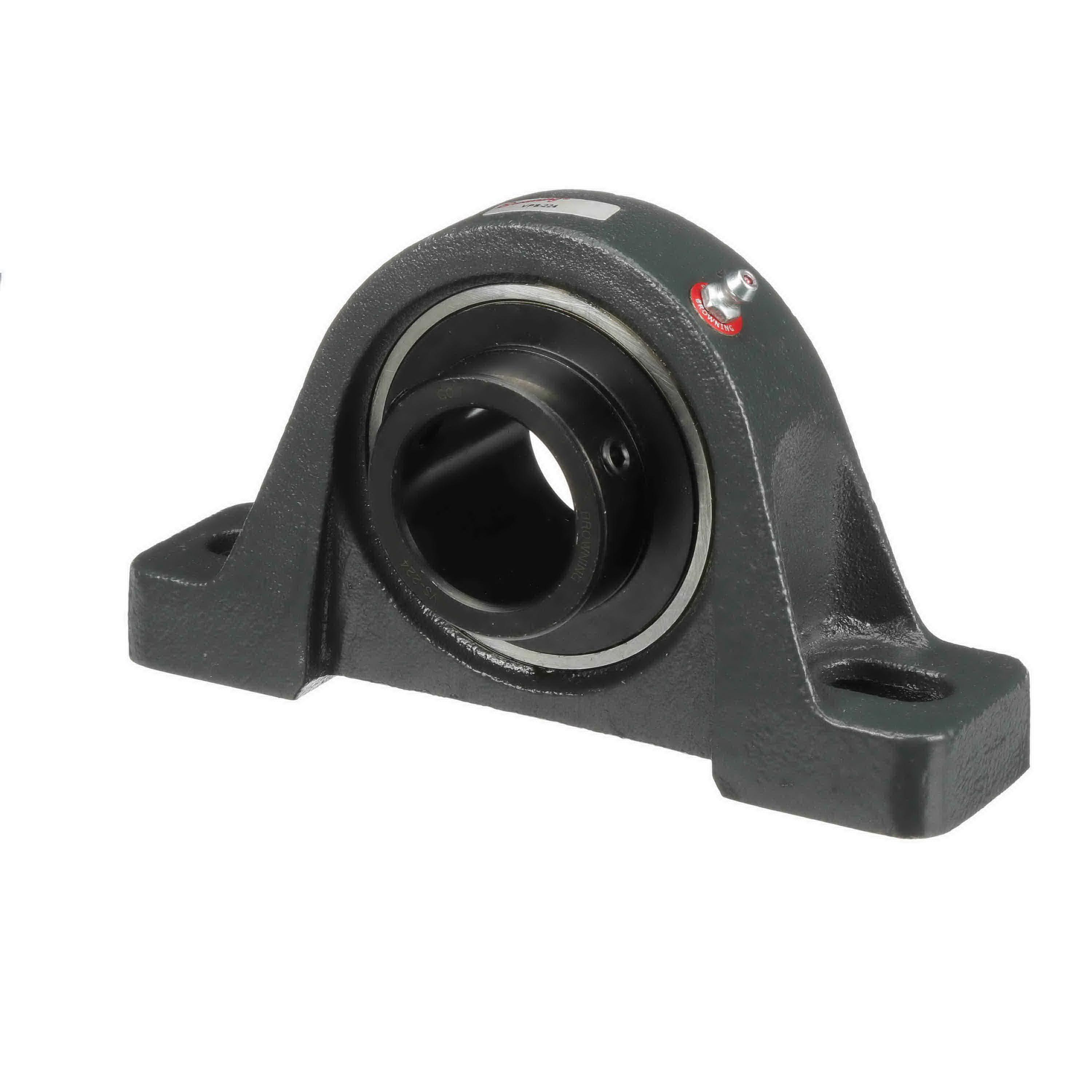

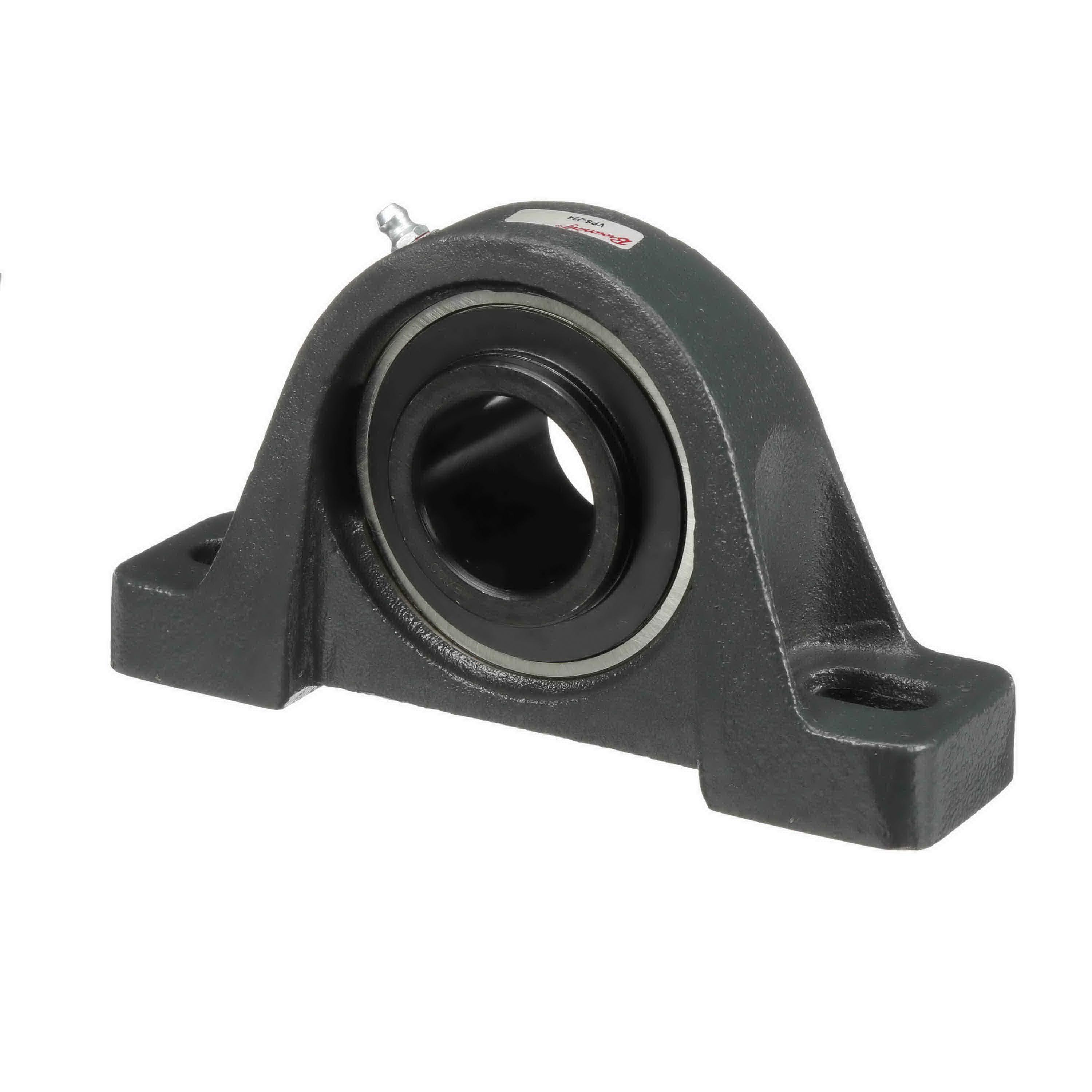

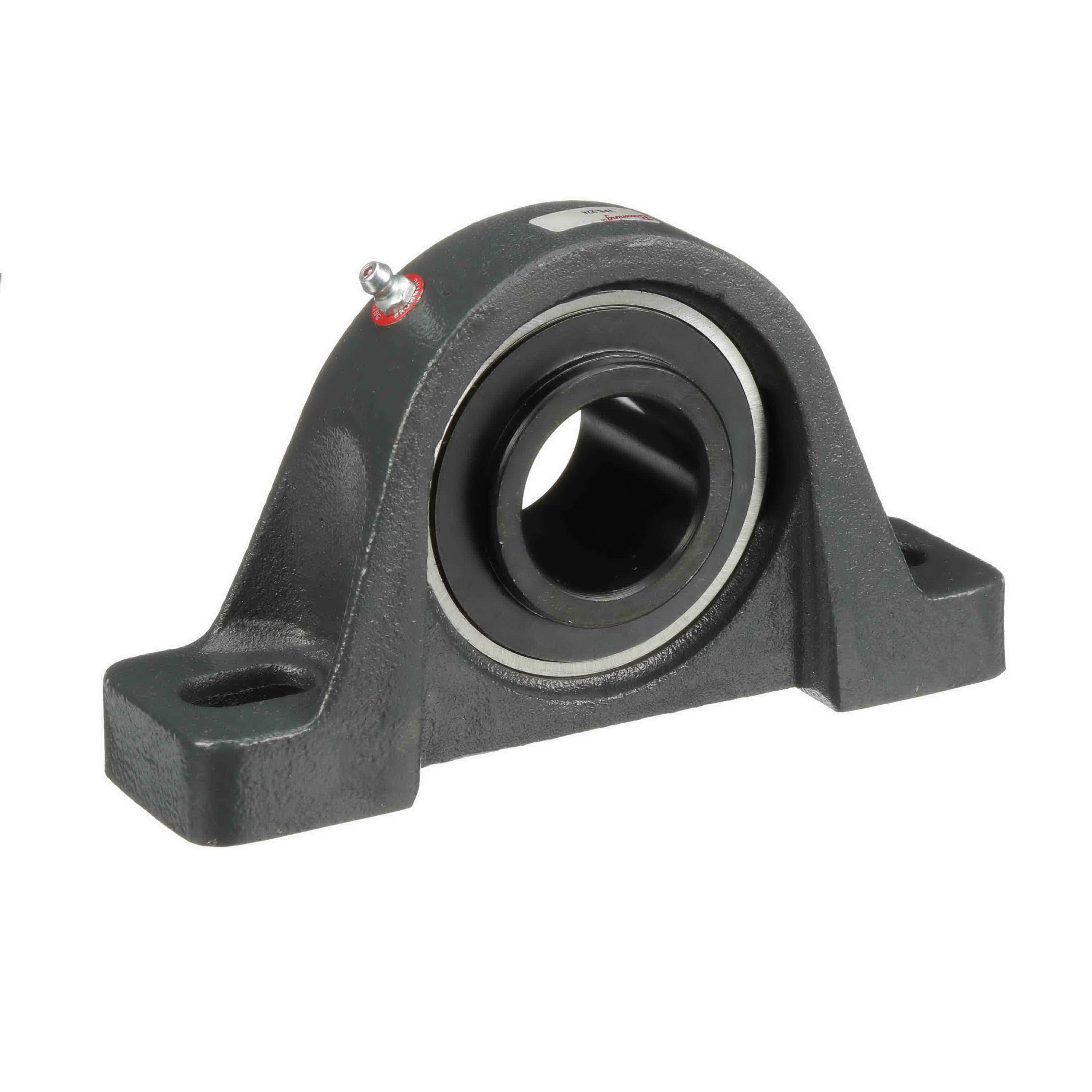

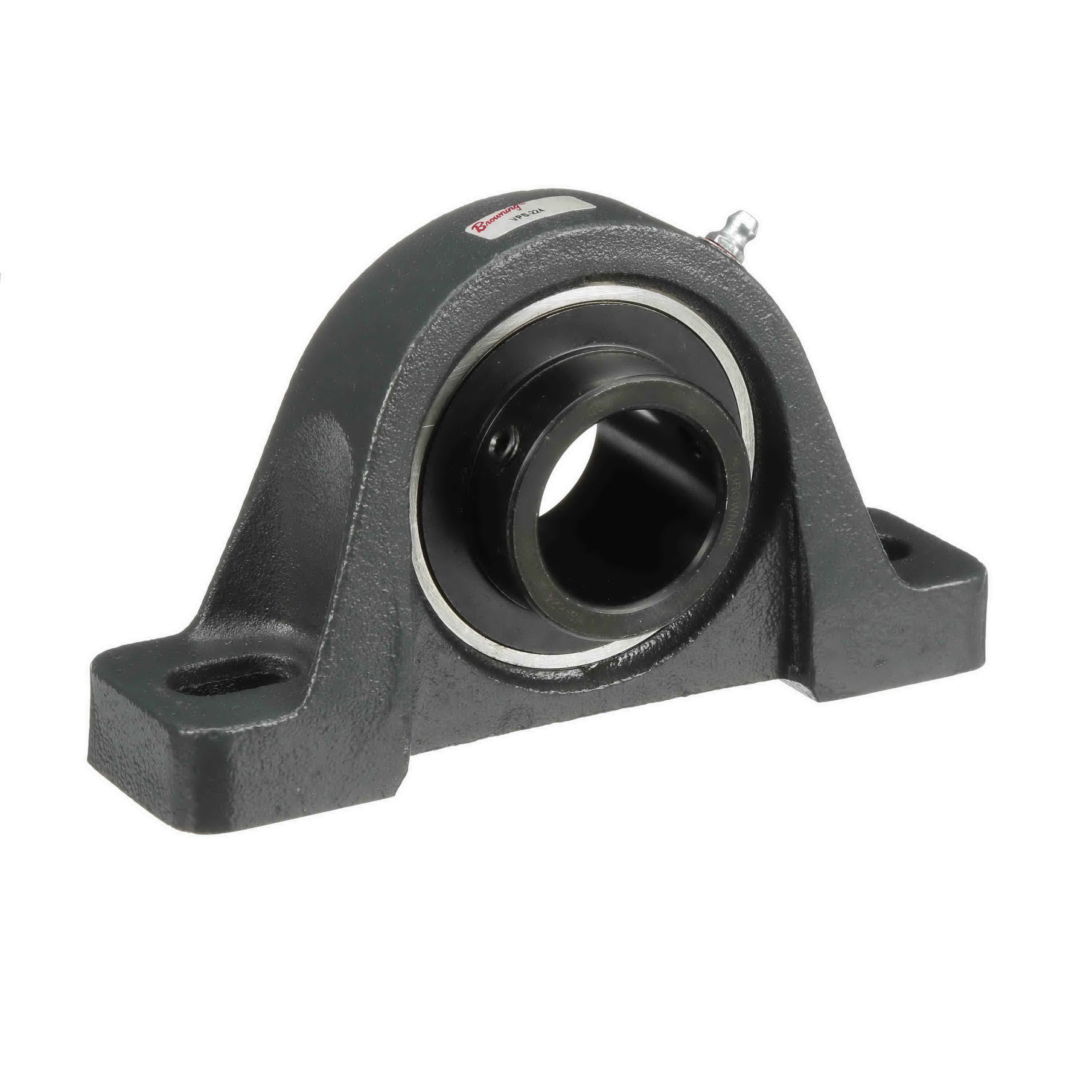

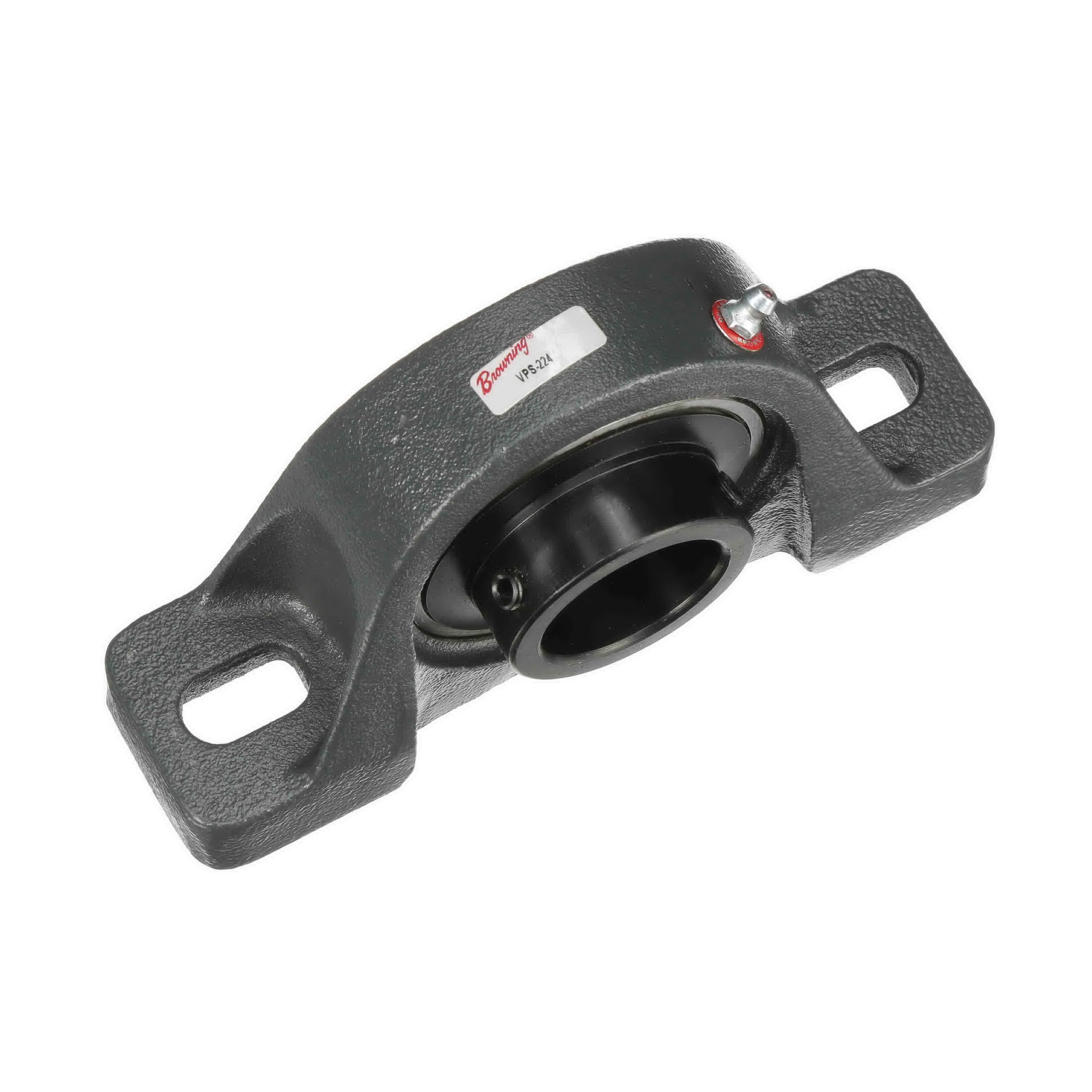

Browning® VPS 200 Series VPS-224 2-Bolt Pillow Block Ball Bearing, 1-1/2 in Dia Bore, 2 in Base to Bore Centerline
- Item ID: VPS224
- Min. Order Qty: 1
- : 767817
- Item ID: VPS224
- Brand: Browning®
-
-
Browning® 2-Bolt Pillow Block Ball Bearing, Series: VPS 200 Series, 1-1/2 in Bore Diameter, 0.813 in Flange Thickness, 1.938 in Bearing Width, 1.938 in Base Width, 1-15/16 in Housing Width, 4-7/8 to 5-7/8 in Bolt Center-to-Center Length, 2 in Base to Bore Centerline, 1/2 in Bolt Size, 7340 lb Dynamic, 4467 lb Static Load, 3500 rpm Maximum Speed, Seal Closure, Ball Rolling Element, Standard, Contact, Flinger Seal Type, Set Screw Locking Device, Steel Bearing Material, Gray, -20 to 200 deg F, 7-1/8 in L x 1-15/16 in W x 4 in H
- Powder-coat epoxy cast iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
| Base Width | : | 1.938 in |
| Base to Bore Centerline | : | 2 in |
| Bearing Material | : | Steel |
| Bearing Width | : | 1.938 in |
| Bolt Center-to-Center Length | : | 4-7/8 to 5-7/8 in |
| Bolt Size | : | 1/2 in |
| Bore Diameter | : | 1-1/2 in |
| Closure Type | : | Seal |
| Color | : | Gray |
| Dimensions | : | 7-1/8 in L x 1-15/16 in W x 4 in H |
| Duty Type | : | Standard |
| Flange Thickness | : | 0.813 in |
| Housing Width | : | 1-15/16 in |
| Load Capacity | : | 7340 lb Dynamic, 4467 lb Static |
| Locking Device | : | Set Screw |
| Maximum Speed Rating | : | 3500 rpm |
| Rolling Element | : | Ball |
| Seal Type | : | Contact, Flinger |
| Series | : | VPS 200 Series |
| Temperature Rating | : | -20 to 200 deg F |
Browning® VPS-224
