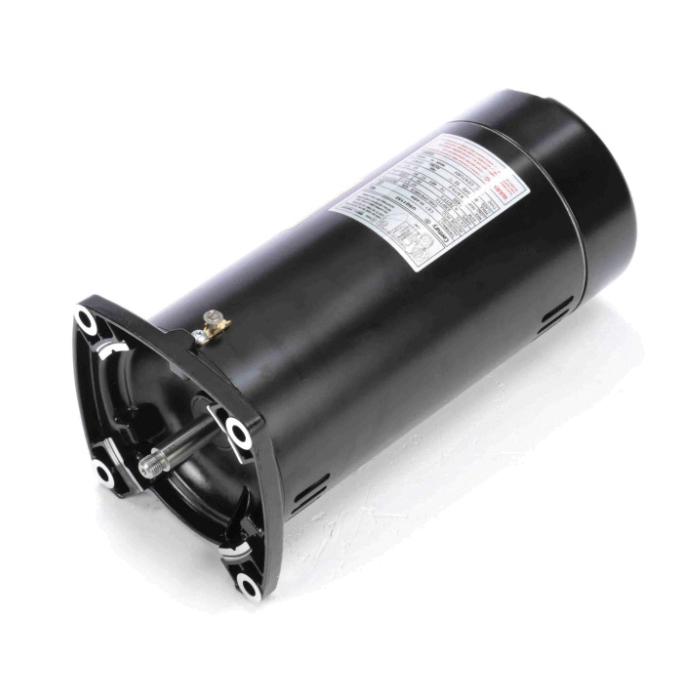

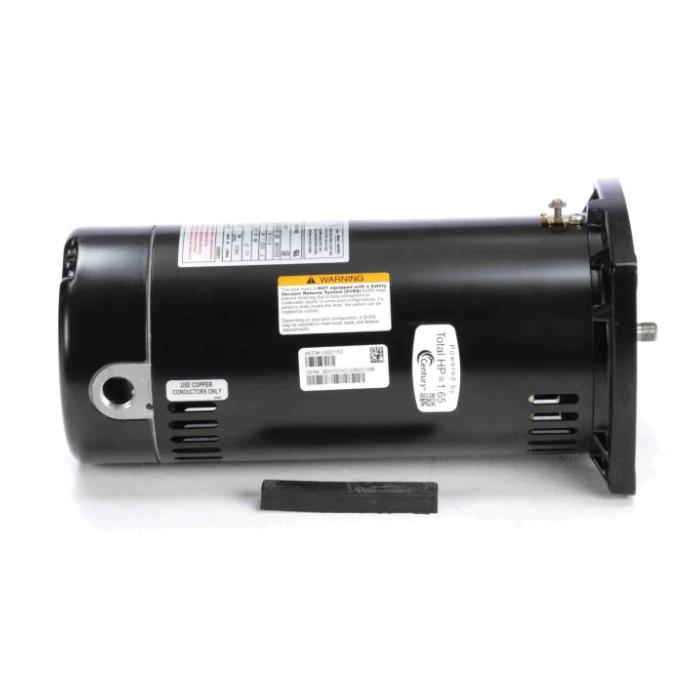

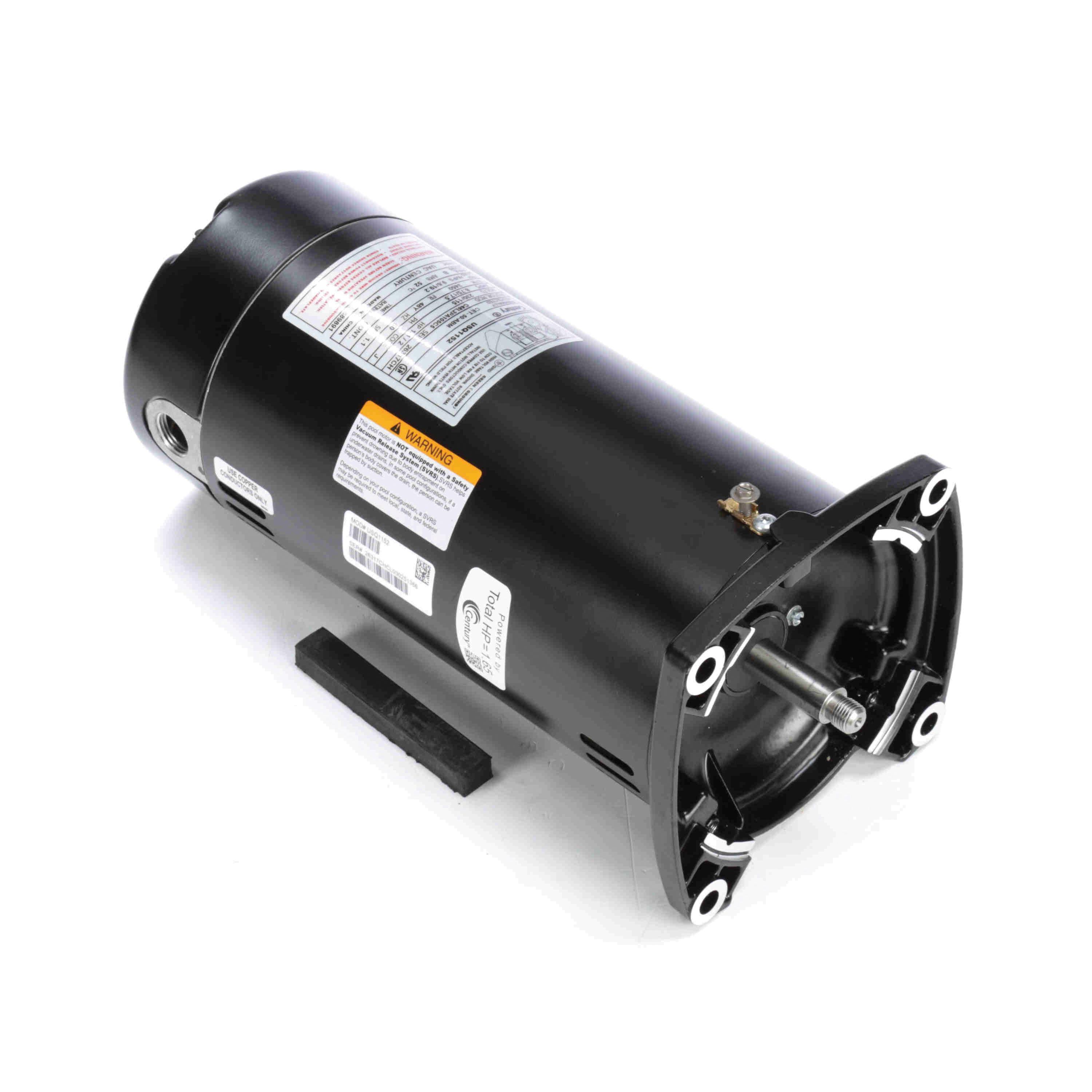

Century® USQ1152 Pool Pump Motor, Continuous Duty, 115/230 V, 8.75/17.5 A, 1 ph, 1-1/2 hp, 3600 rpm Speed
- Item ID: USQ1152
- Min. Order Qty: 1
- Item ID: USQ1152
- Brand: Century®
-
-
Century® Pool Pump Motor, Continuous, 115/230 V, 8.75/17.5 A, 60 Hz, 1 ph Phase, 1.1 kW, 1-1/2 hp, 3600 rpm, 1 Speed, CCW Rotation, 5/8 in Dia x 15/16 in L Shaft, Ball Bearing, Insulation Class: Class B, 1.1 Service Factor, Open Drip-Proof Motor Enclosure, 50 deg C, Square Flange Mounting, Steel Housing, 5.6 in Dia x 13.82 in L, Additional Information: 2-Pole, 48Y Frame, Automatic Thermal Protection, Cap Start Motor, Horizontal-Mount
- Capacitor start
- 303 stainless steel shaft
| Additional Information | : | 2-Pole, 48Y Frame, Automatic Thermal Protection, Cap Start Motor, Horizontal-Mount |
| Amperage Rating | : | 8.75/17.5 A |
| Bearing Type | : | Ball |
| Dimensions | : | 5.6 in Dia x 13.82 in L |
| Duty Type | : | Continuous |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1-1/2 hp |
| Housing Material | : | Steel |
| Insulation Class | : | Class B |
| Motor Enclosure Type | : | Open Drip-Proof |
| Mounting Type | : | Square Flange |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 1.1 kW |
| Rotation Type | : | CCW |
| Service Factor | : | 1.1 |
| Shaft Size | : | 5/8 in Dia x 15/16 in L |
| Speed Rating | : | 3600 rpm |
| Temperature Rating | : | 50 deg C |
| Voltage Rating | : | 115/230 V |
Century® USQ1152
