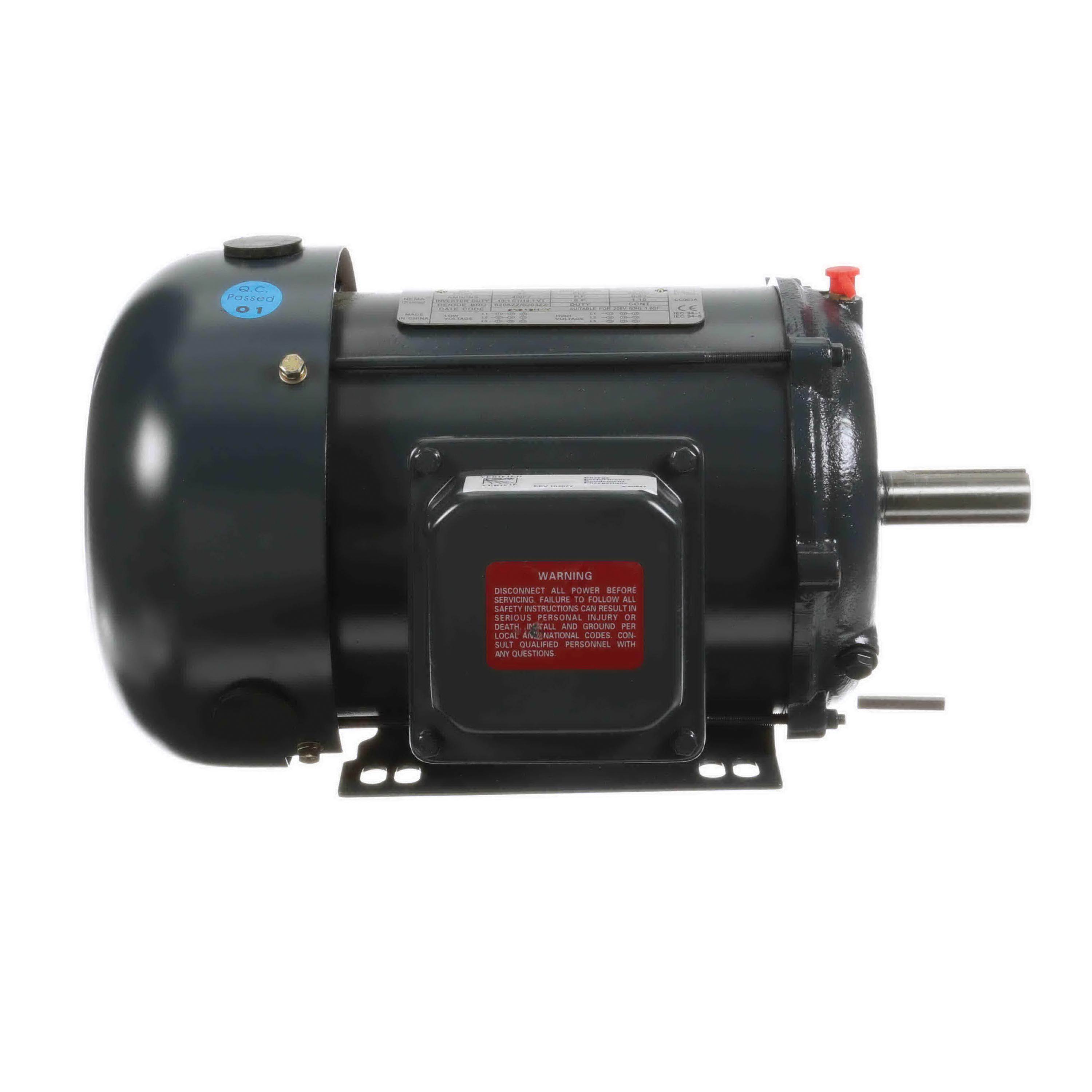

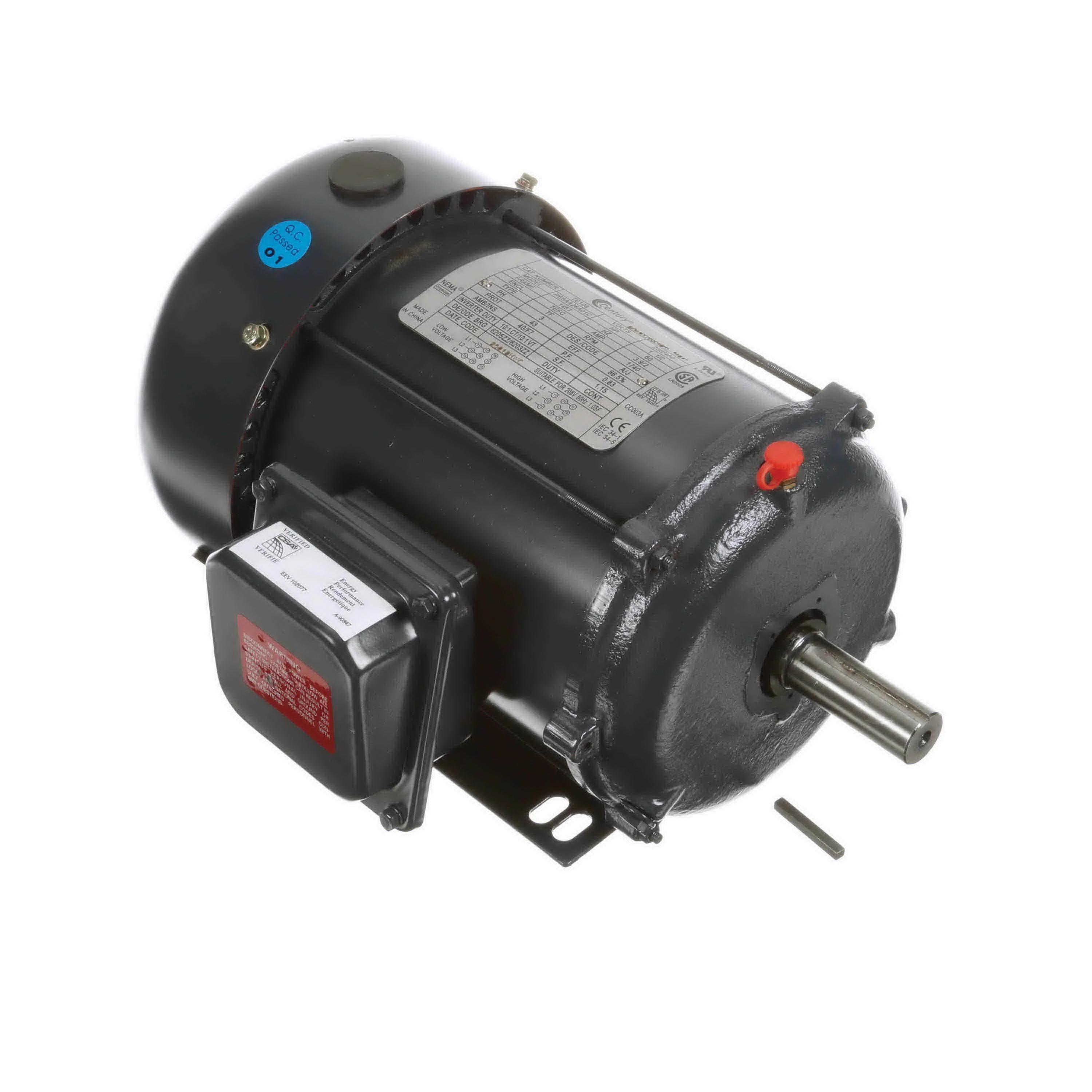

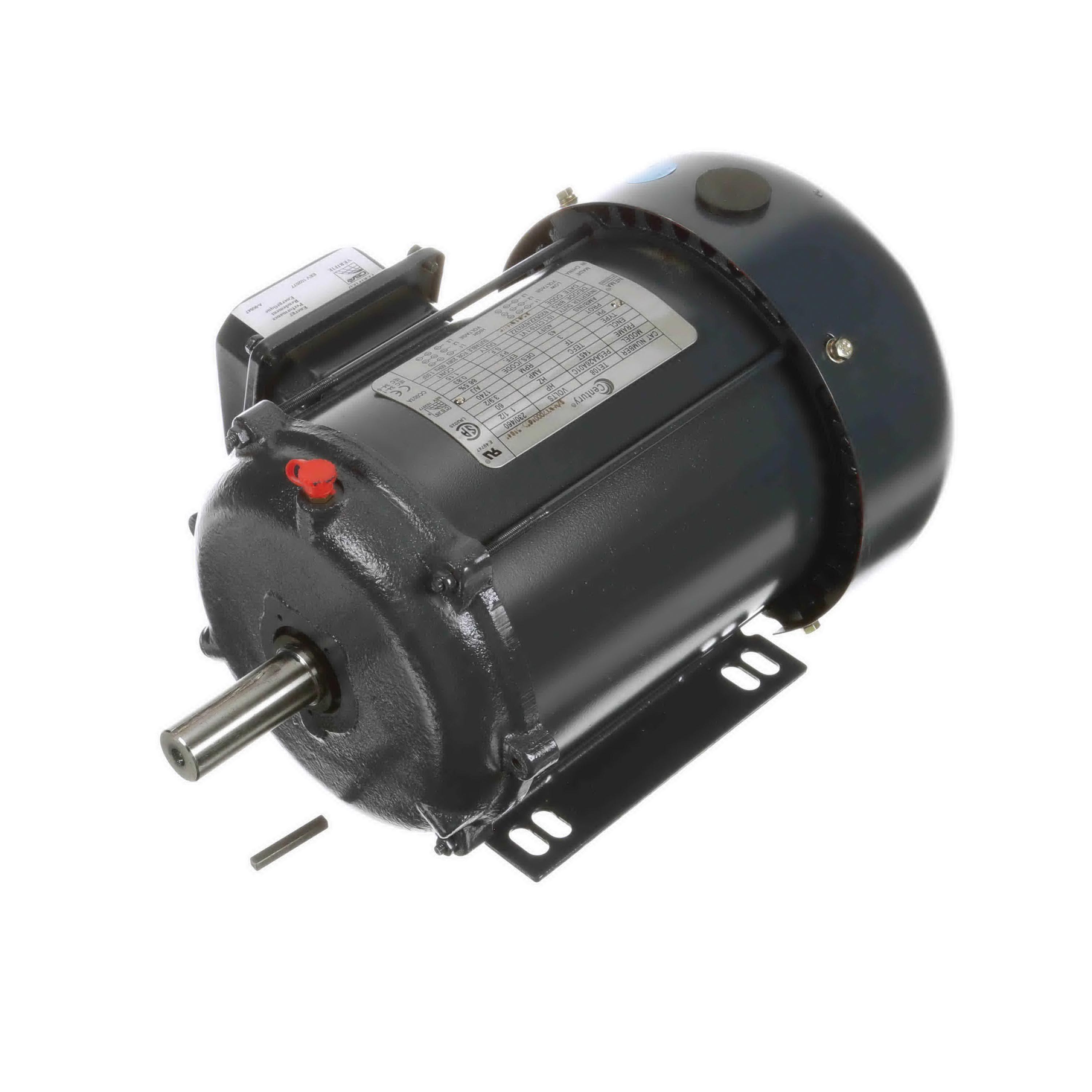

Century® 145T TE108 Motor, 208 to 230/460 V, 1.95 A, 1.5 hp, 1800 rpm Speed, 1.1 kW, 3 ph, 60 Hz, 6-3/4 in Frame
- Item ID: TE108
- Min. Order Qty: 1
- Item ID: TE108
- Brand: Century®
-
-
Century® Motor, Model: 145T, 208 to 230/460 V, 1.95 A, 1.5 hp, 1800 rpm, 1.1 kW, 3 ph Phase, 60 Hz, Totally Enclosed Fan Cooled Motor Enclosure, 6-3/4 in Frame, 7/8 in Dia x 2-1/4 in L Shaft, CCW Rotation, 1 Speed, Ball Bearing, 4 Poles, Continuous, Across The Line Starting Method, Class F Insulation Class, NEMA Premium® Motor Efficiency Group, 1.15 Service Factor, Rigid Base Mounting, Rolled Steel, 40 deg C, 14.2 in L
- Inverter-duty 10:1 variable torque and 10:1 constant torque
- 1.15 service factor on sinewave, 1.0 service factor on IGBT power
- Standard assembly F1, reversible to F2 assembly
| Amperage Rating | : | 1.95 A |
| Bearing Type | : | Ball |
| Dimensions | : | 14.2 in L |
| Duty Type | : | Continuous |
| Frame Size | : | 6-3/4 in |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1.5 hp |
| Insulation Class | : | Class F |
| Material | : | Rolled Steel |
| Model | : | 145T |
| Motor Efficiency Group | : | NEMA Premium® |
| Motor Enclosure Type | : | Totally Enclosed Fan Cooled |
| Mounting Type | : | Rigid Base |
| Number of Poles | : | 4 |
| Number of Speeds | : | 1 |
| Phase | : | 3 ph |
| Power Rating | : | 1.1 kW |
| Rotation Type | : | CCW |
| Service Factor | : | 1.15 |
| Shaft Size | : | 7/8 in Dia x 2-1/4 in L |
| Speed Rating | : | 1800 rpm |
| Starting Method | : | Across The Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 208 to 230/460 V |
