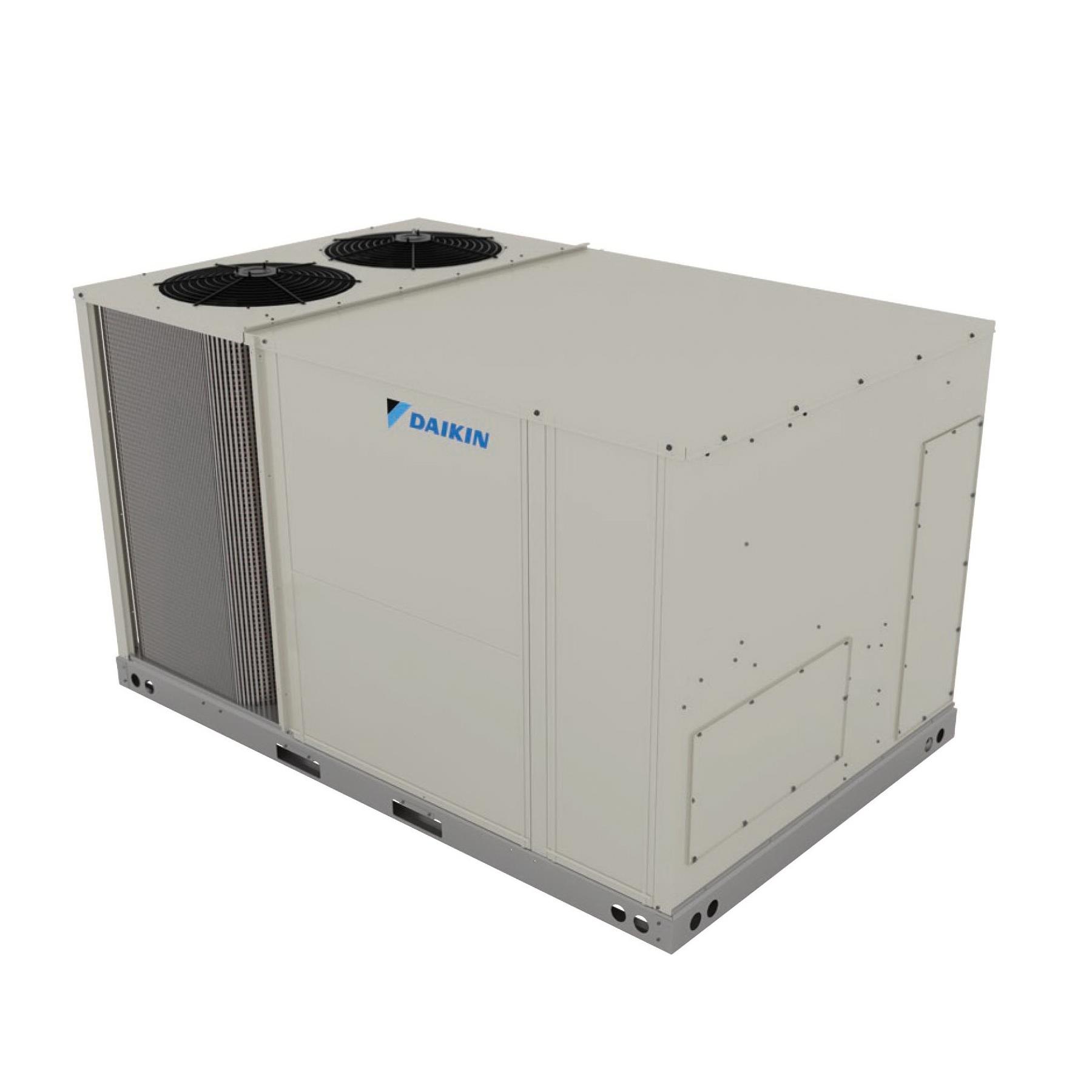

The DBH heat pump packaged rooftop units are built to perform, with features and options that help provide low installation and operation costs, superior indoor air quality, efficient operation and longevity.

DAIKIN Heat Pump Packaged Unit, Series: DBH Series, 112000 Btu/hr Cooling BTU Rating, 460 V, 22 A, 2 hp, 1/3 hp, 60 Hz, 3 ph, 1150/1160/1740 rpm Rotational Speed, Scroll Compressor, 4000 cfm Rating, 12.5 IEER Rating, 11 EER Rating, Base Efficiency, R-410A Refrigerant, 2 Stages, 25 A Fuse Rating, 81.8 dBA Sound Level, Rooftop Mounting, Belt Drive, 20 x 25 x 2 in, 25 x 25 x 2 in Filter, Steel, Galvanized/Powder-Coated, 54-1/4 in H x 93-3/4 in W x 60-3/8 in D

• Cabinet construction - DAIKIN packaged rooftop units are made with high quality galvanized steel with a powder paint finish to provide higher corrosion resistance
• Compressor - high performance, low noise scroll compressors to match the required total load
• Supply fan - indoor forward curb fans paired with belt drive motors provide an easy in the field belt and pulley adjustment for airflow control
• All units use large face area outdoor coils, constructed with seamless copper tubes, mechanically bonded into aluminum plate-type fins with full drawn collars to completely cover the tubes for high operating efficiencies
• Controls and wiring - packaged rooftop units come equipped with a well organized, large, easy-to-use weather-proof internal control box with easy access, for a better user experience
• Filtration - unit provides a draw-through filter section as standard for better air quality and long-lasting component maintenance
• Heating section - wide ranging of electric heat selections effectively handle most comfort heating demand from morning warm-up control to full heat
• Electric heat - ETL approved electric heat is factory assembled, installed and tested
• Electrical - units are completely wired and tested at the factory to provide faster commissioning and start-up
