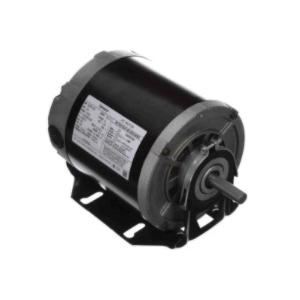

Marathon® GF2024D Blower Motor, 115/208 to 230 VAC, 4.6/2.3 A, 1/4 hp, 1725 rpm Speed, 0.19 kW, 1 ph -Phase, 60 Hz
- Item ID: GF2024D
- Min. Order Qty: 1
- Item ID: GF2024D
- Brand: Marathon®
-
-
Marathon® Blower Motor, 115/208 to 230 VAC, 4.6/2.3 A, 1/4 hp, 1725 rpm, 0.19 kW, 1 ph Phase, 60 Hz, Open Air Over Motor Enclosure, 48 Frame, 1/2 in Dia x 1-1/2 in L Shaft, Counter-Clockwise Rotation, 1 Speed, Keyed Shaft Type, Sleeve Bearing, Cradle Mounting, Belt Drive, Continuous, B Insulation Class, 4 Poles, 1.35 Service Factor, Across the Line Starting Method, Rolled Steel, 40 deg C, 9.21 in L
| Amperage Rating | : | 4.6/2.3 A |
| Bearing Type | : | Sleeve |
| Dimensions | : | 9.21 in L |
| Drive Type | : | Belt |
| Duty Type | : | Continuous |
| Frame Size | : | 48 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/4 hp |
| Insulation Class | : | B |
| Material | : | Rolled Steel |
| Motor Enclosure Type | : | Open Air Over |
| Mounting Type | : | Cradle |
| Number of Poles | : | 4 |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 0.19 kW |
| Rotation Type | : | Counter-Clockwise |
| Service Factor | : | 1.35 |
| Shaft Size | : | 1/2 in Dia x 1-1/2 in L |
| Shaft Type | : | Keyed |
| Speed Rating | : | 1725 rpm |
| Starting Method | : | Across the Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115/208 to 230 VAC |
No documents
Marathon® GF2024D
