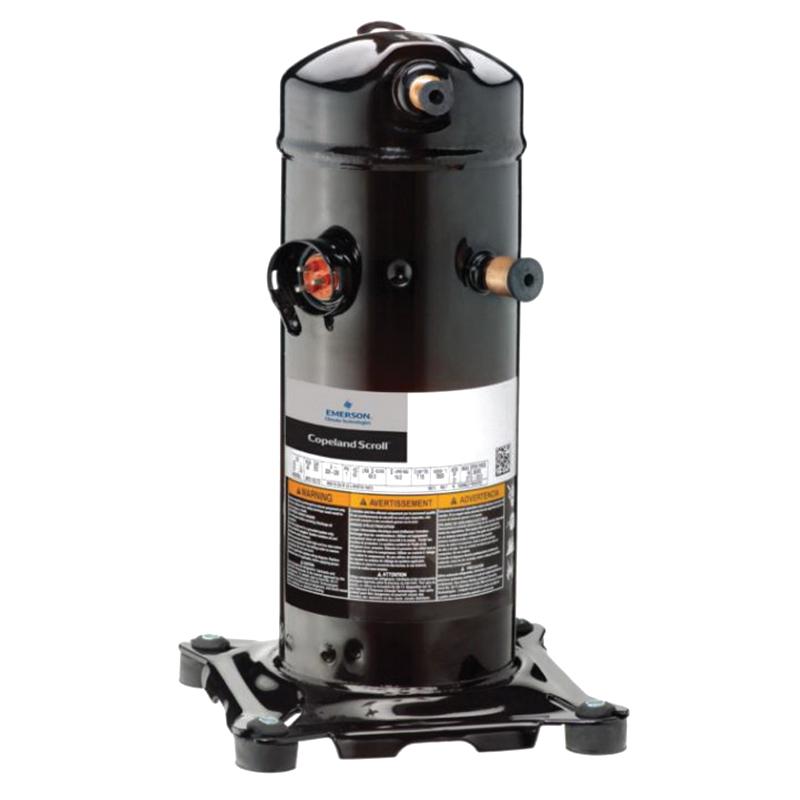

Copeland™ ZR108KCE-TF5-950 Scroll Compressor, 9 ton, 208 to 230 VAC, 9220 W, 9 hp
- Item ID: ZR108KCETF5950
- Min. Order Qty: 1
- Item ID: ZR108KCETF5950
- Brand: Copeland™
-
-
Copeland™ Scroll Compressor, Series: ZR, 108000 Btu/hr BTU, 9 ton, 1-3/8 in Stub Suction Line, 7/8 in Stub Discharge Line, 1540 - 1580 lb/hr, 17.66 cu-ft/min, 208 - 230 VAC, 28 A, 9220 W, 9 hp, R-22, R-407C, R-134A, HCFC Refrigerant, 3500 rev/min Speed, 80 - 85 dBA, 11.5 - 19.4 EER, POE-AK/DA, 3MA/SP32 Compressor Oil, 45 deg F Evaporator, 100-130 deg F Condensing, 65 deg F Return Gas, 85-115 F Liquid, 10.38 in L x 11.23 in W x 21 in H
- General 3-lead single voltage, 6-lead part winding (575 V)
- Internal inherent protection
- Compressor family Series
- Model variation
- 110 oz initial oil charge, 106 oz oil recharge
- 33.6 A-rated load, 47 A maximum continuous, 225 A locked rotor
- 7-1/2 in L x 7-1/2 in W x 21-3/4 in H mounting
- Bill of material-terminal cover, t-block, mounting parts
- 8.72 cu-in/rev displacement
| Amperage Rating | : | 28 A |
| BTU Rating | : | 108000 Btu/hr |
| CFM Rating | : | 17.66 cfm |
| Compressor Oil | : | POE-AK/DA, 3MA/SP32 |
| Dimensions | : | 10.38 in L x 11.23 in W x 21 in H |
| Discharge Line Size | : | 7/8 in Stub |
| EER Rating | : | 11.5 to 19.4 |
| Flow Rate | : | 1540 to 1580 lb/hr |
| Power Rating | : | 9220 W, 9 hp |
| Refrigerant Type | : | R-22, R-407C, R-134A, HCFC |
| Series | : | ZR |
| Sound Level | : | 80 to 85 dBA |
| Speed Rating | : | 3500 rpm |
| Suction Line Size | : | 1-3/8 in Stub |
| Temperature Rating | : | 45 deg F Evaporator, 100-130 deg F Condensing, 65 deg F Return Gas, 85 to 115 F Liquid |
| Tonnage | : | 9 ton |
| Voltage Rating | : | 208 to 230 VAC |
Copeland™ ZR108KCE-TF5-950
