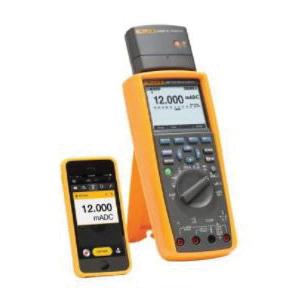

The Fluke® 289 is the next generation high-performance industrial logging multimeter. This Fluke® Connect®-compatible DMM is designed to solve complex problems in electronics, plant automation, power distribution and electro-mechanical equipment. Let the 289 be your watchdog for systems or processes while you are off doing other jobs. It provides the ability to log data and graphically review up 10000 recorded events and logged readings with on board trend capture. Zoom on trend provides a 14x zoom to view and analyze data without needing a PC. Because the 289 is Fluke® Connect®-compatible you can set it up with the ir3000 FC wireless connector (sold separately) to communicate with your iOS and Android smart devices through the Fluke® Connect® mobile App and monitor readings from a remote location. Or you can share readings with your team in an instant anytime, from anywhere with share Live™ video call. It can help you solve problems faster and minimize downtime.

Fluke® True RMS Data Logging Multimeter, 1000 V, 10 mA, 50 mV to 1000 V Measuring, Dot Matrix Display, Alkaline Battery, 0.4%, 0.025% Voltage Accuracy, 0.05%, 0.6% Current Accuracy, 0.05% Resistance Accuracy, 1% Capacitance Accuracy, 1% Temperature Accuracy, 0.005% Frequency Accuracy, 3.1 V Diode Test, 1 to 99% Duty Cycle, 0 to 45%, 0 to 65%, 0 to 90% Humidity Rating, -20 to 55 deg C, >120 dB Common Mode Rejection Ratio, >60 dB Normal Mode Rejection Ratio, 2.38 in L x 4.03 in W x 8.75 in H

• Share results with your team using ShareLive™ video call (requires ir3000 FC wireless connector [sold separately] and no-cost Fluke Connect mobile app)

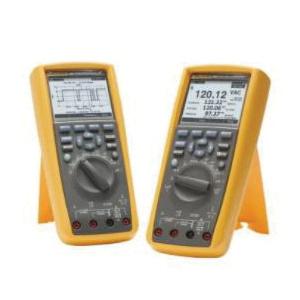

• TrendCapture graphically displays logged data session to quickly determine whether anomalies may have occurred
• Zoom on trend provides unprecedented ability to view and analyze TrendCapture data, zoom in up to 14 times
• Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy
• Low pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment
• Low impedance voltage function for eliminating ghost voltages, also recommended when testing for absence or presence of live power
• Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event
• Large 50000 count, 1/4 VGA dot matrix display with white backlight
• Logging function with expanded memory for unattended monitoring of signals over time
• Save multiple logging sessions before PC download is necessary
• Two terminal 50 Ohm range with 1 mOhm resolution, 10 mA source current, useful for measuring and comparing differences in motor winding resistance or contact resistance
• On board help screens for measurement functions, unsure about a function go to that function and press the i-button
• Real time clock for automatic time stamping of saved readings
• Relative mode to remove test lead resistance from low ohms or capacitance measurements
• True-RMS AC voltage and current for accurate measurements on non-linear signals
• Peak capture to record transients as fast as 250 us
