The FM1 Series timer modules are designed to be integrated inside of a machine control panel, circuit board or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 hp, 240 VAC. The FM1 is designed for 24 hr or 7 days control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security or pump system. The FM1 Series is ideal for 12, 24 VAC/VDC,120 or 208/240 VAC 1-ph general applications.

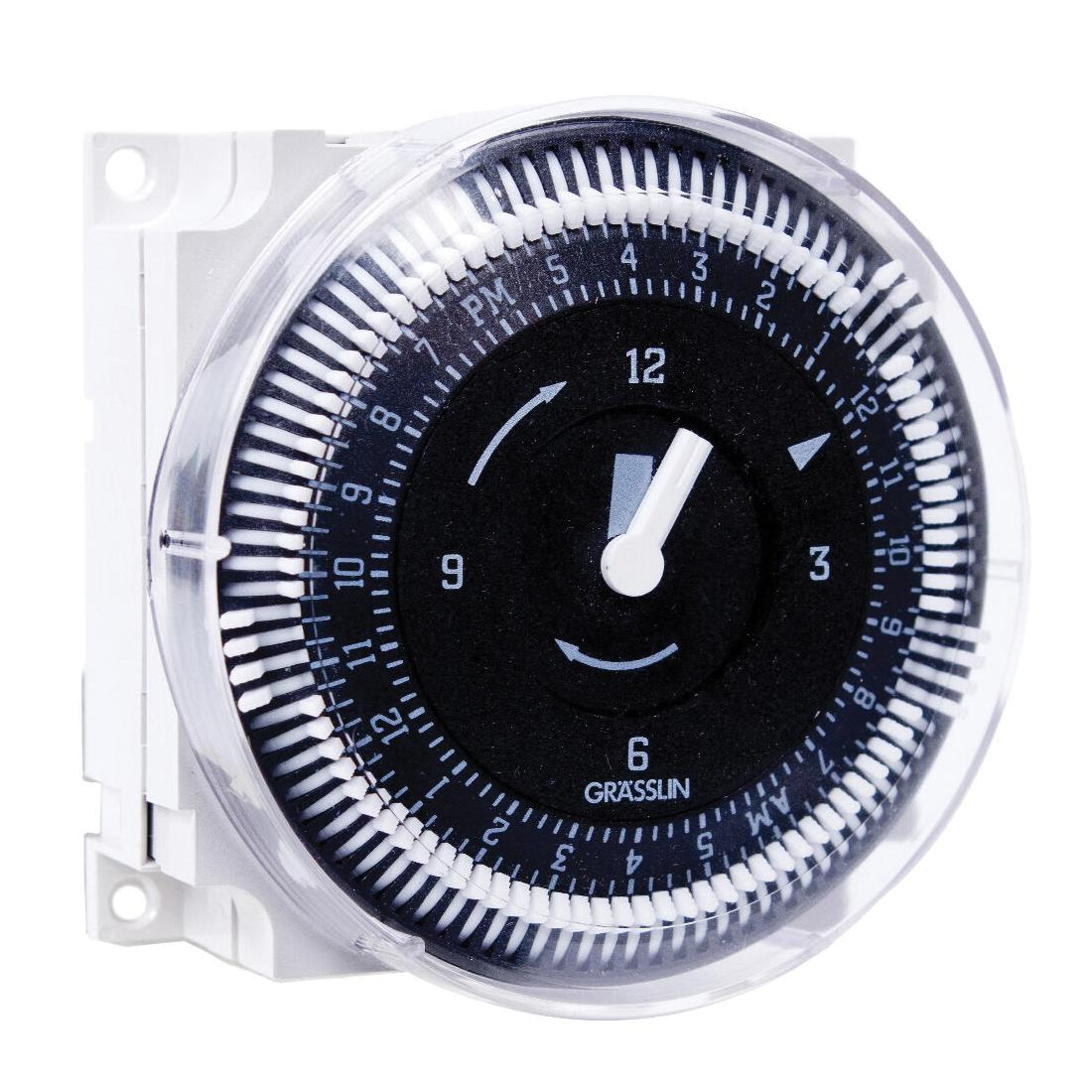

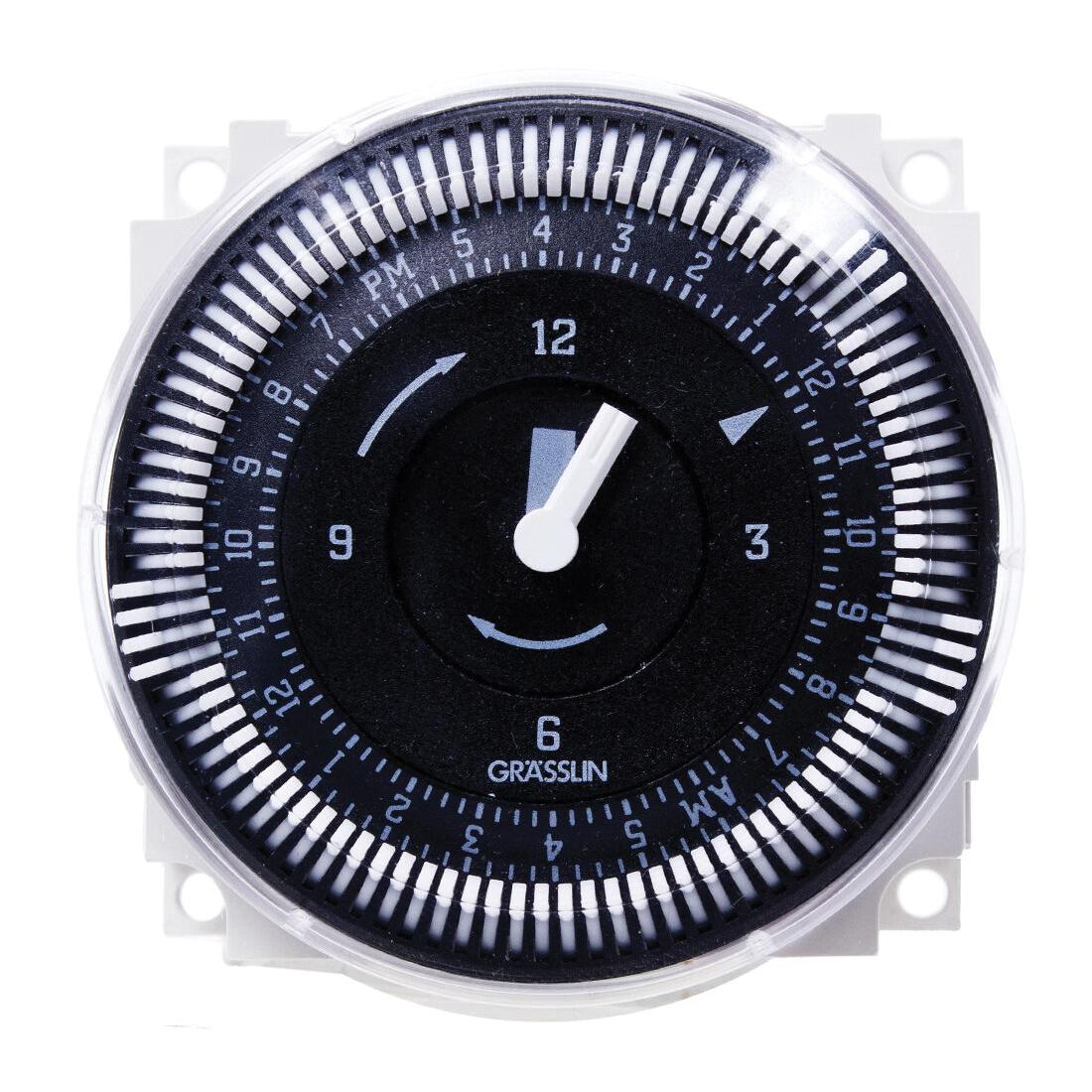

Intermatic® Electromechanical Timer, 120/240 VAC, 21 A, 50/60 Hz, 1 hp, 2 hp HP Rating, 2 Pole, SPDT, 15 min Minimum Time Setting, 24 hr Maximum Time Setting, 48 cycles Maximum On/Off Cycles, 96 Number of Trippers, Quick-Connect Terminal Connection Type, NEMA 3R, -4 to 131 deg F Operating, Panel Mount, 2-23/64 in H x 2-23/64 in W x 1-1/4 in D

• Captive trippers with 15-min intervals on 24 hr models and 2 hr intervals on 7 days models
• 72 hr carry over battery backup on Q models
• Noise immune ideal for robust applications
• Synchronous drive or quartz drive Q models with self-recharging battery backup
• True clock face, easy-to-set
• Compact size
