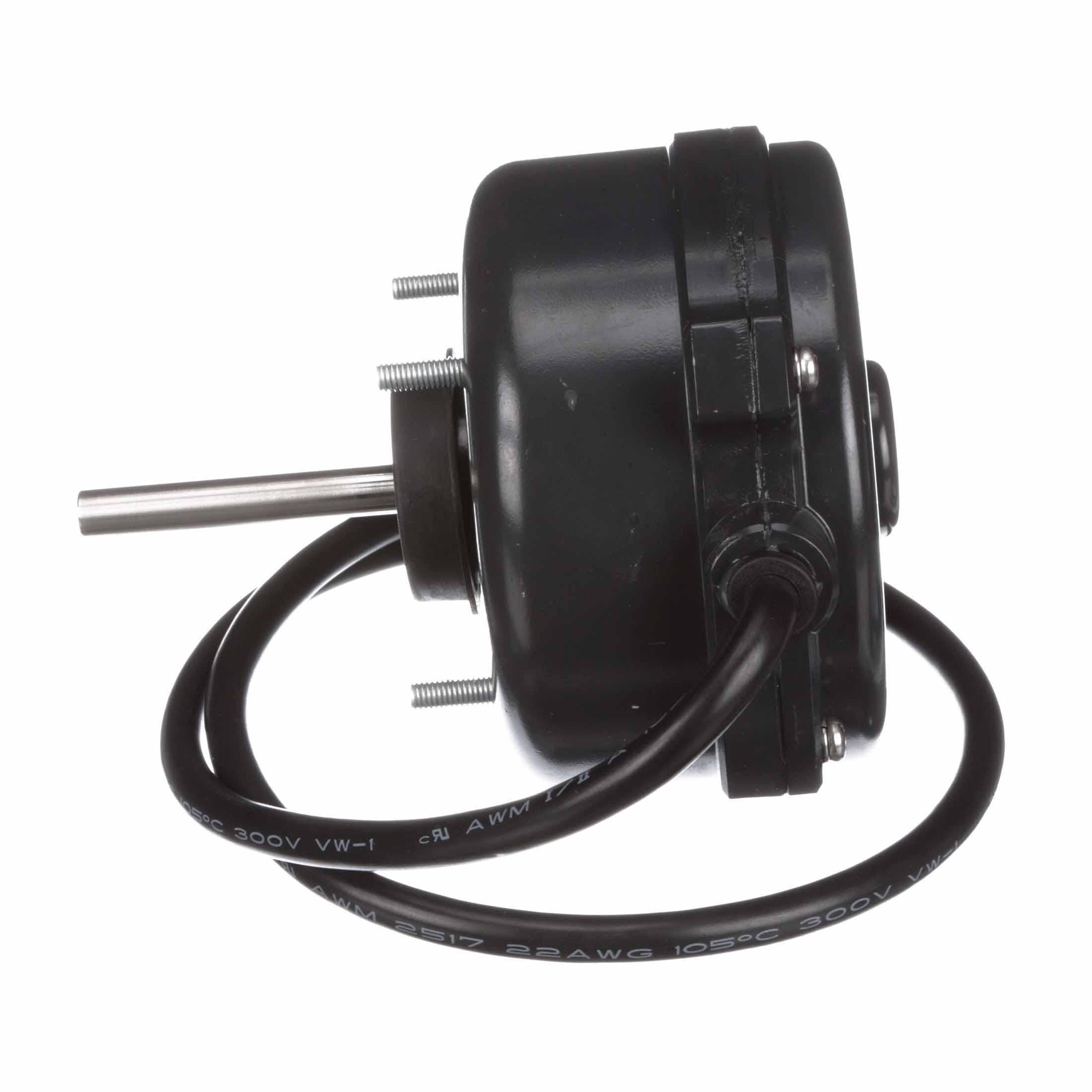

US Motors® EC5404D Evaporator Fan Motor, 115 to 230 VAC, 0.6 to 0.72/0.4 to 0.67 A, 1/15 hp, 1/25 hp, 50 to 30 W
- Item ID: EC5404D
- Min. Order Qty: 1
- Item ID: EC5404D
- Brand: US Motors®
-
-
US Motors® Evaporator Fan Motor, 115 to 230 VAC, 0.6 to 0.72/0.4 to 0.67 A, 1/15 hp, 1/25 hp, 1550 to 1625 rpm, 50 to 30 W, 1 ph Phase, 50 Hz, 60 Hz, Totally Enclosed Air Over Motor Enclosure, 33 Frame, 0.313 in Dia Shaft, Clockwise Shaft End Rotation, 1 Speed, 70 % Efficiency, Ball Bearing, Stud Mounting, B Insulation Class, 1 Service Factor, -40 to 55 deg C, 3.3 in Dia x 4.875 in L
- IP66 dust-tight with all angle moisture protection
- High-efficiency upto 70%
- Suitable for use in evaporator
- Dual voltage - no connection change required
- Low-profile body-style
- Thermal overload protection
- Standard 10-32 thread mounting studs
- 27 in lyall plug
- Robust ball bearing system
| Amperage Rating | : | 0.6 to 0.72/0.4 to 0.67 A |
| Bearing Type | : | Ball |
| Dimensions | : | 3.3 in Dia x 4.875 in L |
| Efficiency | : | 70 % |
| Frame Size | : | 33 |
| Frequency Rating | : | 50 Hz, 60 Hz |
| HP Rating | : | 1/15 hp, 1/25 hp |
| Insulation Class | : | B |
| Motor Enclosure Type | : | Totally Enclosed Air Over |
| Mounting Type | : | Stud |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 50 to 30 W |
| Rotation Type | : | Clockwise Shaft End |
| Service Factor | : | 1 |
| Shaft Size | : | 0.313 in Dia |
| Speed Rating | : | 1550 to 1625 rpm |
| Temperature Rating | : | -40 to 55 deg C |
| Voltage Rating | : | 115 to 230 VAC |
No documents
