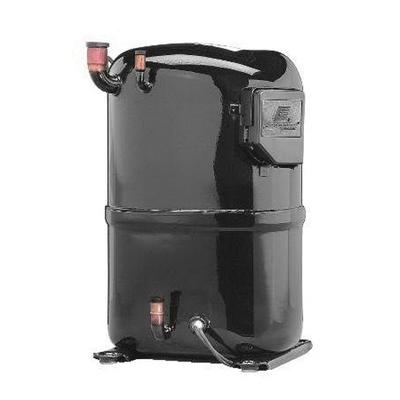

Copeland™ CR22K6-PFV-875 Hermetic Compressor, 2 ton, 208 to 230 VAC, 2040 W, 1-3/4 hp, R-22, R-407C Refrigerant
- Item ID: CR22K6PFV875
- Min. Order Qty: 1
- Item ID: CR22K6PFV875
- Brand: Copeland™
-
-
Copeland™ Hermetic Compressor, Series: CR, 22000 Btu/hr BTU, 2 ton, 3/4 in Stub Suction Line, 1/2 in Stub Discharge Line, 323 - 380 lb/hr, 5.04 cu-ft/min, 208 - 230 VAC, 9.2 A, 2040 W, 1-3/4 hp, R-22, R-407C Refrigerant, 3500 rev/min Speed, Mineral Compressor Oil, 45 deg F Evaporator, 130 deg F Condensing, 65 deg F Return Gas, 95 deg F Liquid, 10.3 in L x 9.1 in W x 13.3 in H
- Capacitor run-permanent split capacitor motor type
- Internal inherent protection-one-protector (line break) Use with contactor
- Compressor family Series
- Model variation
- 45 oz initial oil charge, 43 oz oil recharge
- 7-1/2 in L x 7-1/2 in W x 13.56 in H mounting
- 10.9 A-rated load, 50 A locked rotor, 15.3 A minimum circuit and 12.2 A maximum operating
- 2.49 cu-in/rev displacement
- Bill of material-42 in molded plug wiring harness, mounting parts, fitting kit, crank case heater and installation instructions
| Amperage Rating | : | 9.2 A |
| BTU Rating | : | 22000 Btu/hr |
| CFM Rating | : | 5.04 cfm |
| Compressor Oil | : | Mineral |
| Dimensions | : | 10.3 in L x 9.1 in W x 13.3 in H |
| Discharge Line Size | : | 1/2 in Stub |
| Flow Rate | : | 323 to 380 lb/hr |
| Power Rating | : | 2040 W, 1-3/4 hp |
| Refrigerant Type | : | R-22, R-407C |
| Series | : | CR |
| Speed Rating | : | 3500 rpm |
| Suction Line Size | : | 3/4 in Stub |
| Temperature Rating | : | 45 deg F Evaporator, 130 deg F Condensing, 65 deg F Return Gas, 95 deg F Liquid |
| Tonnage | : | 2 ton |
| Voltage Rating | : | 208 to 230 VAC |
Copeland™ CR22K6-PFV-875
