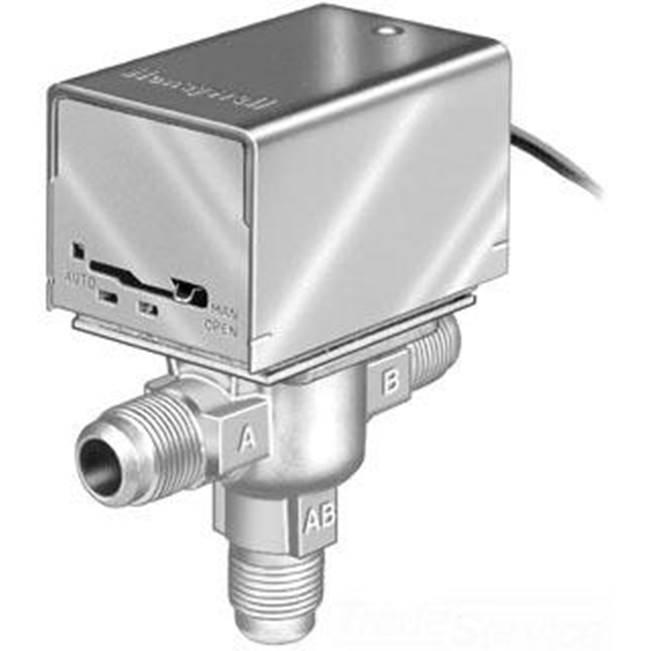

resideo V4044 V4044A1001/U Motorized Valve, 1/2 in, Flared, 4 Cv, Brass, Contains Lead
- Item ID: V4044A1001
- Min. Order Qty: 1
- Item ID: V4044A1001
- Brand: resideo
-
-
These Honeywell home on-off and diverting line voltage valves from resideo consist of an actuator motor and valve assembly for controlling the flow of hot or chilled water. They operate at 120 VAC and 60 Hz.
resideo Motorized Valve, Model: V4044, 1/2 in Nominal, Flared Connection, Number of Ways/Position: 2-Ways, 3-Position, 125 psi, 4 Cv Flow Coefficient (Cv), Stainless Steel Stem, EPDM Packing, Rubber Disc, Brass Seat, EPDM Seal, Brass, On-Off Actuator, 30 s Cycle Time, 9.6 VA Power Consumption, 0.08 A, 120 V, VA Rating: 9.6 VA, Contains Lead, 40 to 200 deg F, 2.38 in L x 4.69 in W x 5.38 in H
- Hydraulic and pneumatic type, 4-11/16 in L, 1/2 in nominal size, 0.5 nominal size - decimal, 1/2 nominal size - fractional, hydraulic systems application, steam, water service, 40 to 240 deg F temperature rating
| Actuator Type | : | On-Off |
| Amperage Rating | : | 0.08 A |
| Connection Type | : | Flared |
| Cycle Time | : | 30 s |
| Dimensions | : | 2.38 in L x 4.69 in W x 5.38 in H |
| Disc Material | : | Rubber |
| Flow Coefficient (Cv) | : | 4 Cv |
| Lead-Free/Contains Lead | : | Contains Lead |
| Material | : | Brass |
| Model | : | V4044 |
| Nominal Size | : | 1/2 in |
| Number of Ways/Position | : | 2-Ways, 3-Position |
| Packing Material | : | EPDM |
| Power Consumption | : | 9.6 VA |
| Pressure Rating | : | 125 psi |
| Seal Material | : | EPDM |
| Seat Material | : | Brass |
| Stem Material | : | Stainless Steel |
| Temperature Rating | : | 40 to 200 deg F |
| VA Rating | : | 9.6 VA |
| Voltage Rating | : | 120 V |
resideo V4044A1001/U
