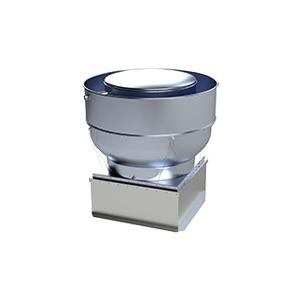

STXB-RHUL upblast belt drive centrifugal roof/sidewall exhaust fans are designed to exhaust air up to 16958 CFM in high static pressure applications to 2-3/4 in. The aluminum exterior provides an attractive appearance. Belt drive results in lower operating rev/min and sound levels, making the series STXB well suited to applications where quiet operation is important. Belt drive also permits easy performance adjustments when needed to balance the total ventilation system. The non-overloading backward inclined wheel with its higher static pressure capability makes this unit suitable for either ducted or non-ducted applications. Its roof or sidewall mounting options permit location near the area to be ventilated, allowing short duct runs and more efficient operation.

S&P Upblast Centrifugal Roof/Side Wall Exhauster, Series: STXB-RHUL, 115 V, 1/3 hp, Aluminum, Roof/Side Wall Mount, 1500 cfm, Motor Specifications: Open Drip Proof Motor, 1, 1800 rpm Speed Rating

• Heavy gauge aluminum for extra strength with pre-punched-mounting holes
• Neoprene isolators for reduction of vibration and sound
• Enclosed, ventilated motor/drive compartment isolates motor and drives from exhaust air
• Cover easily removed for quick access to motor compartment
• Water tight conduit tube for easy electrical connection
• External weatherproof disconnect is included on standard models
• Lifting lugs for easy and safe placement on roof
• Stainless steel exterior fasteners
• Dynamically balanced for smooth operation
• Machined cast iron adjustable motor pulleys
• Adjustable base for belt tensioning
• Non-static oil-resistant v-belts
• 1-speed open drip-proof motor
• Prelubricated and permanently sealed bearing
• Heavy-duty ball bearing type
