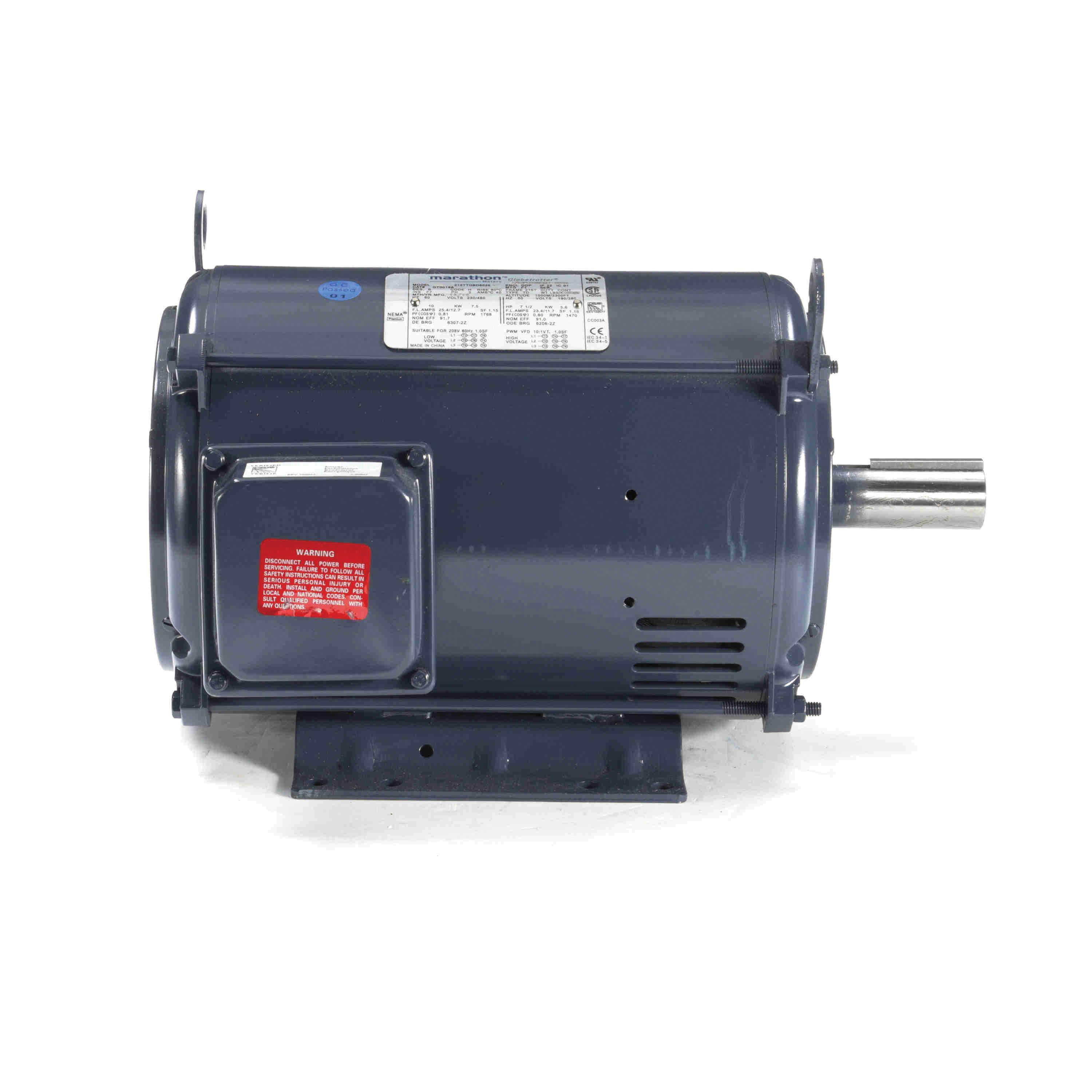

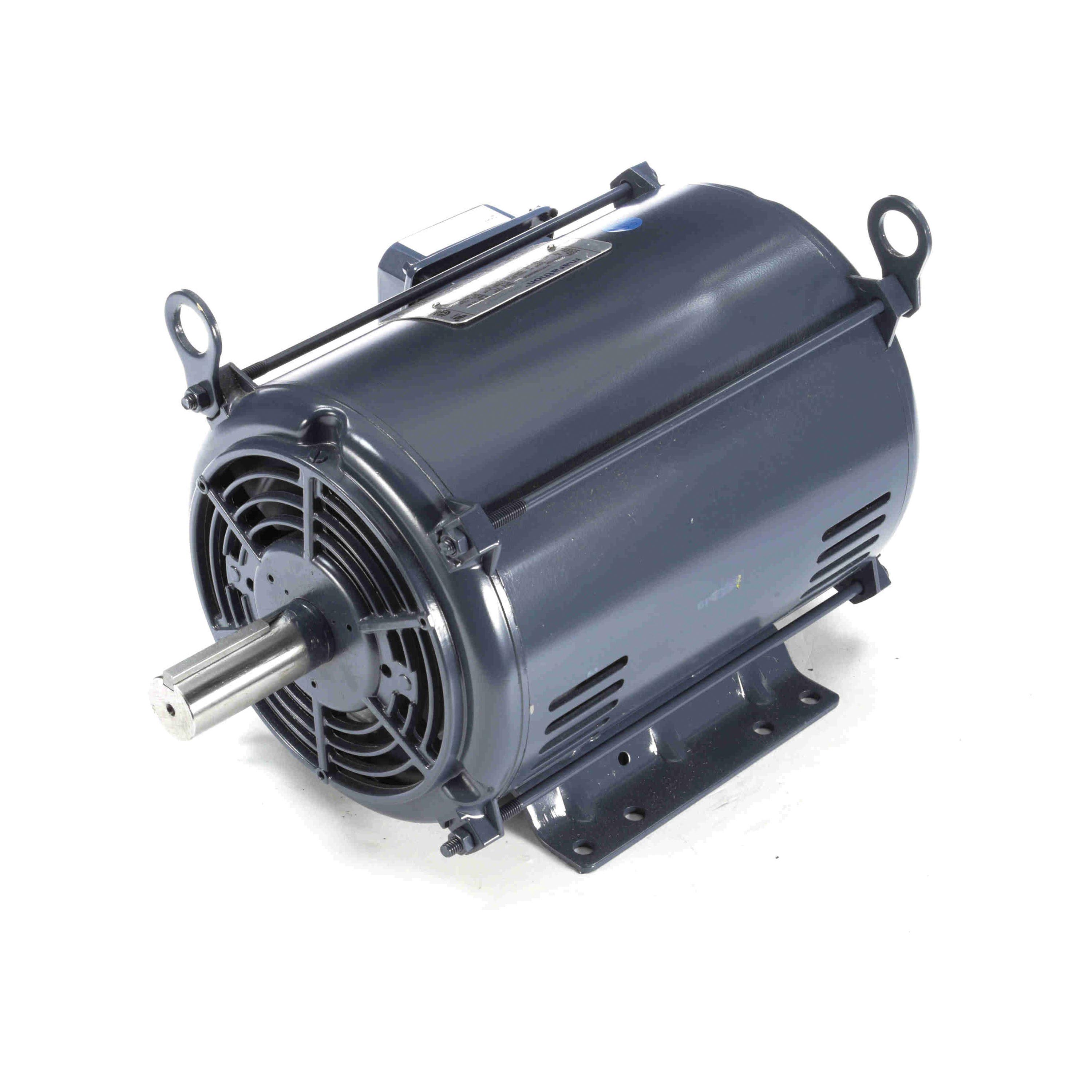

Marathon® Globetrotter® GT0019A General Purpose Motor, 208 to 230/460 V, 12.7/25.4 to 27.7 A, 10 hp, 1800 rpm Speed
- Item ID: GT0019A
- Min. Order Qty: 1
- : 215TTDBD6026
- Item ID: GT0019A
- Brand: Marathon®
-
-
Marathon® General Purpose Motor, 208 to 230/460 V, 12.7/25.4 to 27.7 A, 10 hp, 1800 rpm, 7.5 kW, 3 ph Phase, 60 Hz, Drip-Proof Motor Enclosure, 215T Frame, 1.375 in Dia x 3.38 in L Shaft, CCW Rotation, 1 Speed, Ball Bearing, 4 Poles, Continuous, Line, Inverter Starting Method, Class F Insulation Class, NEMA Premium® Motor Efficiency Group, 91.7 % Efficiency, 1.15 Service Factor, 80.1 Power Factor, Rigid Base Mounting, Rolled Steel, 40 deg C, 17.52 in L
- Inverter-duty 20:1 variable torque
- Standard assembly F1, reversible to F2 assembly
- Dual frame-mounting holes
| Amperage Rating | : | 12.7/25.4 to 27.7 A |
| Bearing Type | : | Ball |
| Dimensions | : | 17.52 in L |
| Duty Type | : | Continuous |
| Efficiency | : | 91.7 % |
| Frame Size | : | 215T |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 10 hp |
| Insulation Class | : | Class F |
| Material | : | Rolled Steel |
| Motor Efficiency Group | : | NEMA Premium® |
| Motor Enclosure Type | : | Drip-Proof |
| Mounting Type | : | Rigid Base |
| Number of Poles | : | 4 |
| Number of Speeds | : | 1 |
| Phase | : | 3 ph |
| Power Factor | : | 80.1 |
| Power Rating | : | 7.5 kW |
| Rotation Type | : | CCW |
| Service Factor | : | 1.15 |
| Shaft Size | : | 1.375 in Dia x 3.38 in L |
| Speed Rating | : | 1800 rpm |
| Starting Method | : | Line, Inverter |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 208 to 230/460 V |
No documents
Marathon® GT0019A
