EATON 270W 270W | Standard Supply

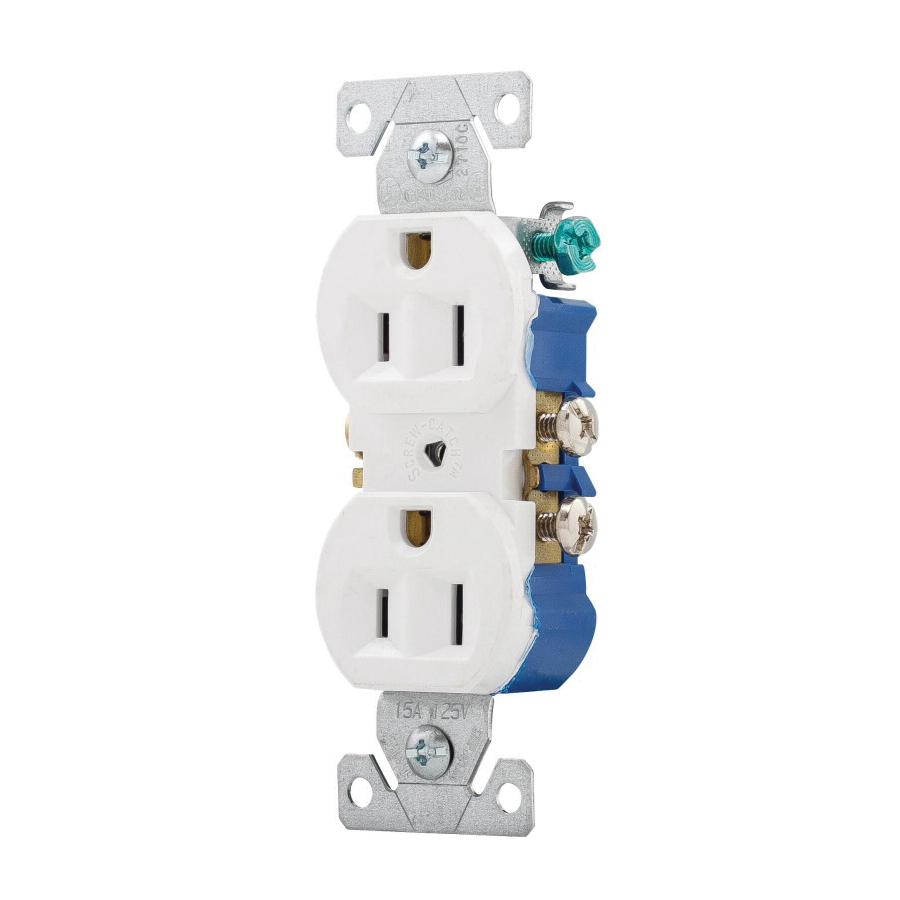

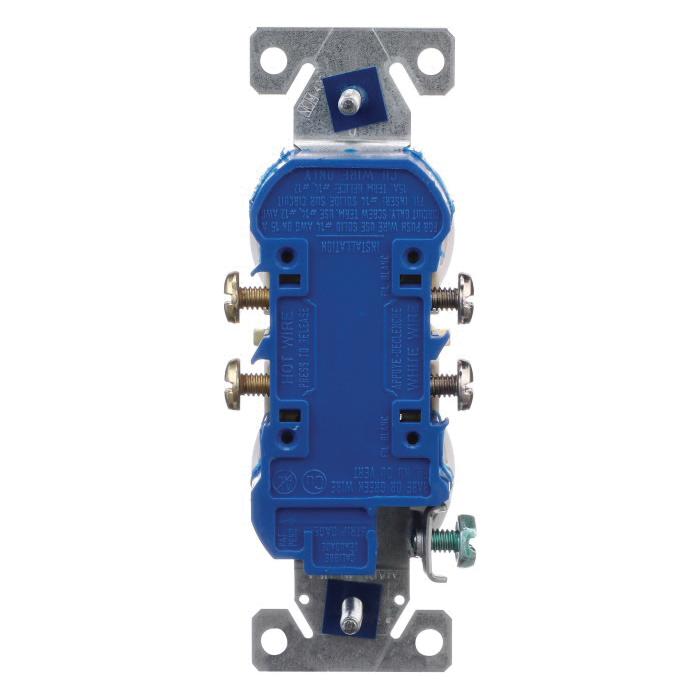

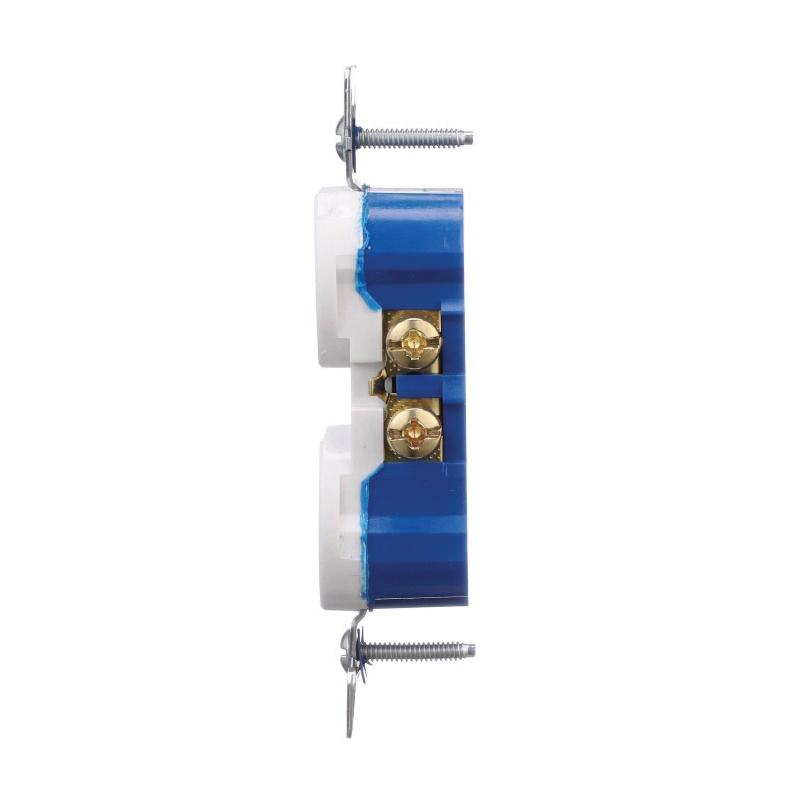

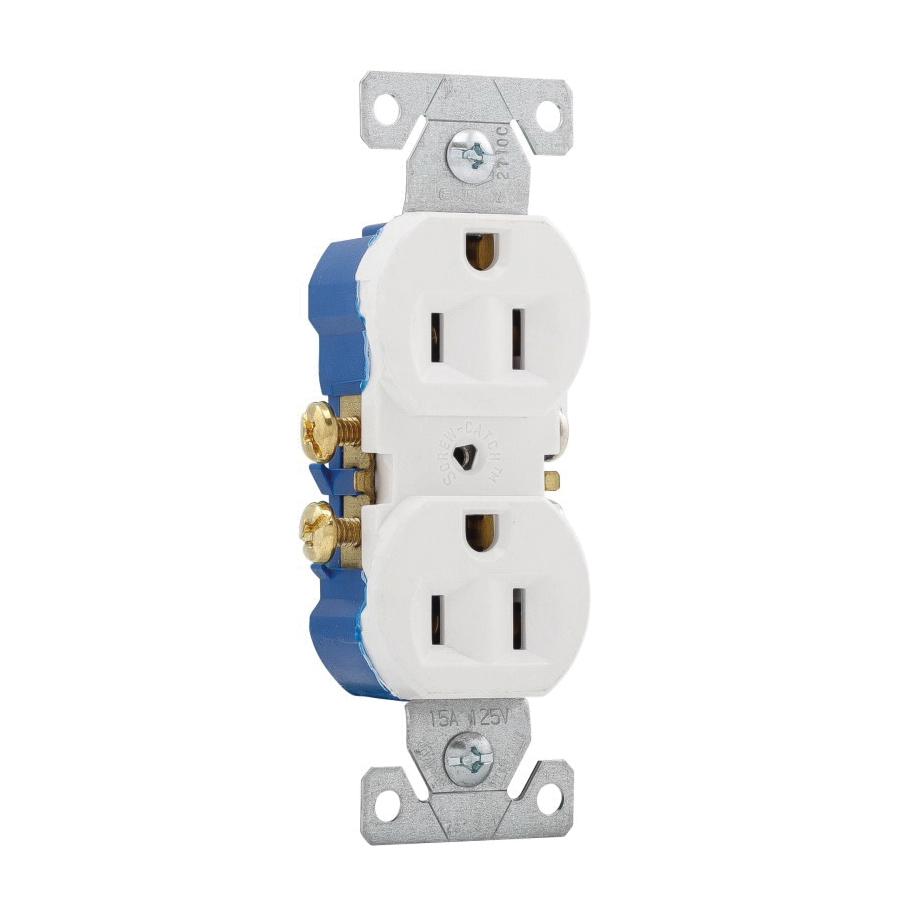

EATON 270W Duplex Receptacle, 125 VAC, 15 A, 2 -Pole, 3 -Wire, White, NEMA 5-15R

EATON 270W 270W
  • Item ID: 270W
  • Min. Order Qty: 1
  • Item ID: 270W
  • Brand: EATON
  • loading

EATON Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Residential, Standard Grade, NEMA Rating: NEMA 5-15R, Push Wired, Screw, Side Wired Terminal, Solid, Stranded Conductor, 14 to 10 AWG Conductor, Flush Mounting, Thermoplastic Housing, Brass Contact, White, -20 to 60 deg C, 1.31 in Length, 0.69 in Width, 4.19 in Height

  • Durable impact-resistant thermoplastic face and back body is virtually unbreakable
  • Terminal screws are backed out and ready to wire
  • Extra long and extra wide mounting straps
  • Side wire terminals accept up to #10 solid or stranded wire
Amperage Rating      :      15 A
Color      :      White
Conductor Size      :      14 to 10 AWG
Conductor Type      :      Solid, Stranded
Contact Material      :      Brass
Grade      :      Residential, Standard
Height      :      4.19 in
Housing Material      :      Thermoplastic
Length      :      1.31 in
Mounting Type      :      Flush
NEMA Rating      :      NEMA 5-15R
Number of Poles      :      2
Number of Wires      :      3
Temperature Rating      :      -20 to 60 deg C
Terminal Type      :      Push Wired, Screw, Side Wired
Voltage Rating      :      125 VAC
Width      :      0.69 in

EATON 270W
