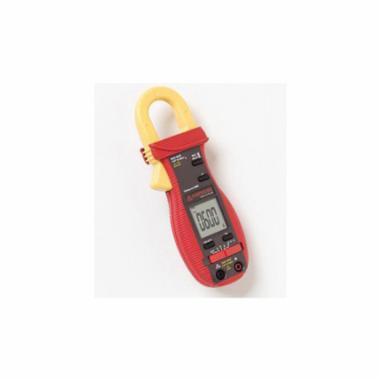

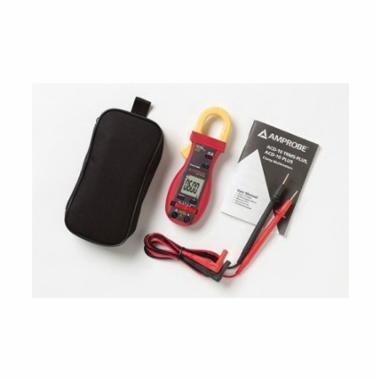

The Amprobe® ACD-10 plus clamp multimeter has thinner jaws than standard digital clamp multimeters (only 0.4 in/10 mm thick) allowing access to tight measurement areas and still handles conductors up to 1 in (25 mm). It combines the convenience and flexibility of an AC/DC current clamp meter with the most frequently used digital multimeter functions, including ac/dc current and voltage, capacitance and frequency.

Amprobe® Clamp Multimeter, 4 to 600 V, 40/400/600 A, 400 uOhm to 40 MOhm Resistance, 26 mm Jaw, 4000, 40 to 400 Hz, LCD Display, +/-1.5% AC Current Accuracy, 3 V, 0 to 40 deg C Operating, 500 nF, 5 F, 500 uF, 3000 uF, +/-3.5% Capacitance Accuracy, <=80% Relative Humidity Rating, +/-0.8%, +/-0.6%, +/-1%, +/-2% Resistance Accuracy, +/-0.5% Frequency Accuracy, 7.4 x 2.5 x 1.3 in, Additional Information: Coin Battery Shape

• Measures ac and DC voltage to 600 V and ac current to 600 A to handle residential/commercial and small industrial applications
• Thin jaws, only 10 mm THK make it easier to maneuver between tightly packed conductors
• Measures frequency, resistance and capacitance
• Features continuity beeper to quickly find opens and shorts
• Accommodates conductors up to 1 in (25 mm) in diameter
• Auto ranging saves time by instantly selecting correct range
• Auto power off to conserve battery life
• Rubber over molded case absorbs shock
