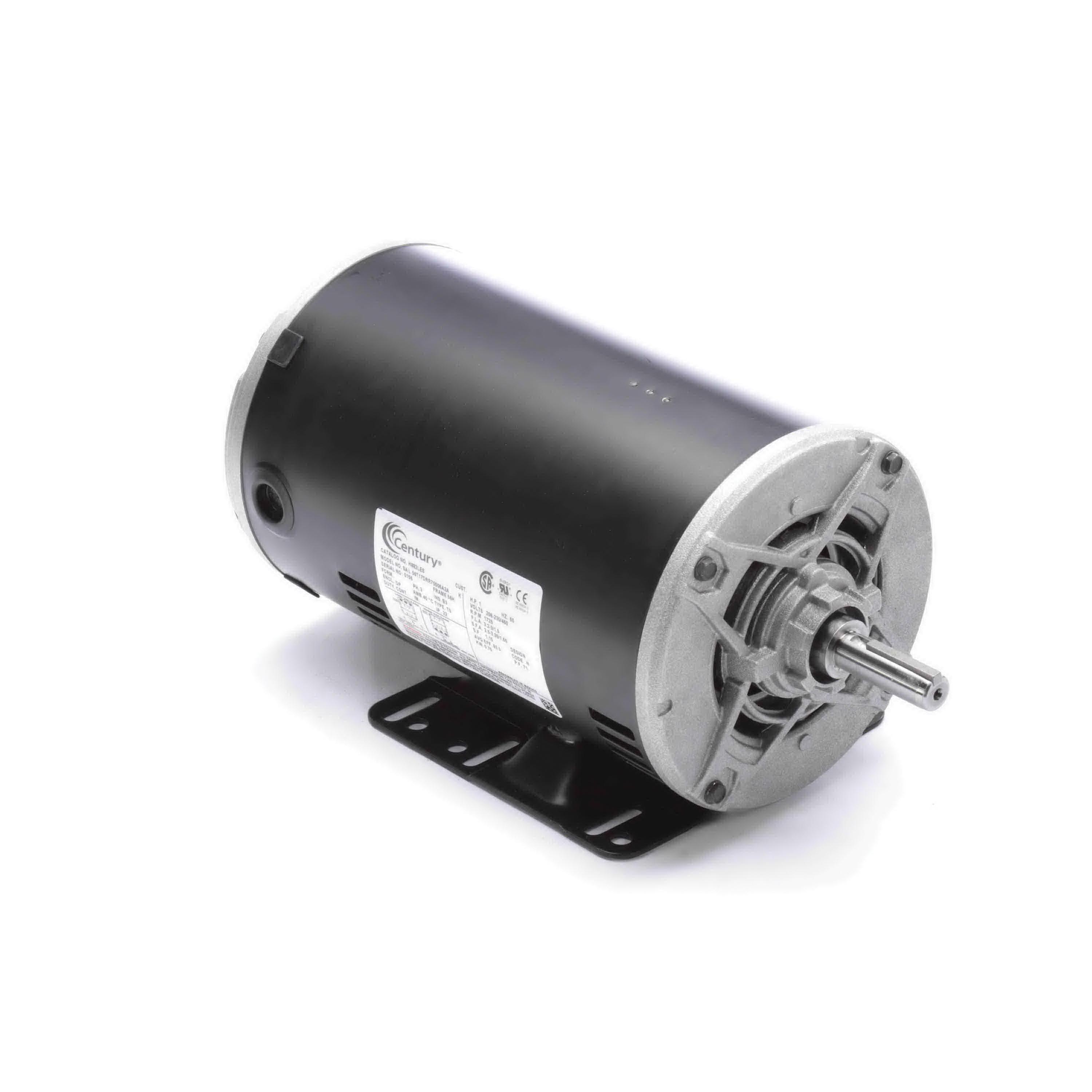

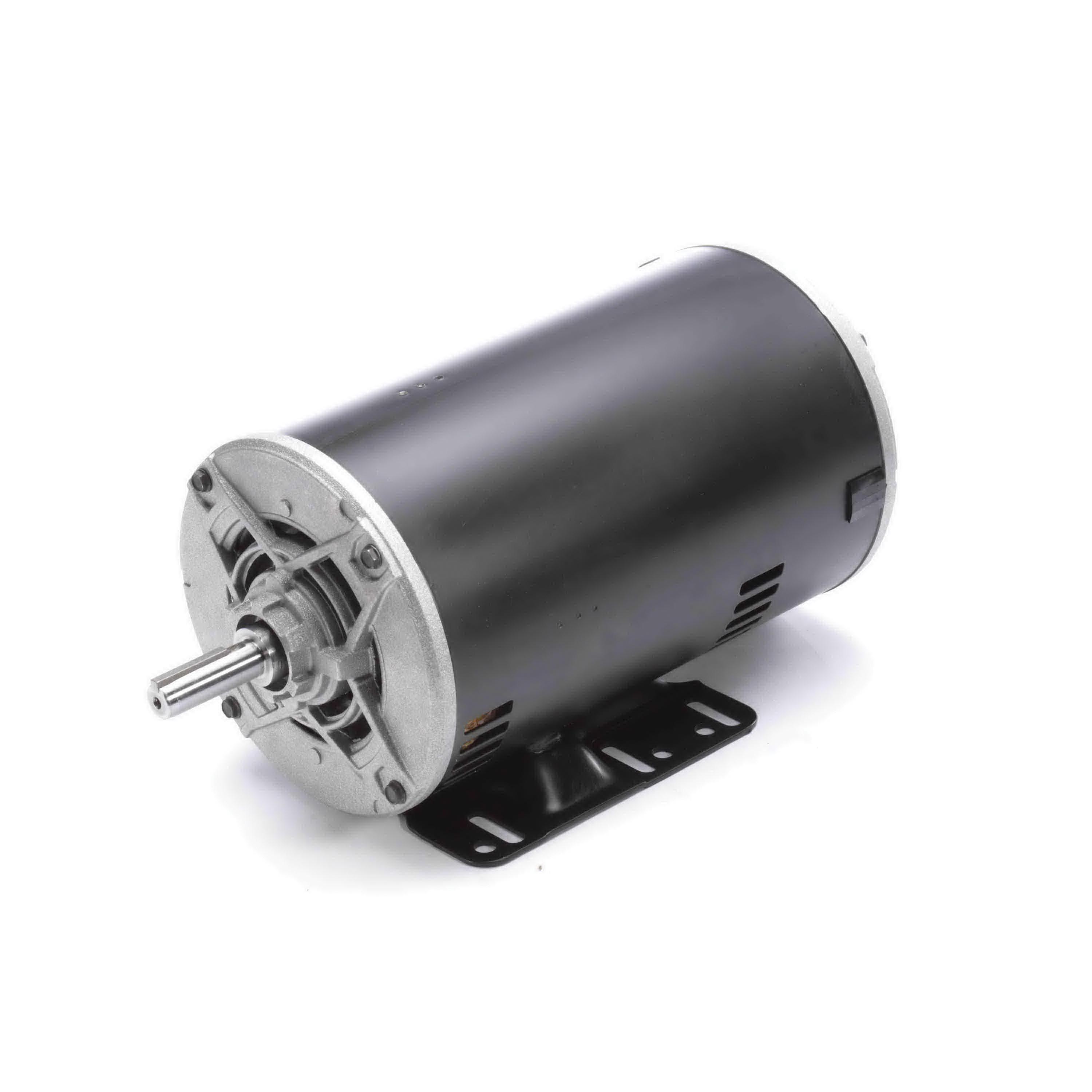

Century® H882LES Motor, 208 to 230/460 VAC, 3.2 to 3/1.5 A, 1 hp, 1725 rpm Speed, 0.75 kW, 3 ph -Phase, 60 Hz
- Item ID: H882LES
- Min. Order Qty: 1
- Item ID: H882LES
- Brand: Century®
-
-
Century® Motor, 208 to 230/460 VAC, 3.2 to 3/1.5 A, 1 hp, 1725 rpm, 0.75 kW, 3 ph Phase, 60 Hz, Open Drip-Proof Motor Enclosure, 56H Frame, 0.625 in Dia x 1.88 in L Shaft, REV Rotation, 1 Speed, Belt Drive Blower, Ball Bearing, 4 Poles, Continuous, Class B Insulation Class, 83.5 % Efficiency, 1.15 Service Factor, Rigid Base Mounting, Rolled Steel, 40 deg C, 6.55 in Dia x 13.99 in L
- Meets or exceeds all USA mandated efficiencies
- Automatic overload protection
- Keyed shaft
| Amperage Rating | : | 3.2 to 3/1.5 A |
| Bearing Type | : | Ball |
| Blower Type | : | Belt Drive |
| Dimensions | : | 6.55 in Dia x 13.99 in L |
| Duty Type | : | Continuous |
| Efficiency | : | 83.5 % |
| Frame Size | : | 56H |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1 hp |
| Insulation Class | : | Class B |
| Material | : | Rolled Steel |
| Motor Enclosure Type | : | Open Drip-Proof |
| Mounting Type | : | Rigid Base |
| Number of Poles | : | 4 |
| Number of Speeds | : | 1 |
| Phase | : | 3 ph |
| Power Rating | : | 0.75 kW |
| Rotation Type | : | REV |
| Service Factor | : | 1.15 |
| Shaft Size | : | 0.625 in Dia x 1.88 in L |
| Speed Rating | : | 1725 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 208 to 230/460 VAC |
Century® H882LES
