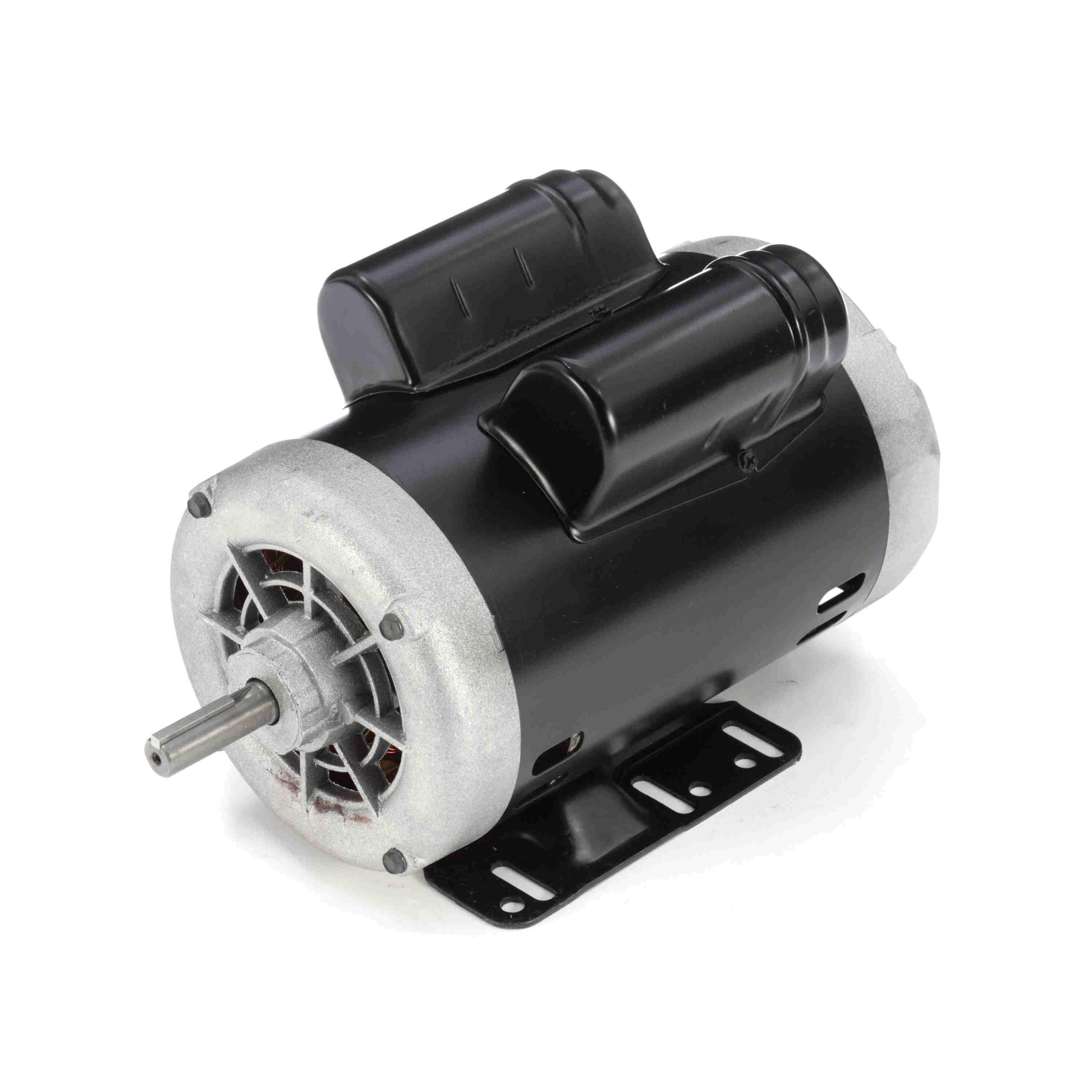

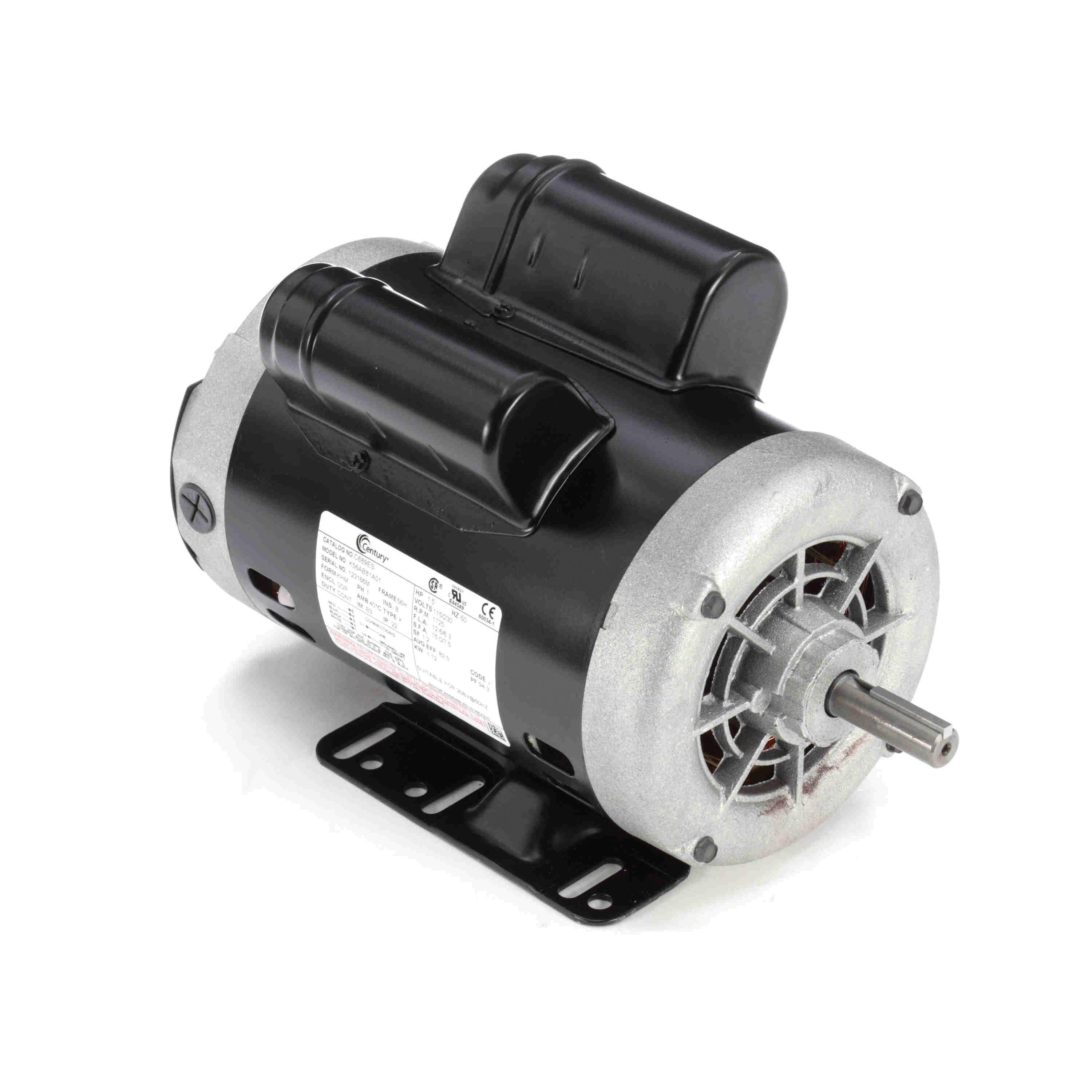

Century® C689ES Motor, 115/230 VAC, 12.6/6.3 A, 1.5 hp, 1725 rpm Speed, 1.1 kW, 1 ph -Phase, 60 Hz, 56H Frame
- Item ID: C689ES
- Min. Order Qty: 1
- Item ID: C689ES
- Brand: Century®
-
-
Century® Motor, 115/230 VAC, 12.6/6.3 A, 1.5 hp, 1725 rpm, 1.1 kW, 1 ph Phase, 60 Hz, Open Drip-Proof Motor Enclosure, 56H Frame, 0.625 in Dia x 1.94 in L Shaft, RCCW Rotation, 1 Speed, Ball Bearing, 4 Poles, Continuous, Class B Insulation Class, 1.2 Service Factor, Rigid Base Mounting, Rolled Steel, 40 deg C, 13.65 in L
- Heavy gauge steel frame and base
- Keyed shaft
| Amperage Rating | : | 12.6/6.3 A |
| Bearing Type | : | Ball |
| Dimensions | : | 13.65 in L |
| Duty Type | : | Continuous |
| Frame Size | : | 56H |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1.5 hp |
| Insulation Class | : | Class B |
| Material | : | Rolled Steel |
| Motor Enclosure Type | : | Open Drip-Proof |
| Mounting Type | : | Rigid Base |
| Number of Poles | : | 4 |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 1.1 kW |
| Rotation Type | : | RCCW |
| Service Factor | : | 1.2 |
| Shaft Size | : | 0.625 in Dia x 1.94 in L |
| Speed Rating | : | 1725 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115/230 VAC |
Century® C689ES
