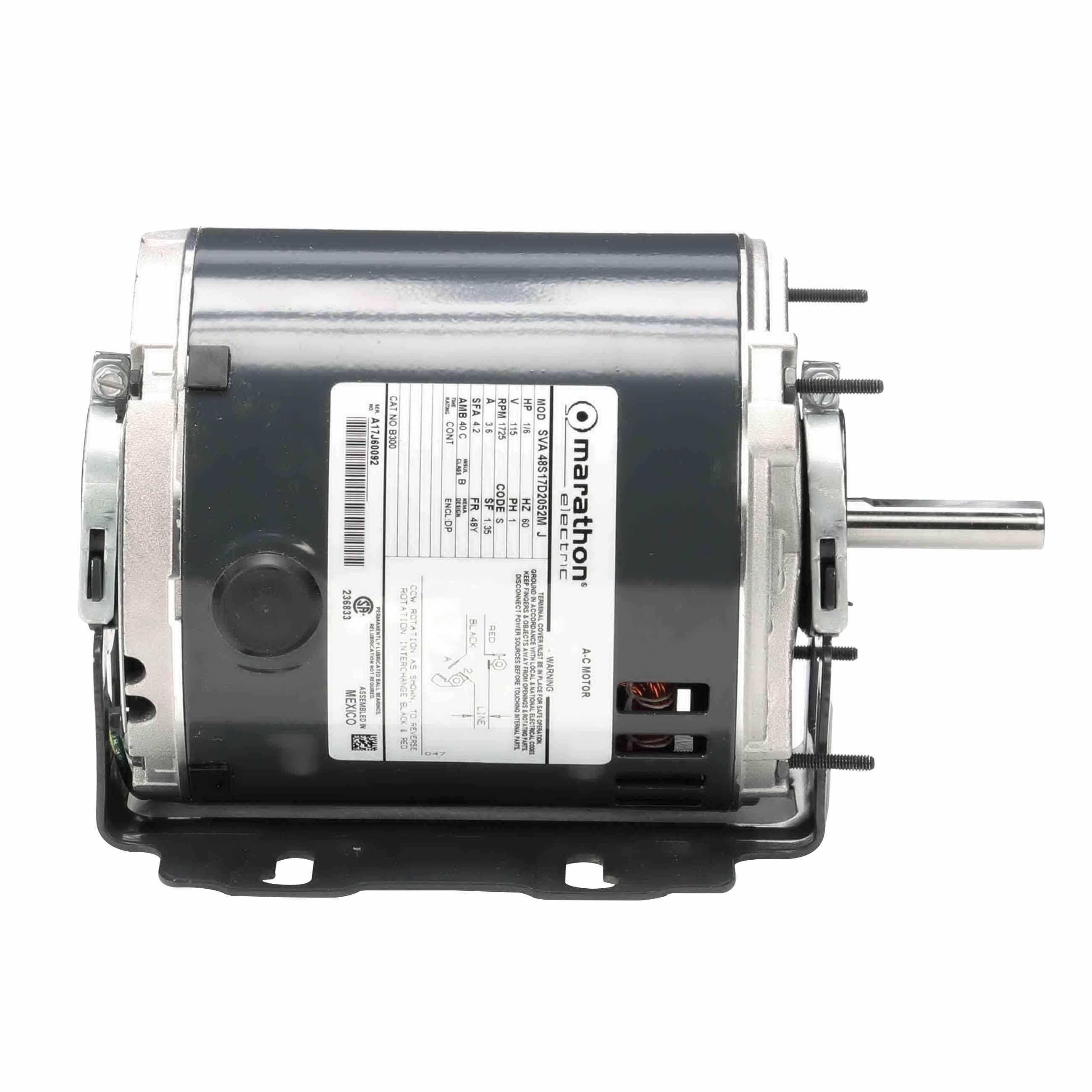

Marathon® 048S17D2052 B300 Blower Motor, 115 VAC, 3.6 A, 1/6 hp, 1800 rpm Speed, 0.13 kW, 1 ph, 60 Hz, 48Y Frame
- Item ID: B300
- Min. Order Qty: 1
- Item ID: B300
- Brand: Marathon®
-
-
Marathon® Blower Motor, Model: 048S17D2052, 115 VAC, 3.6 A, 1/6 hp, 1800 rpm, 0.13 kW, 1 ph Phase, 60 Hz, Drip-Proof Motor Enclosure, 48Y Frame, 1/2 in Dia x 1-7/8 in L Shaft, Counter-Clockwise Rotation, 1 Speed, Single Special Extension Shaft Type, 55 % Efficiency, Ball Bearing, Cradle Base, Stud Mounting, Belt Drive, Continuous, B Insulation Class, 4 Poles, 1.35 Service Factor, Across the Line Starting Method, Rolled Steel, 40 deg C, 5.61 in Dia x 10.32 in L
- Thermal overload protection
- Variable torque on 2-speed ratings
- Extended thru-bolts
- 48Y and 48YZ frame have 48/56 frame mounting holes
| Amperage Rating | : | 3.6 A |
| Bearing Type | : | Ball |
| Dimensions | : | 5.61 in Dia x 10.32 in L |
| Drive Type | : | Belt |
| Duty Type | : | Continuous |
| Efficiency | : | 55 % |
| Frame Size | : | 48Y |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/6 hp |
| Insulation Class | : | B |
| Material | : | Rolled Steel |
| Model | : | 048S17D2052 |
| Motor Enclosure Type | : | Drip-Proof |
| Mounting Type | : | Cradle Base, Stud |
| Number of Poles | : | 4 |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 0.13 kW |
| Rotation Type | : | Counter-Clockwise |
| Service Factor | : | 1.35 |
| Shaft Size | : | 1/2 in Dia x 1-7/8 in L |
| Shaft Type | : | Single Special Extension |
| Speed Rating | : | 1800 rpm |
| Starting Method | : | Across the Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115 VAC |
Marathon® B300
