SunStar® SPS Series SPS75-20-NG Infrared Tube Heater, 75000 Btu/hr, Natural Gas Fuel, MPT, Direct Spark Ignition
- Item ID: SPS75-20-NG
- Min. Order Qty: 1
- Item ID: SPS75-20-NG
- Brand: SunStar®
-
-

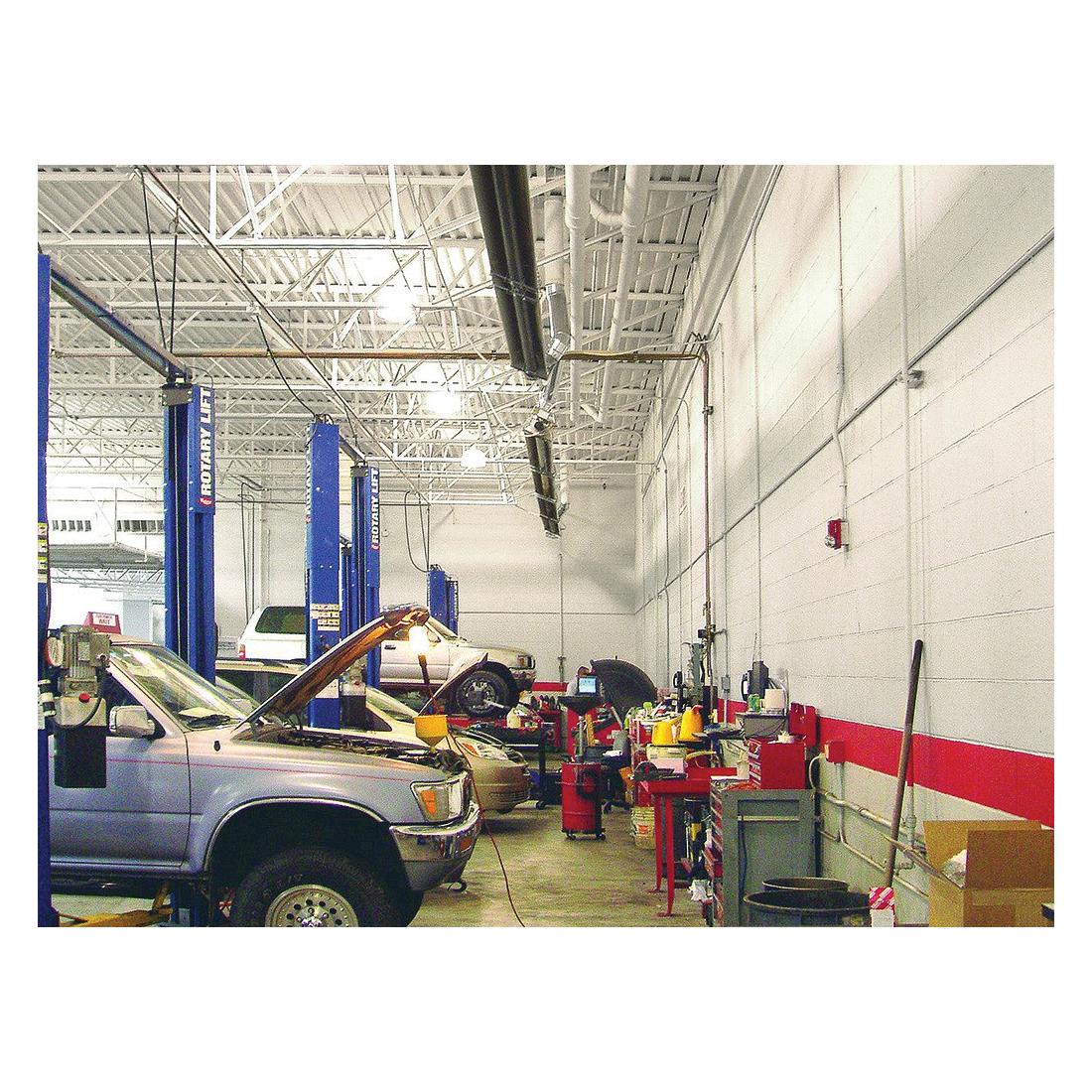

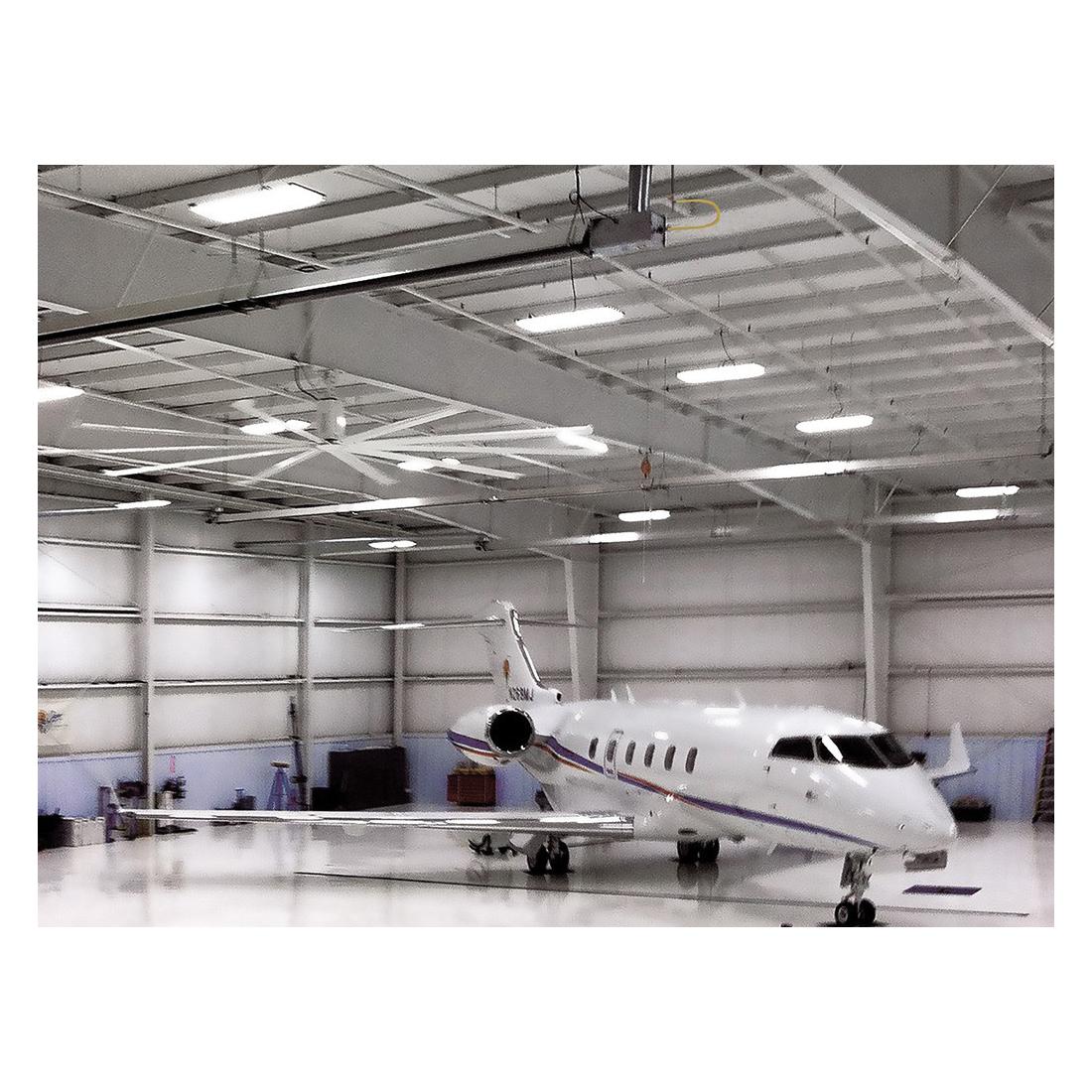

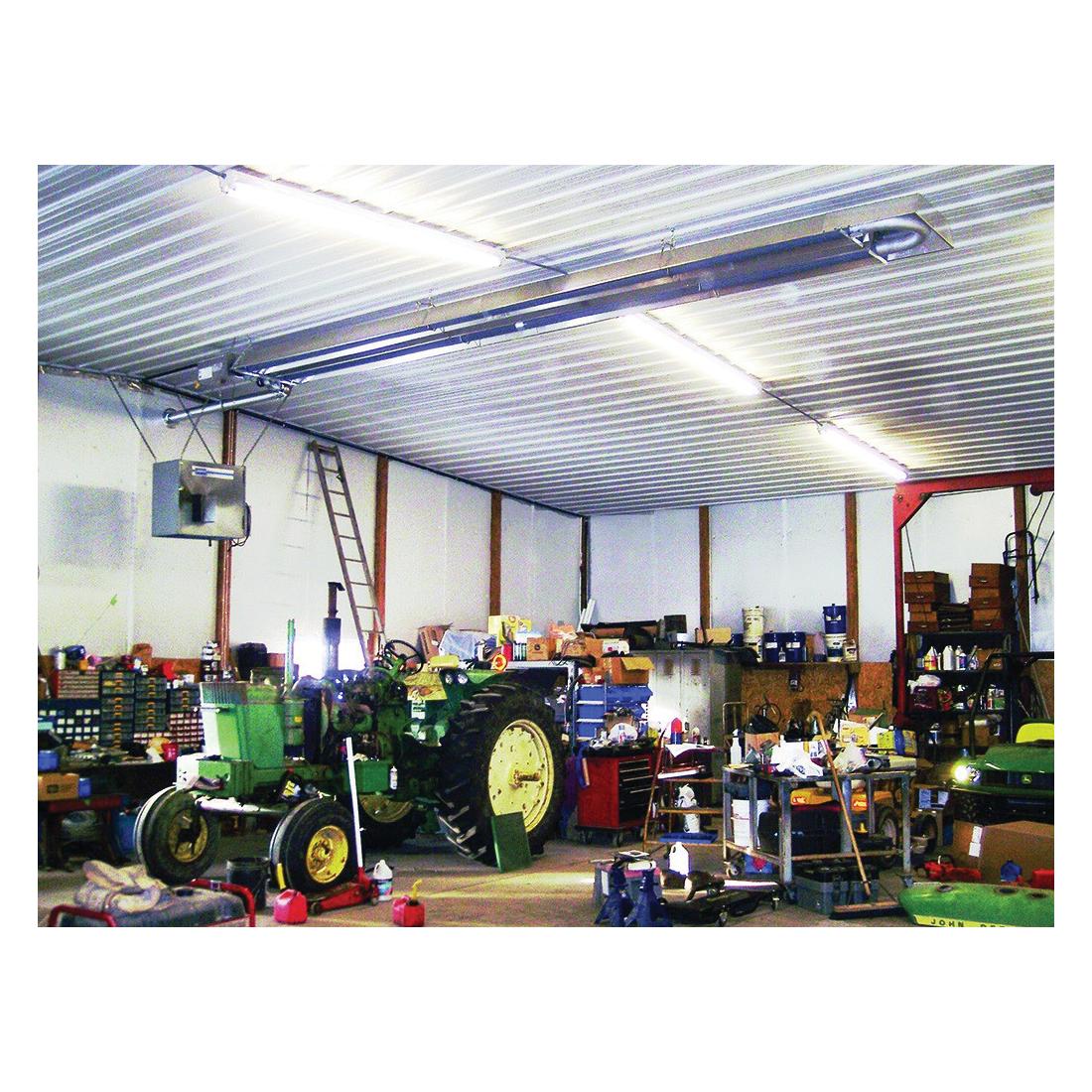

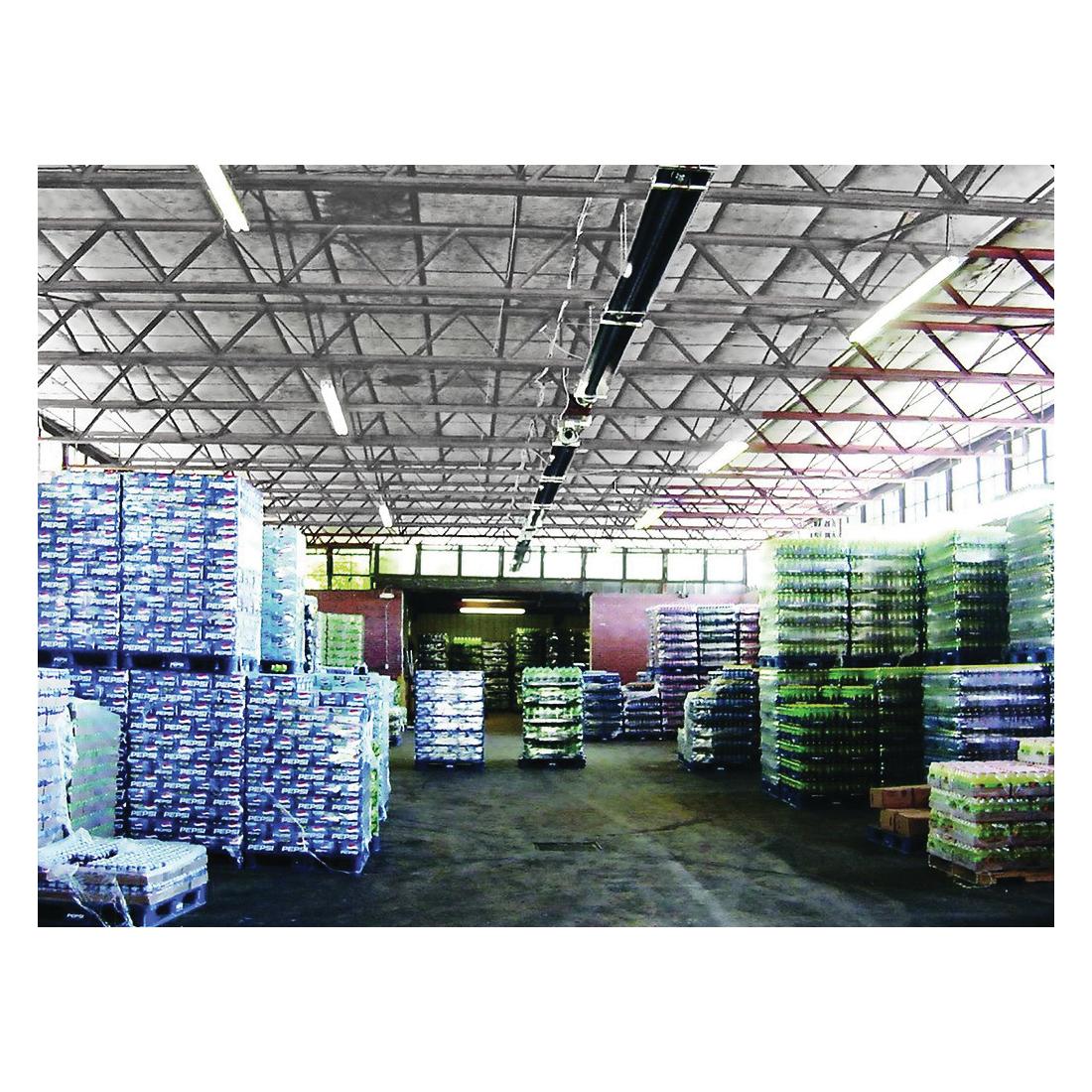

Whether you need to heat your warehouse, garage or other hard-to-heat spaces, the SunStar® SPS/U Series infrared heaters provide both the field efficiency of radiant heat and the installation flexibility you need and all at a comfortable price.
SunStar® Infrared Tube Heater, SPS Series, 120 V, 1.8 A, 60 Hz, 1 ph Phase, 75000 Btu/hr, Vent, Ducted or Ductless: Vent, 4 in Dia x 45 ft L Vent, MPT Connection, Natural Gas Fuel, Direct Spark Ignition, 5 to 14 in-WC, 12 ft, 13 ft Mounting Height, Angled Mounting, Steel, 90 deg C, 21 ft 2 in L x 13 in W x 6 in H, Additional Information: 20 ft L Tube, 1/2 in Connection Size
- Single stage or two stage input controls
- Sidewall or through the roof venting
- Vented or indirect vented operation
| Additional Information | : | 20 ft L Tube, 1/2 in Connection Size |
| Amperage Rating | : | 1.8 A |
| BTU Rating | : | 75000 Btu/hr |
| Connection Type | : | MPT |
| Dimensions | : | 21 ft 2 in L x 13 in W x 6 in H |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Ignition Type | : | Direct Spark |
| Material | : | Steel |
| Mounting Height | : | 12 ft, 13 ft |
| Mounting Type | : | Angled |
| Phase | : | 1 ph |
| Pressure Rating | : | 5 to 14 in-WC |
| Series | : | SPS Series |
| Temperature Rating | : | 90 deg C |
| Vent Size | : | 4 in Dia x 45 ft L |
| Vent, Ducted or Ductless | : | Vent |
| Voltage Rating | : | 120 V |
SunStar® SPS75-20-NG
