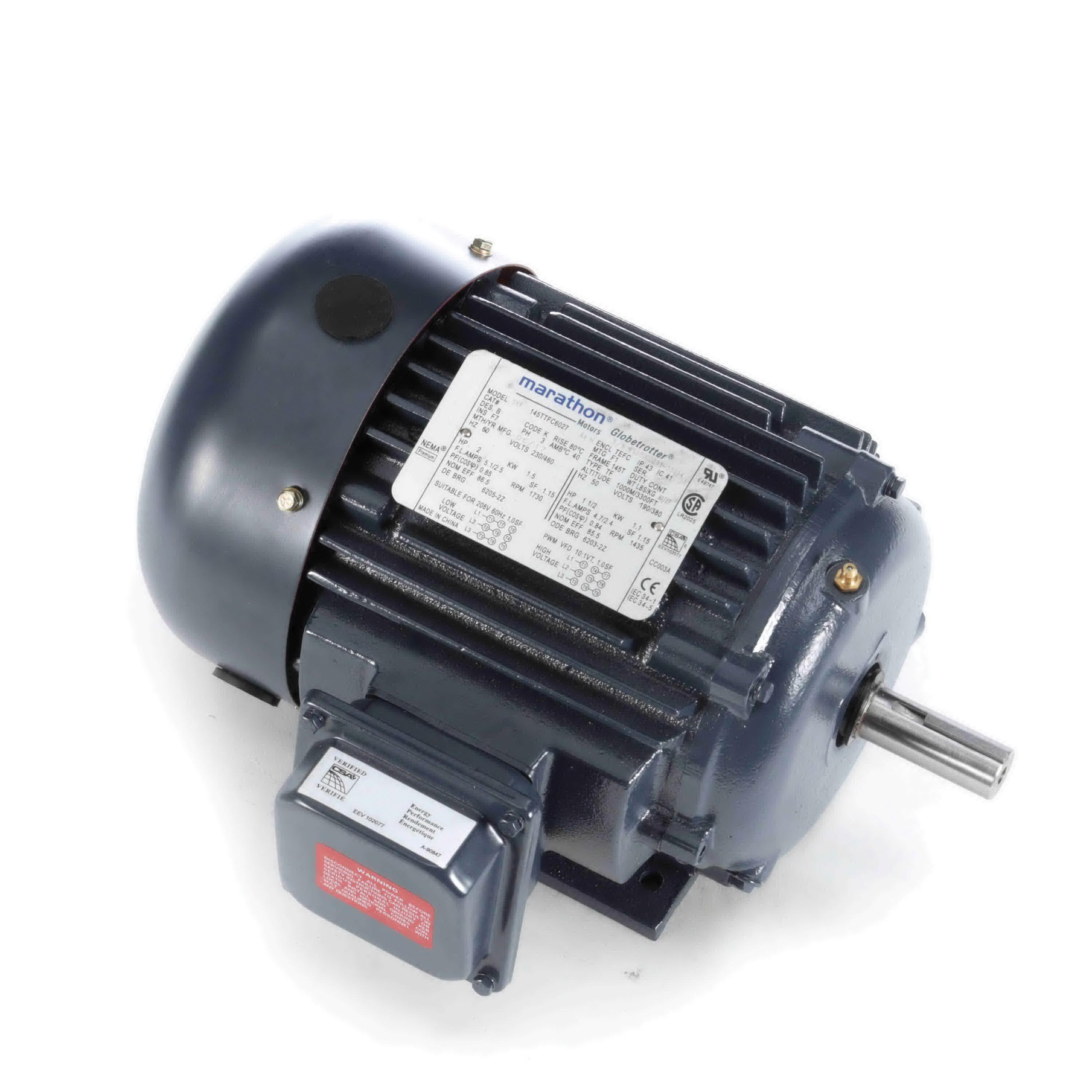

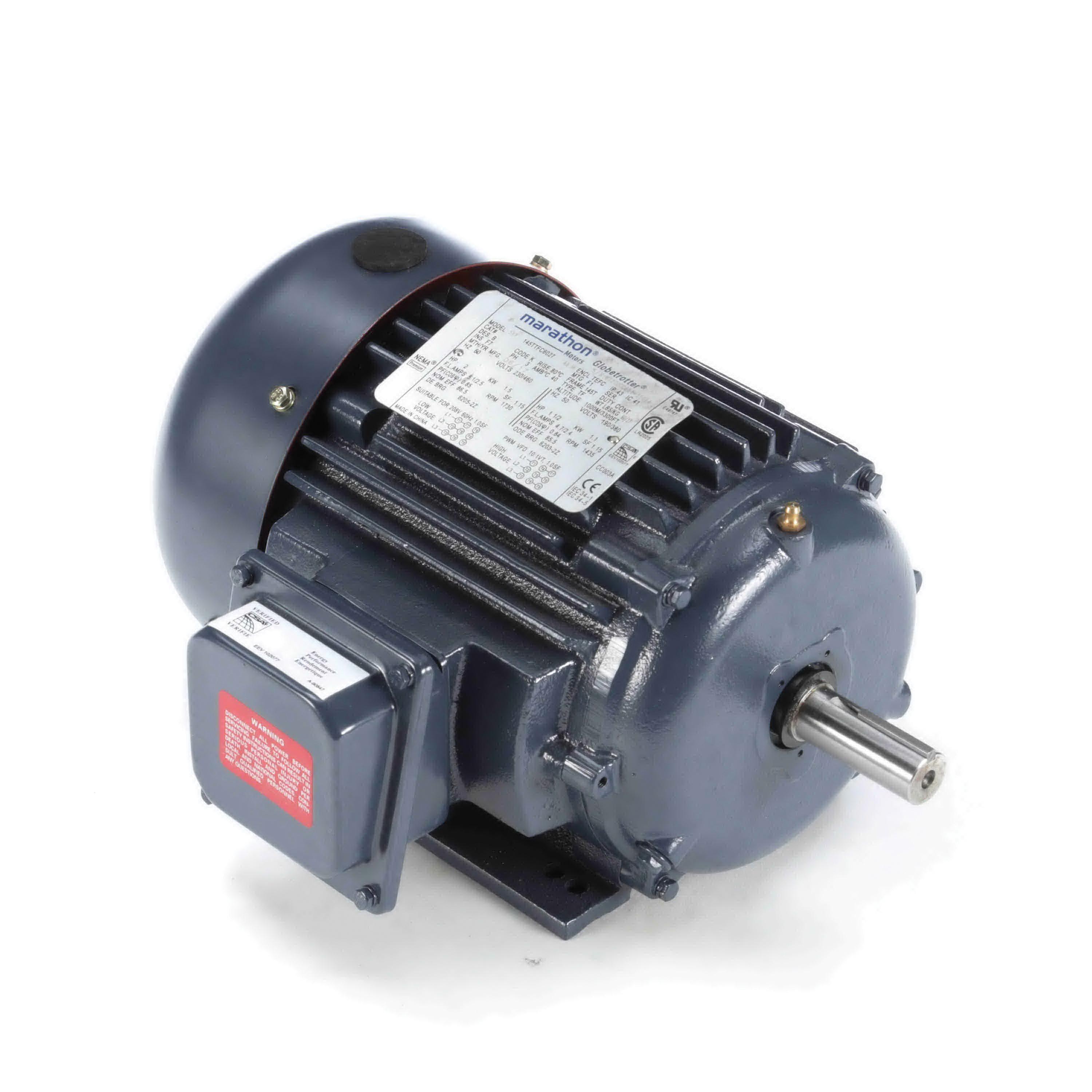

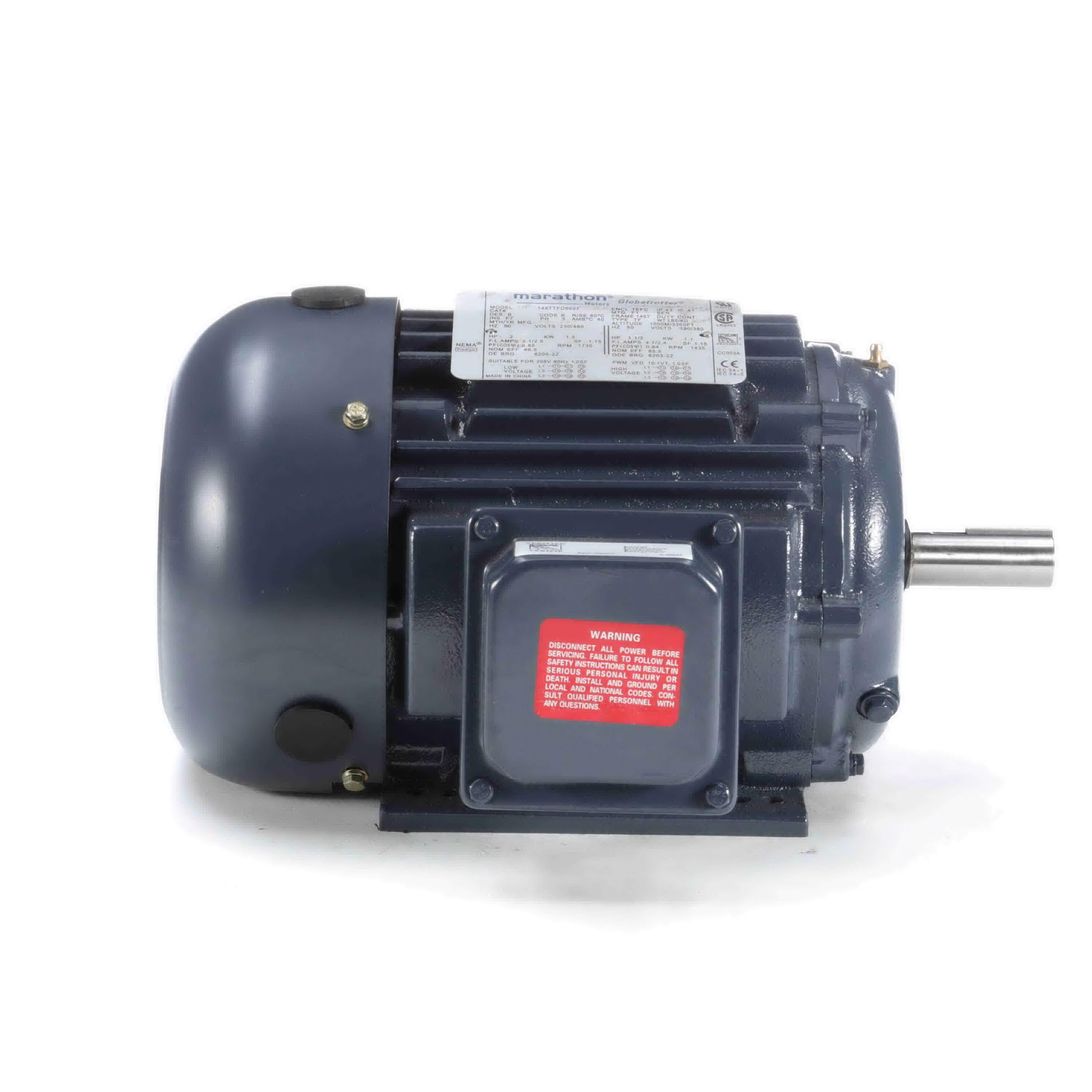

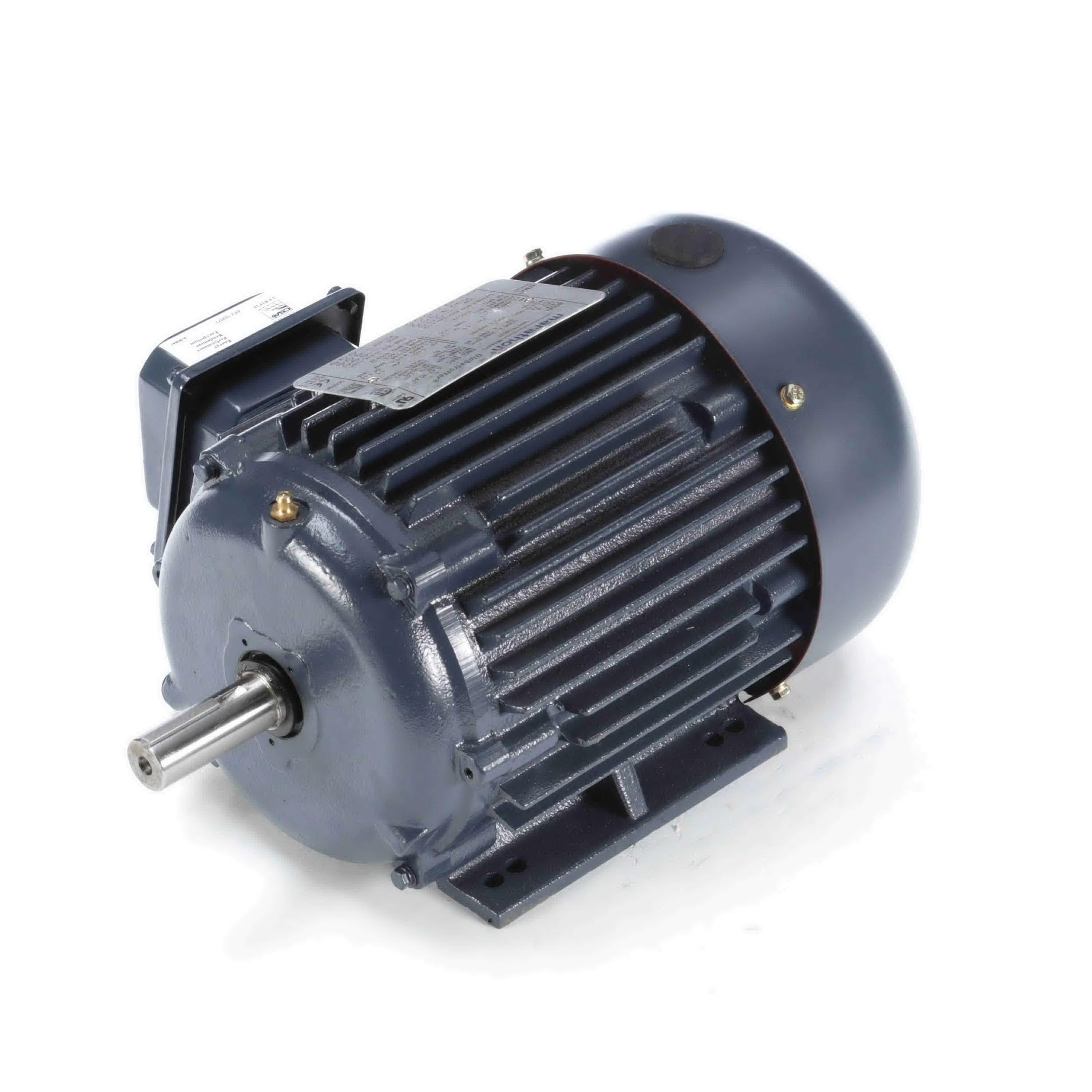

Marathon® Globetrotter® GT1007 General Purpose Motor, 208 to 230/460 V, 2.5 A, 5 to 5.5 A, 2 hp, 1730 rpm Speed, 1.5 kW
- Item ID: GT1007
- Min. Order Qty: 1
- : 145TTFC6027
- Item ID: GT1007
- Brand: Marathon®
-
-
Marathon® General Purpose Motor, 208 to 230/460 V, 2.5 A, 5 to 5.5 A, 2 hp, 1730 rpm, 1.5 kW, 3 ph Phase, 60 Hz, Totally Enclosed Fan Cooled Motor Enclosure, 145T Frame, 7/8 in Shaft, Reversible Rotation, 1 Speed, Ball Bearing, 4 Poles, Continuous, Across The Line Starting Method, Class F Insulation Class, 86.5 % Efficiency, 1.15 Service Factor, 85 Power Factor, Rigid Base Mounting, Rolled Steel, 40 deg C, 14.2 in L
- Standard assembly F1, reversible to F2 assembly
- C-face addition may result in Non-NEMA "BA" dim, for new "BA" dim consult chart found in modification section
| Amperage Rating | : | 2.5 A, 5 to 5.5 A |
| Bearing Type | : | Ball |
| Dimensions | : | 14.2 in L |
| Duty Type | : | Continuous |
| Efficiency | : | 86.5 % |
| Frame Size | : | 145T |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 2 hp |
| Insulation Class | : | Class F |
| Material | : | Rolled Steel |
| Motor Enclosure Type | : | Totally Enclosed Fan Cooled |
| Mounting Type | : | Rigid Base |
| Number of Poles | : | 4 |
| Number of Speeds | : | 1 |
| Phase | : | 3 ph |
| Power Factor | : | 85 |
| Power Rating | : | 1.5 kW |
| Rotation Type | : | Reversible |
| Service Factor | : | 1.15 |
| Shaft Size | : | 7/8 in |
| Speed Rating | : | 1730 rpm |
| Starting Method | : | Across The Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 208 to 230/460 V |
No documents
Marathon® GT1007
