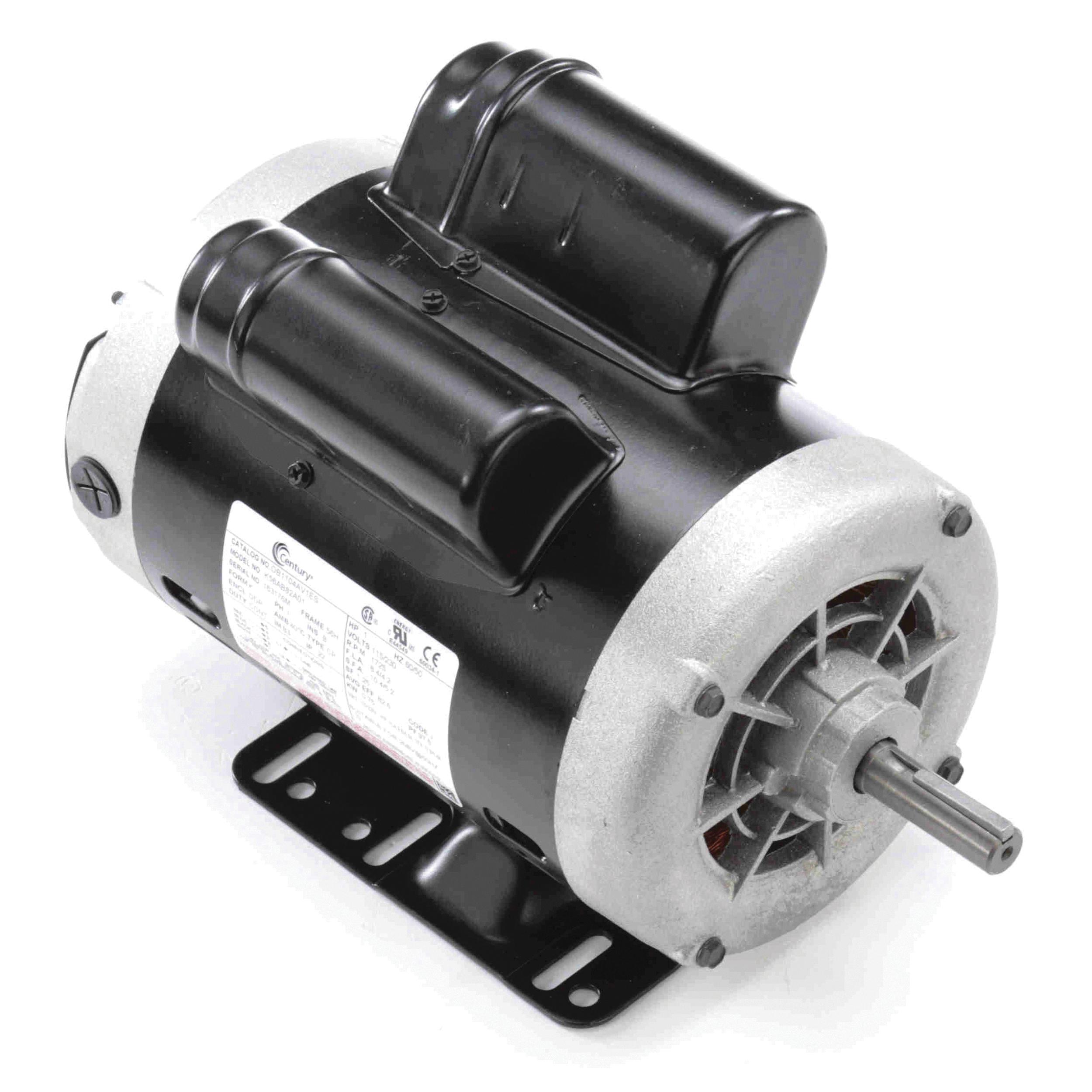

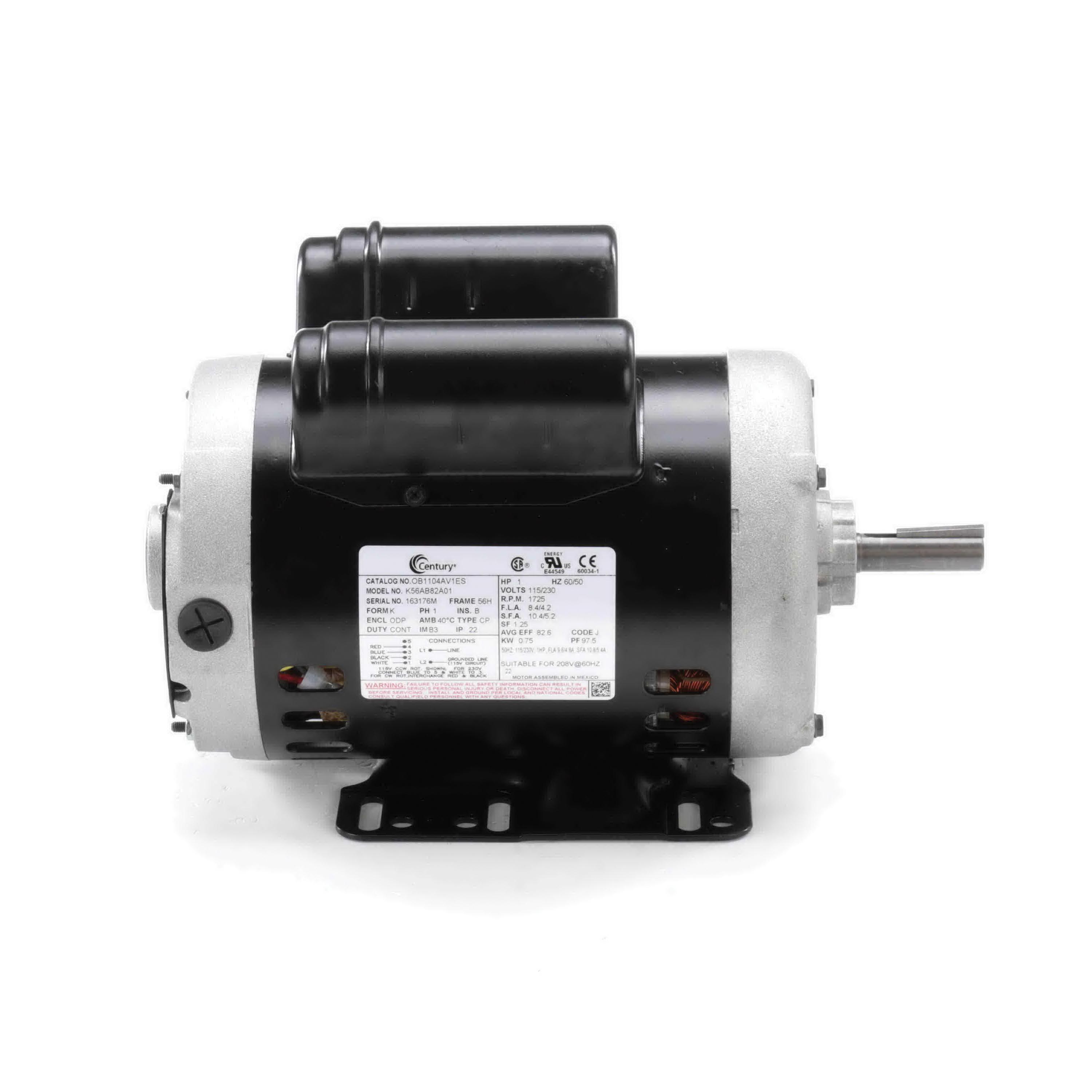

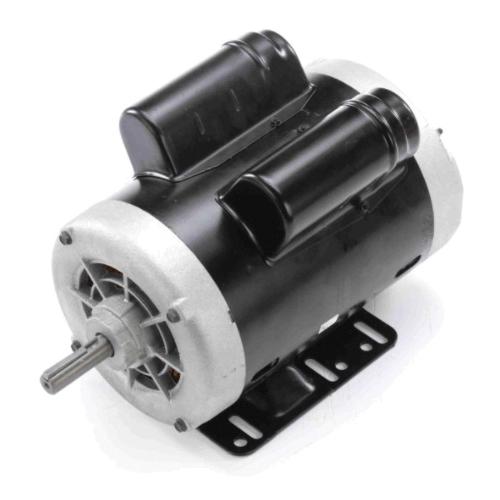

Century® OB1104AV1ES Motor, 115/230 VAC, 8.4/4.2 A, 1 hp, 1725 rpm Speed, 0.75 kW, 1 ph -Phase, 50/60 Hz, 7-1/4 in Frame
- Item ID: OB1104AV1ES
- Min. Order Qty: 1
- Item ID: OB1104AV1ES
- Brand: Century®
-
-
Century® Motor, 115/230 VAC, 8.4/4.2 A, 1 hp, 1725 rpm, 0.75 kW, 1 ph Phase, 50/60 Hz, Open Drip-Proof Motor Enclosure, 7-1/4 in Frame, 5/8 in Dia x 2 in L Shaft, CW, CCW Rotation, 1 Speed, Ball Bearing, 4 Poles, Continuous, Across The Line Starting Method, Class B Insulation Class, Premium Motor Efficiency Group, 1.25 Service Factor, Rigid Base Mounting, Rolled Steel, 40 deg C, 13.21 in L
- UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications
- Premium efficiency promotes improved reliability
- Heavy-duty, rolled steel construction ensures motor durability
- Permanently lubricated sealed bearings extend the lifetime of the motor
| Amperage Rating | : | 8.4/4.2 A |
| Bearing Type | : | Ball |
| Dimensions | : | 13.21 in L |
| Duty Type | : | Continuous |
| Frame Size | : | 7-1/4 in |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 1 hp |
| Insulation Class | : | Class B |
| Material | : | Rolled Steel |
| Motor Efficiency Group | : | Premium |
| Motor Enclosure Type | : | Open Drip-Proof |
| Mounting Type | : | Rigid Base |
| Number of Poles | : | 4 |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 0.75 kW |
| Rotation Type | : | CW, CCW |
| Service Factor | : | 1.25 |
| Shaft Size | : | 5/8 in Dia x 2 in L |
| Speed Rating | : | 1725 rpm |
| Starting Method | : | Across The Line |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115/230 VAC |
