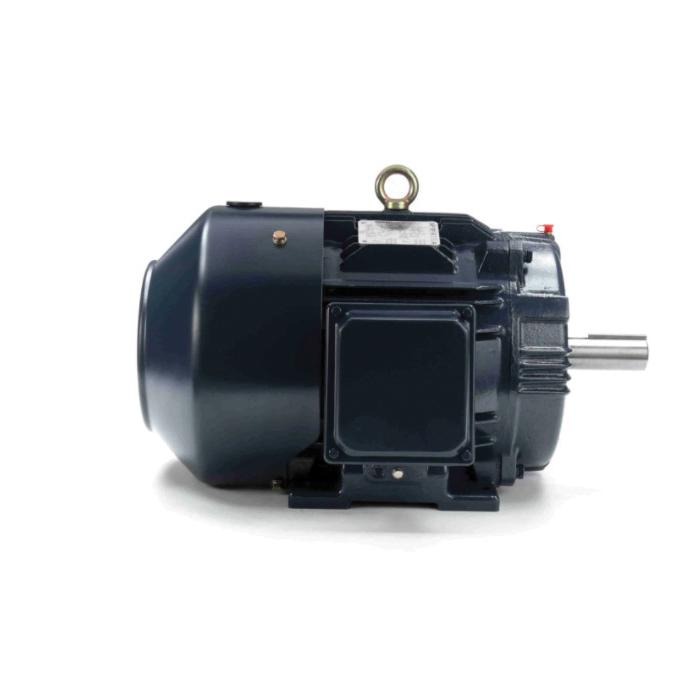

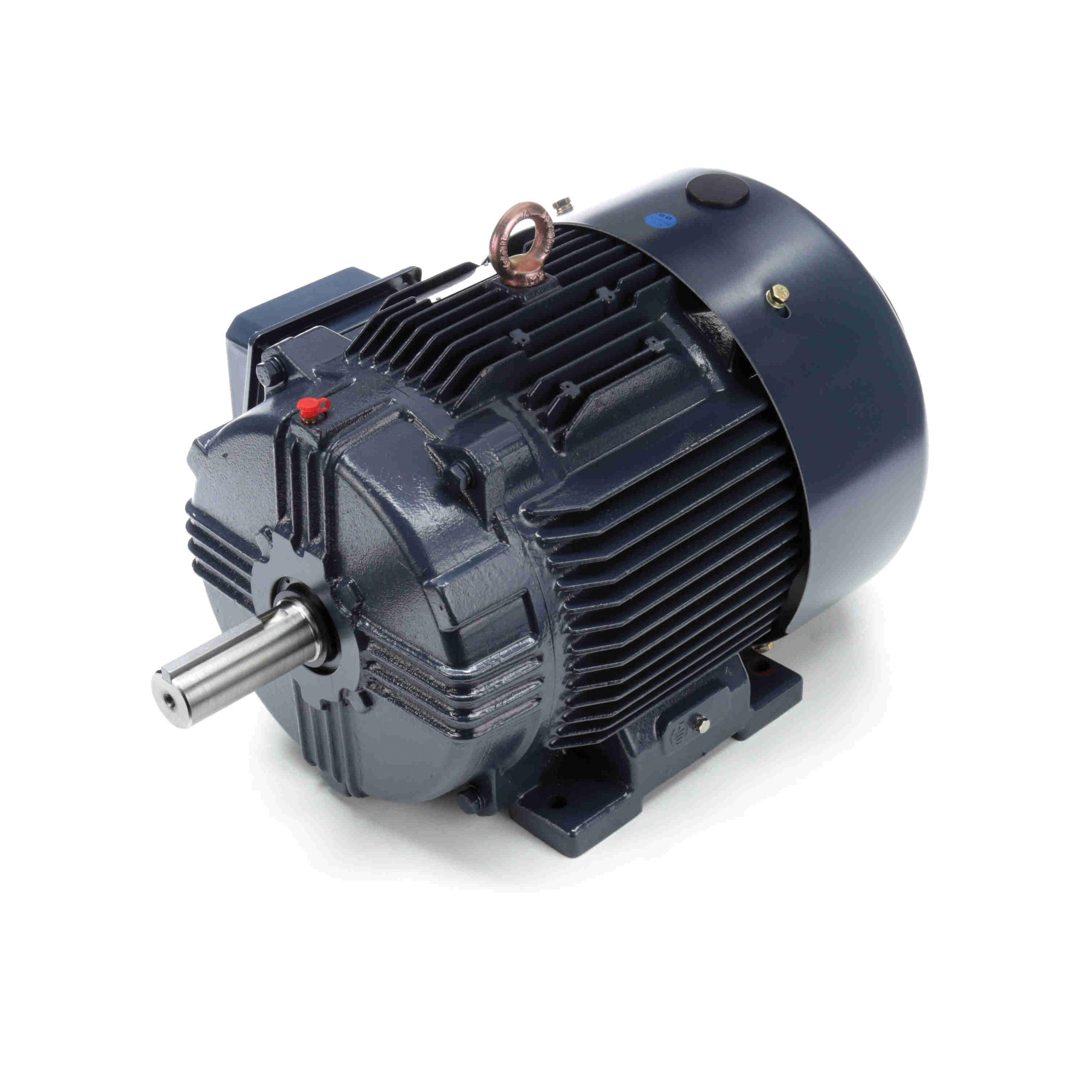

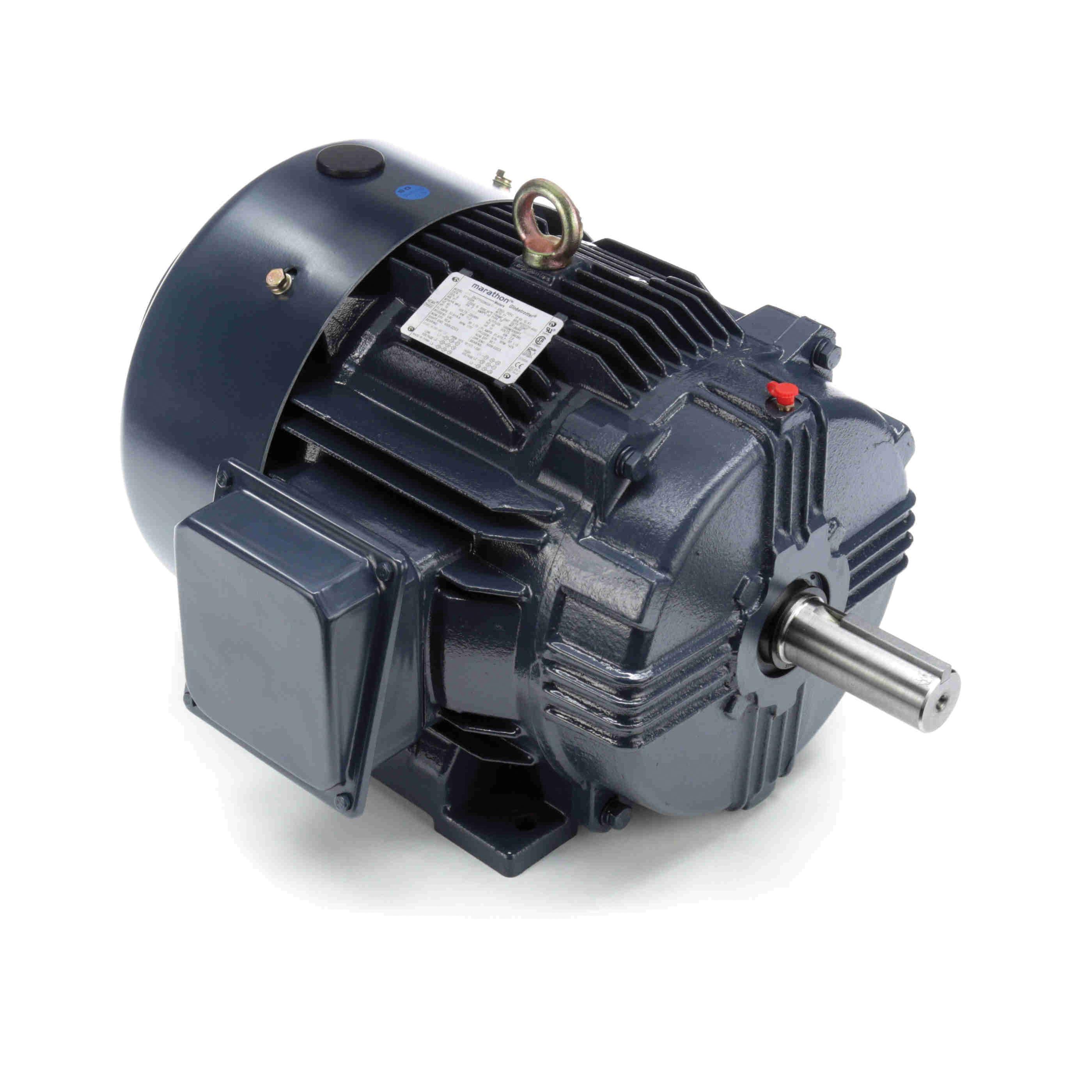

Marathon® Globetrotter® GT1022A General Purpose Motor, 208 to 230/460 V, 18.8/37.5 to 40 A, 15 hp, 1800 rpm Speed, 60 Hz
- Item ID: GT1022A
- Min. Order Qty: 1
- : 254TTFCD6026
- Item ID: GT1022A
- Brand: Marathon®
-
-
Marathon® General Purpose Motor, 208 to 230/460 V, 18.8/37.5 to 40 A, 15 hp, 1800 rpm, 11.2 kW, 3 ph Phase, 60 Hz, Totally Enclosed Fan Cooled Motor Enclosure, 254T Frame, 1-5/8 in Dia x 4 in L Shaft, CCW Rotation, 1 Speed, Ball Bearing, 4 Poles, Continuous, Line, Inverter Starting Method, Class F Insulation Class, NEMA Premium® Motor Efficiency Group, 92.4 % Efficiency, 1.15 Service Factor, 82 Power Factor, Rigid Base Mounting, Cast Iron, 40 deg C, 24.15 in L
- Hazardous-duty division 2, zone 2, class I, groups A, B, C, D, temperature code T2B
- IP55 enclosure on cast iron frames
- Inverter-duty 20:1 variable torque and 10:1 constant torque
- Standard assembly F1, reversible to F2 assembly
- Dual frame-mounting holes
- C-face addition may result in Non-NEMA BA dim
| Amperage Rating | : | 18.8/37.5 to 40 A |
| Bearing Type | : | Ball |
| Dimensions | : | 24.15 in L |
| Duty Type | : | Continuous |
| Efficiency | : | 92.4 % |
| Frame Size | : | 254T |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 15 hp |
| Insulation Class | : | Class F |
| Material | : | Cast Iron |
| Motor Efficiency Group | : | NEMA Premium® |
| Motor Enclosure Type | : | Totally Enclosed Fan Cooled |
| Mounting Type | : | Rigid Base |
| Number of Poles | : | 4 |
| Number of Speeds | : | 1 |
| Phase | : | 3 ph |
| Power Factor | : | 82 |
| Power Rating | : | 11.2 kW |
| Rotation Type | : | CCW |
| Service Factor | : | 1.15 |
| Shaft Size | : | 1-5/8 in Dia x 4 in L |
| Speed Rating | : | 1800 rpm |
| Starting Method | : | Line, Inverter |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 208 to 230/460 V |
