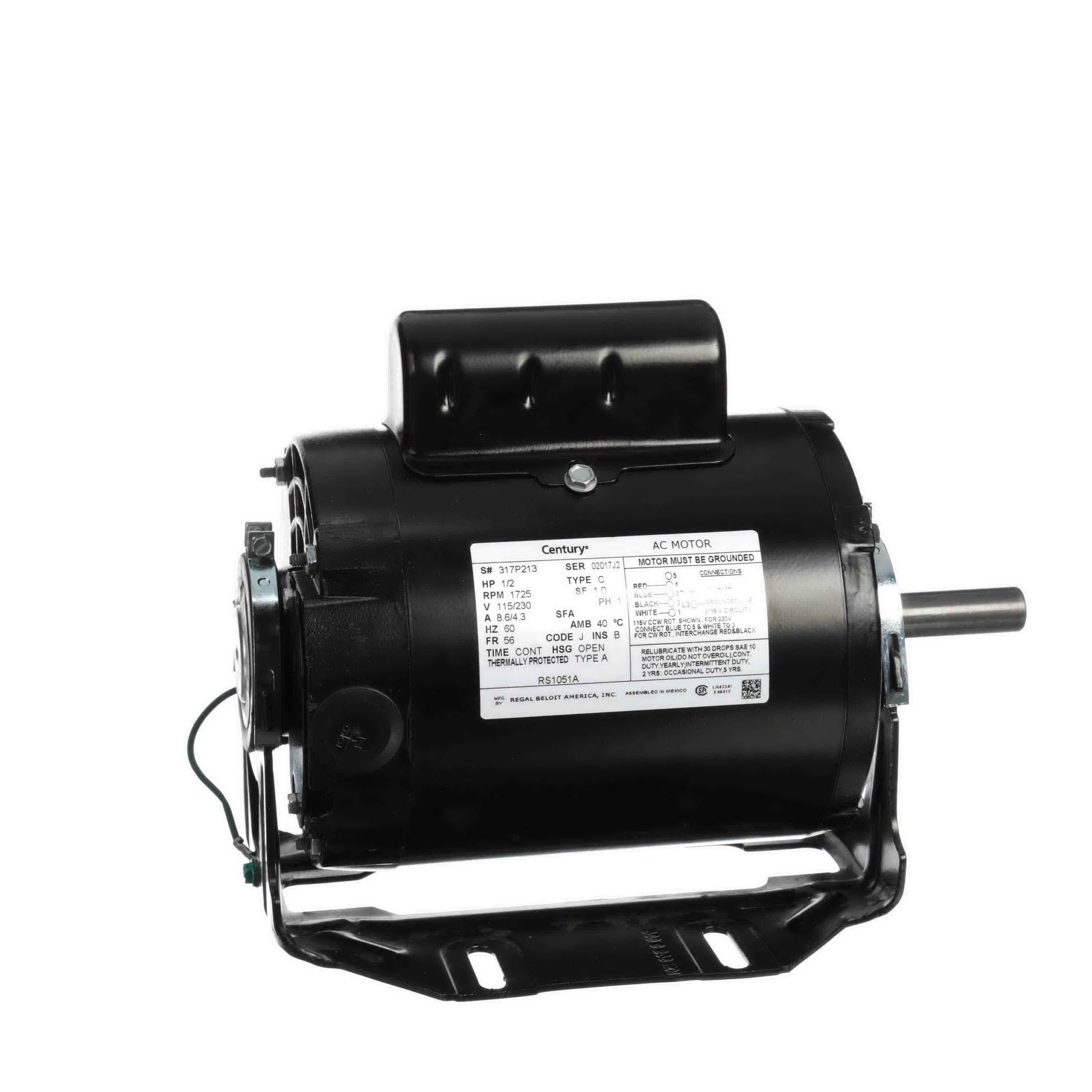

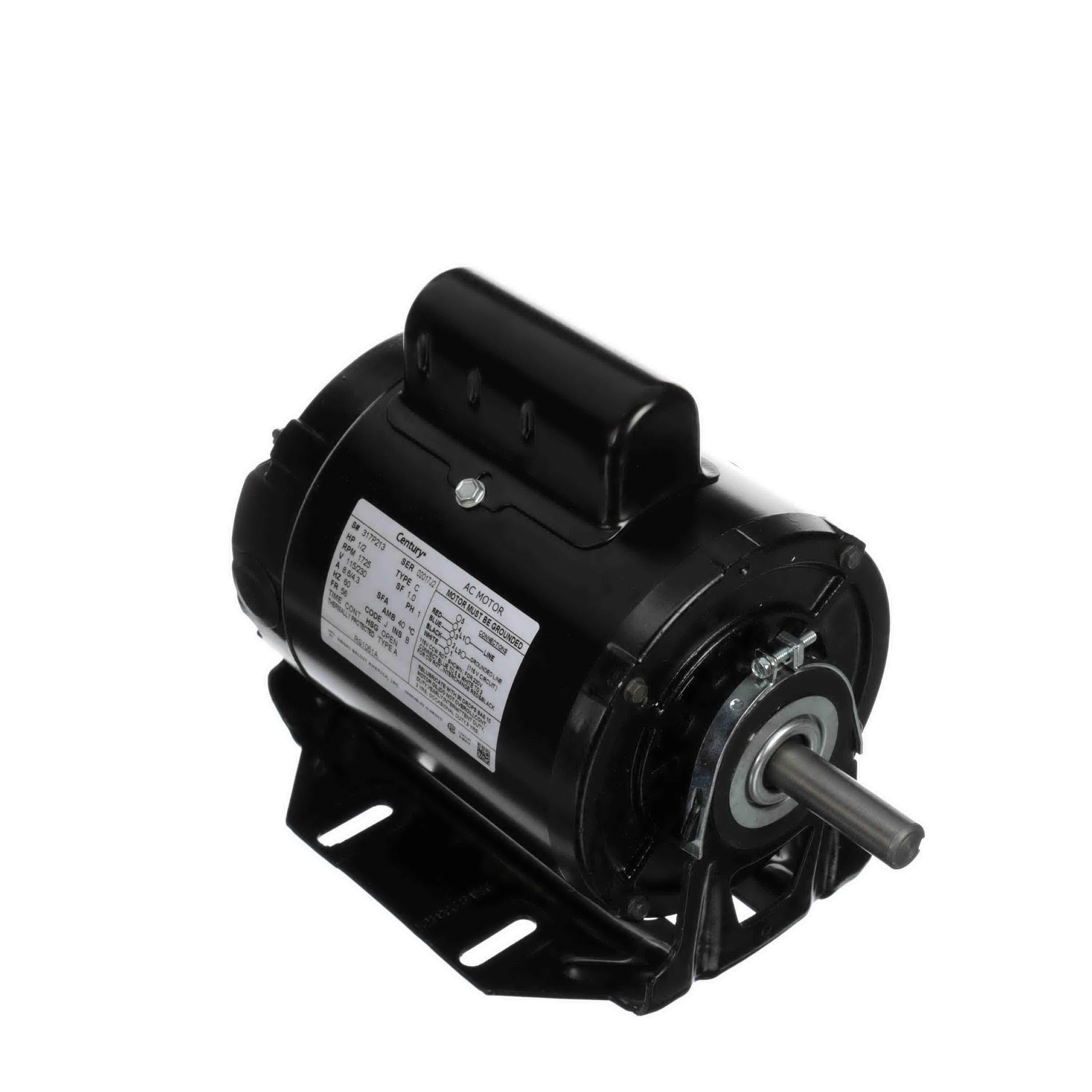

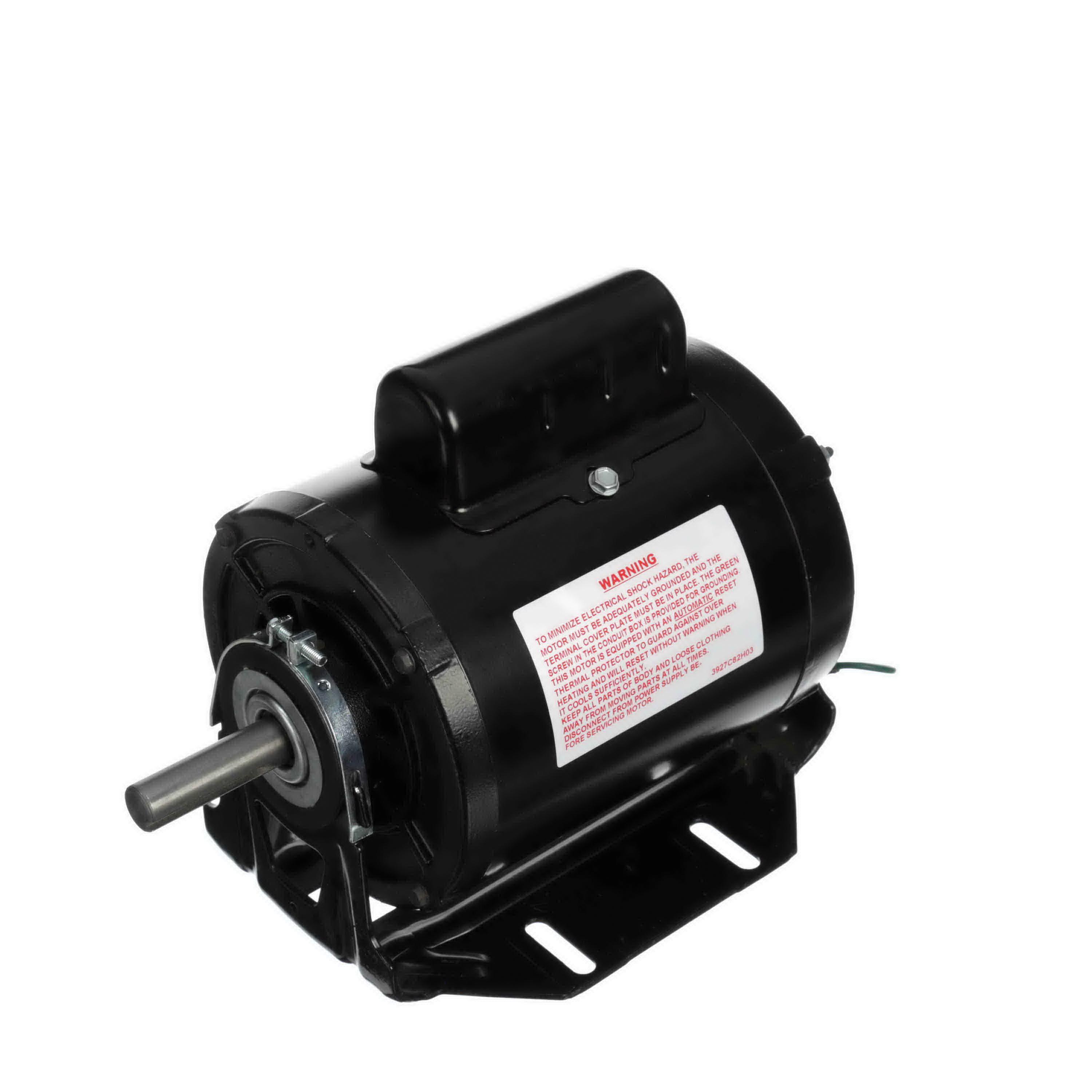

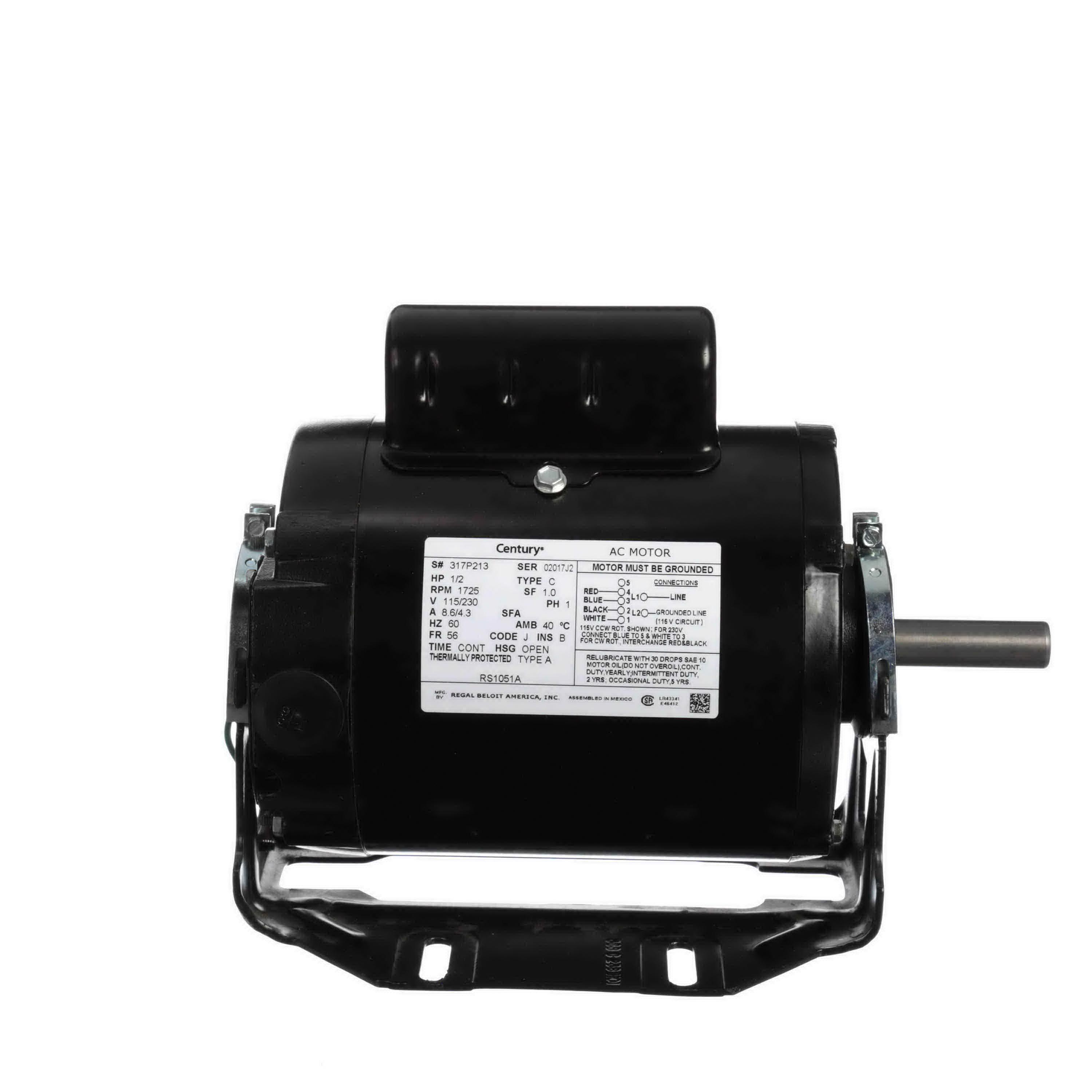

Century® RS1051A Fan and Blower HVAC/R Motor, 1/2 hp, 115/230 V, 60 Hz, 1 ph-Phase, 56 Frame, 1725 rpm Speed
- Item ID: RS1051A
- Min. Order Qty: 1
- Item ID: RS1051A
- Brand: Century®
-
-
Century® Fan and Blower HVAC/R Motor, 1/2 hp HP Rating, 115/230 V, 8.6 A, 60 Hz, 1 ph, 1725 rpm Speed Rating, 1 Speed, Open Enclosed, 56 Frame, 5/8 in Dia Shaft, Service Factor: 1, Sleeve Bearing, Resilient Base Mount, 40 deg C, Insulation Class: Class B, Steel Housing, Additional Information: 10.28 in L, 4-Pole
- Automatic reset thermal protector prevents overheating
- Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive
- Permanently lubricated, double sealed bearings extend the lifetime of the motor
- Ambient temperature up to 70 deg C allows for consistent operation in a range of environments and applications
- Vertical/horizontal mounting for proper placement of the fan within airflow
| Additional Information | : | 10.28 in L, 4-Pole |
| Amperage Rating | : | 8.6 A |
| Bearing Type | : | Sleeve |
| Enclosure Type | : | Open Enclosed |
| Frame | : | 56 |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1/2 hp |
| Housing Material | : | Steel |
| Insulation Class | : | Class B |
| Mounting Type | : | Resilient Base |
| Number of Speeds | : | 1 |
| Phase | : | 1 ph |
| Service Factor | : | 1 |
| Shaft Size | : | 5/8 in Dia |
| Speed Rating | : | 1725 rpm |
| Temperature Rating | : | 40 deg C |
| Voltage Rating | : | 115/230 V |
No documents
Century® RS1051A
