Intermatic® FM1STUZ-240U FM1STUZ-240U | Standard Supply

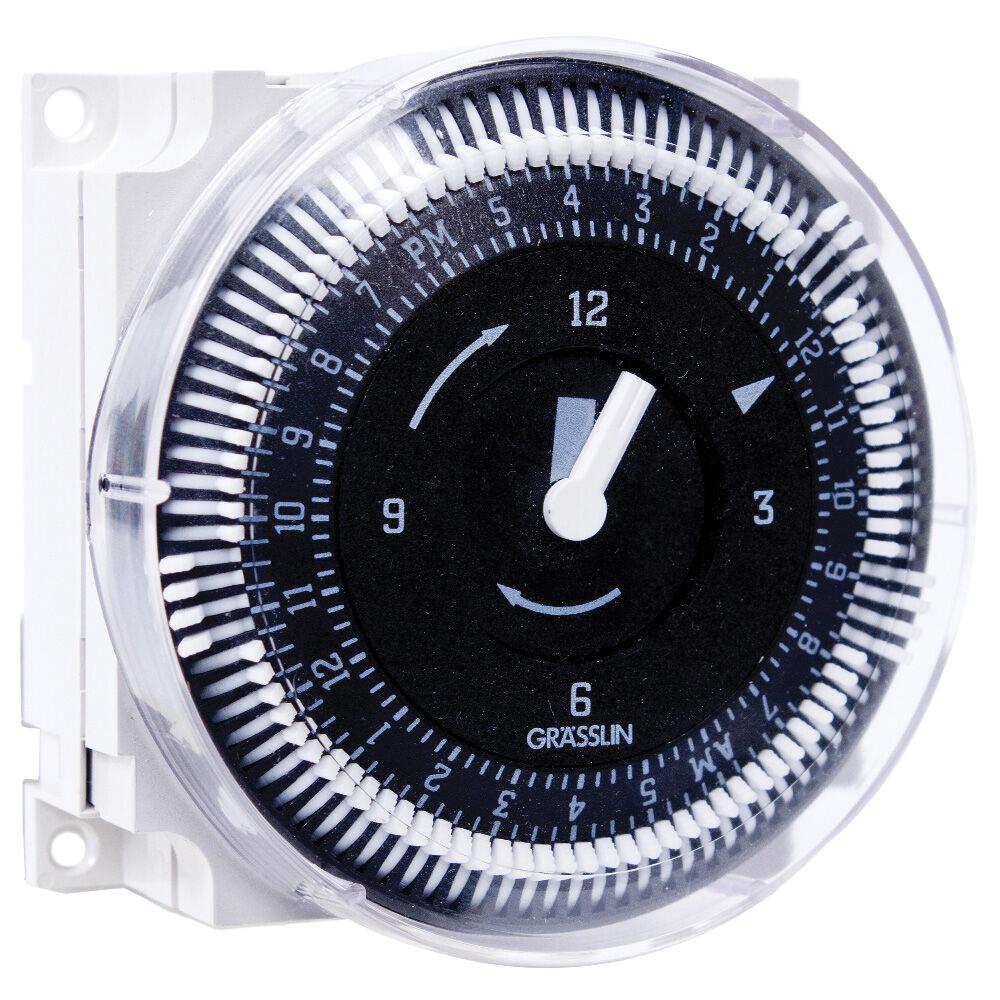

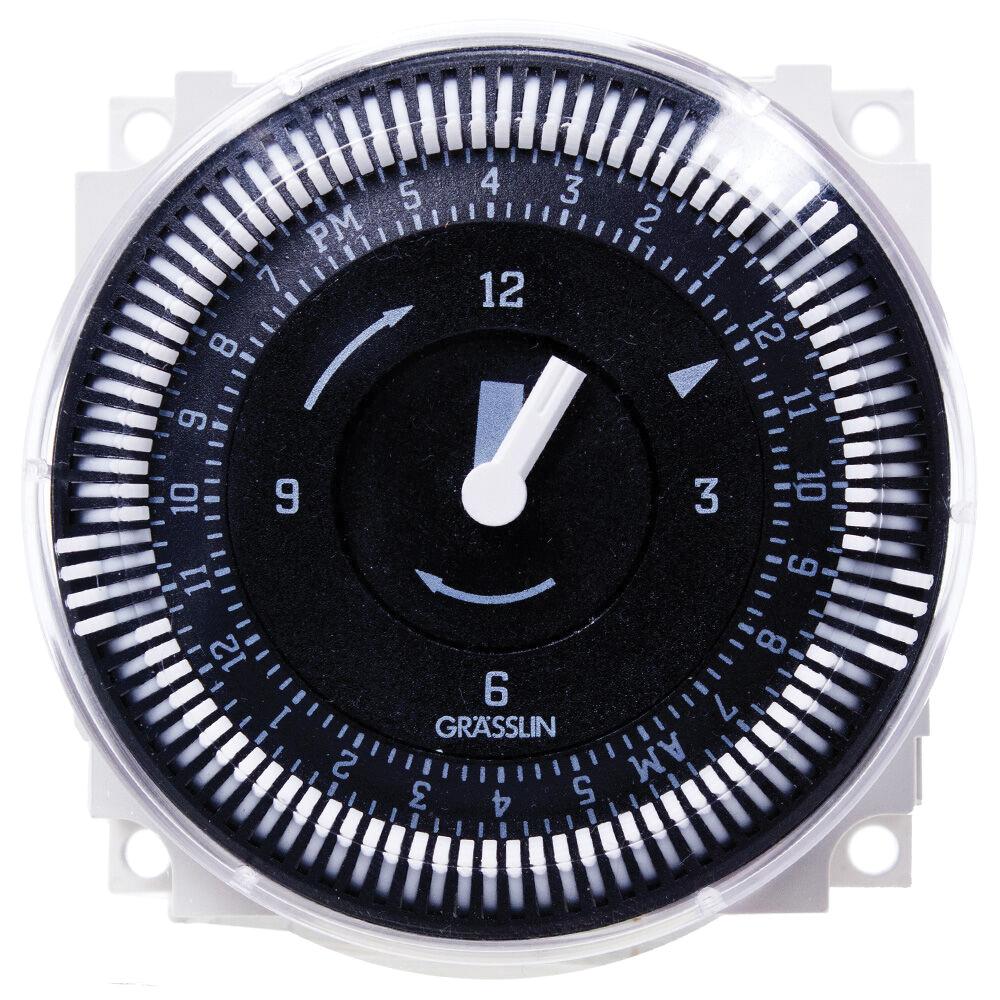

Intermatic® FM1STUZ-240U FM1 Timer Module, 240 VAC, 21 A, 60 Hz, 24 hr Timing, SPDT

  • Item ID: FM1STUZ-240U
  • Min. Order Qty: 1
  • Item ID: FM1STUZ-240U
  • Brand: Intermatic®
  • loading

Intermatic® FM1 Timer Module, 240 VAC, 21 A, 60 Hz, 1 hp, 2 hp, SPDT, 24 hr, Switch Rating: 1350 W at 120 VAC Tungsten, 21 A at 120 to 250 VAC Resistive, Panel Mount, Quick-Connect Terminal, -4 to 185 deg F, 60 mm H x 60 mm W x 32 mm D

  • They are a simple and low cost alternative for applications that do not require more than 21 A or 2 hp, 240 VAC
  • The FM1 is designed for 24 hr or 7 day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security or pump system
  • Seven days carry over battery backup
  • Noise-immune, ideal for robust applications
  • Synchronous drive or quartz drive Q models with self-recharging battery backup
  • True clock face, easy to set
  • 96 on/off per day
  • Clear plastic cover (DC-FME-A), sold separately below
  • 15 min minimum on/off time
  • Stand alone or with indoor/outdoor enclosure, sold separately
Amperage Rating      :      21 A
Contact Configuration      :      SPDT
Dimensions      :      60 mm H x 60 mm W x 32 mm D
Frequency Rating      :      60 Hz
Mounting Type      :      Panel
Power Rating      :      1 hp, 2 hp
Switch Rating      :      1350 W at 120 VAC Tungsten, 21 A at 120 to 250 VAC Resistive
Temperature Rating      :      -4 to 185 deg F
Terminal Type      :      Quick-Connect
Timing Range      :      24 hr
Voltage Rating      :      240 VAC
