Rheem® 47-21900-01 47-21900-01 | Standard Supply

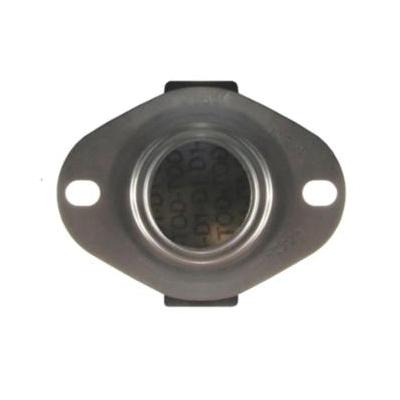

Rheem® 47-21900-01 General Purpose Limit Switch, 230 VAC, 25 A, SPST Switch

Rheem® 47-21900-01 47-21900-01
  • Item ID: 47-21900-01
  • Min. Order Qty: 1
  • Item ID: 47-21900-01
  • Brand: Rheem®
  • loading

Rheem® General Purpose Limit Switch, 230 VAC, 25 A, SPST Switch, NO, 1 Pole, 230 deg F Opening Temperature, -31 deg F Closing Temperature, 230 deg F, Quick-Connect Connection Type, 017 in Hole, Flanged Airstream Mount, 2 in L x 1.63 in W

Amperage Rating      :      25 A
Closing Temperature      :      -31 deg F
Connection Type      :      Quick-Connect
Contact Configuration      :      NO
Dimensions      :      2 in L x 1.63 in W
Hole Size      :      017 in
Mounting Type      :      Flanged Airstream
Number of Poles      :      1
Opening Temperature      :      230 deg F
Switch Type      :      SPST
Temperature Rating      :      230 deg F
Voltage Rating      :      230 VAC
