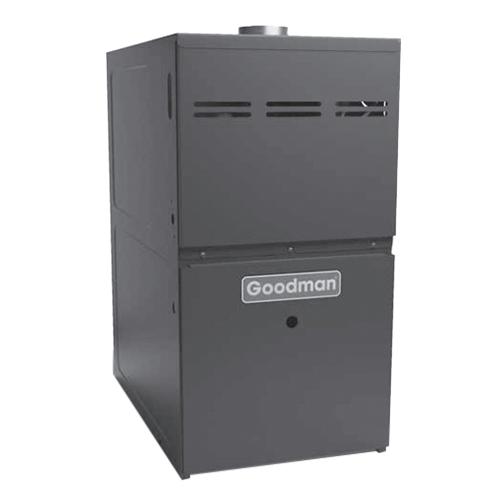

Goodman® GMS80403AN Gas Furnace, 40000 Btu/hr Input BTU, 115 VAC, 1200 cu-ft/min, 1/3 hp, 80% AFUE, Upflow/Horizontal
- Item ID: GMS80403AN
- Min. Order Qty: 1
- Item ID: GMS80403AN
- Brand: Goodman®
-
-
Goodman® Gas Furnace, GMS8 Model, 40000 Btu/hr Input BTU Rating, 115 VAC, 4.8 A, 1200 cu-ft/min, 1/3 hp, 80% AFUE, 1 -Phase, 60 Hz, Configuration: Upflow/Horizontal, 1/2 in FPT Connection, Natural Gas Fuel, 2 -Burner, 6 in W x 10 in Dia Blower Size, 14 in W x 33-3/8 in H x 28 in D Cabinet Dimensions, 4 in Dia Vent, 3 ton, Heavy Gauge Steel, Durable Baked Enamel, 25 - 55 deg F Rise
- Heavy-duty aluminized-steel, dual-diameter tubular heat exchanger
- Durable hot-surface igniter
- Quiet one-speed induced draft blower
- Self diagnostic control board
- Color-coded low voltage terminals
- Multi-speed blower motor
- Convenient left/right connection for gas and electrical service
- Foil faced insulated heat exchanger
- One stage gas valve
| AFUE Rating | : | 80 % |
| Amperage Rating | : | 4.8 A |
| Blower Size | : | 10 in Dia x 6 in W |
| CFM Rating | : | 1200 cfm |
| Cabinet Dimensions | : | 14 in W x 28 in D x 33-3/8 in H |
| Configuration | : | Upflow/Horizontal |
| Connection Type | : | 1/2 in FPT |
| Finish | : | Durable Baked Enamel |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| HP Rating | : | 1/3 hp |
| Input BTU Rating | : | 40000 Btu/hr |
| Material | : | Heavy Gauge Steel |
| Model | : | GMS8 |
| Number of Burners | : | 2 |
| Phase | : | 1 ph |
| Temperature Rise | : | 25 to 55 deg F |
| Tonnage | : | 3 ton |
| Vent Size | : | 4 in Dia |
| Voltage Rating | : | 115 VAC |
Goodman® GMS80403AN
